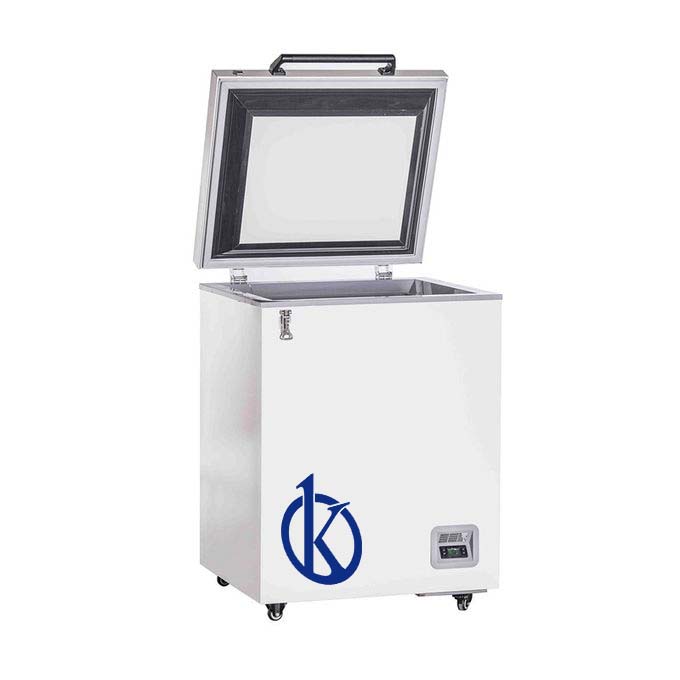

Stainless Steel Small Ultra Low Temperature Freezer YR05313

The YR05313 Ultra-Low Temperature Freezer is an efficient and reliable solution for the safe storage of biological samples in hospitals, laboratories, and research centers. With a capacity of 105 liters, this model is ideal for storing sensitive products that require extremely low temperatures. Its adjustable temperature range from -40°C to -86°C, with an accuracy of 0.1°C, allows for the optimal preservation of samples such as vaccines, blood plasma, and other biological products. Equipped with a high-quality CUBIGEL compressor and an optimized cascade cooling system, it offers rapid cooling speed with low energy consumption. Additionally, the high-brightness digital display allows for real-time monitoring of the internal temperature, ensuring precise control at all times.

Market Price

The YR05313 Freezer is offered at a mid-to-high price range, with prices ranging from $3850 to $3860 USD. This price is competitive considering its advanced features, such as precise temperature control, safety alarms, and the low energy footprint of the equipment. Its robust construction, high-quality materials, and reliability make it an excellent investment option for laboratories and hospitals that require high-precision conservation equipment.

Frequently Asked Questions

• Does this freezer maintain the temperature during a power outage? Yes, the YR05313 is equipped with a backup power system that ensures the alarm and temperature display continue functioning for up to 12 hours without external power.
• Is the temperature control system easy to use? Yes, the freezer features a high-brightness digital display and an easy-to-use temperature control system that allows for precise adjustments between -40°C and -86°C.
• Can this freezer be used for transporting biological products? Yes, although it is primarily designed for fixed storage, the YR05313 can be used to transport biological products as long as it is connected to a reliable power source, such as an AC/DC port.

Advantages and Disadvantages

Advantages

• Precise temperature control: Adjustable temperature between -40°C and -86°C with 0.1°C accuracy.
• Backup battery: The alarm system and temperature display function for up to 12 hours without electricity.
• Safety alarms: Visual and audible alarms for temperature variations, system malfunctions, and open doors.
• High-quality materials: Stainless steel for both interior and exterior, corrosion-resistant and easy to clean.
• Energy efficiency: Eco-friendly and non-flammable refrigerant ensures low energy consumption.

Disadvantages

• Price: It may be expensive for some organizations with limited budgets, though the advanced features justify the investment.
• Maintenance required: Regular preventive maintenance is needed to ensure efficient operation and prolong the freezer’s lifespan.

Product Use in the Field

The YR05313 is primarily used in research laboratories, hospitals, and blood banks, where the storage of biological products requiring ultra-low temperatures is crucial for their preservation. Its robust and efficient design makes it ideal for high-demand environments such as medical research centers, where the integrity of samples must be maintained with the utmost care.

Recommendations

To maximize the performance of the YR05313 Freezer, it is recommended to perform regular preventive maintenance. Frequently check the internal temperature and ensure the cooling system and temperature alarms are working properly. Additionally, make sure to keep the doors properly closed to avoid unnecessary thermal fluctuations. If you plan to use it for transporting biological products, ensure that it is connected to an appropriate power source and securely fastened during transit.

Technical Specifications

Model		YR05313
Specificaitons	Shelf/drawer QTY	/
	Cooling	Direct cooling
	Defrost	Manual
	Refrigerant	Mixed-gas
	Power Consumption(kWh/24h)	3.8
	Noise(db)	50
	Ambient temperature(℃)	10~32℃
	Temperature range(℃)	-40~-86℃
Cooling system	Compressor brand/QTY	CUBIGEL/1
	Sensor	PTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	500W
	Current(A)	2.9
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	105/3.70
	NT./GT.(kg)	63.7/68.5
	Exterior size(W*D*H)(mm)	680*580*935
	Interior size(W*D*H)(mm)	480*380*665
	Package size(W*D*H)(mm)	770*705*1090
	CBM	0.59
	20GP/40GP/40HQ	24/51/51
Frozen Racks	Racks	4(11X1,6X1)
	Boxes (2 Inches)	34
	Samples(2ml)	3400
Alarm	High/low temperature	Y
	Power failure	/
	Abnormal voltage	/
	Sensor error	Y
	Filter screen check	/
	Thermostat failure	Y
	Low battery	/
	Condenser clean	/
	High ambient temperature	/
	Door ajar	/
	Power failure backup system(alarm)	12h
Accessories	Castor	Y
	Inside door	/
	Test hole QTY/diameter	1/25MM
	USB port	/
	Chart recorder	/
	Data logger	Optional
	Remote alarm port	/
Optional	CO2 back up system	Optional
	LN2 back up system	Optional
Other	Certification	ISO.CE
