Description

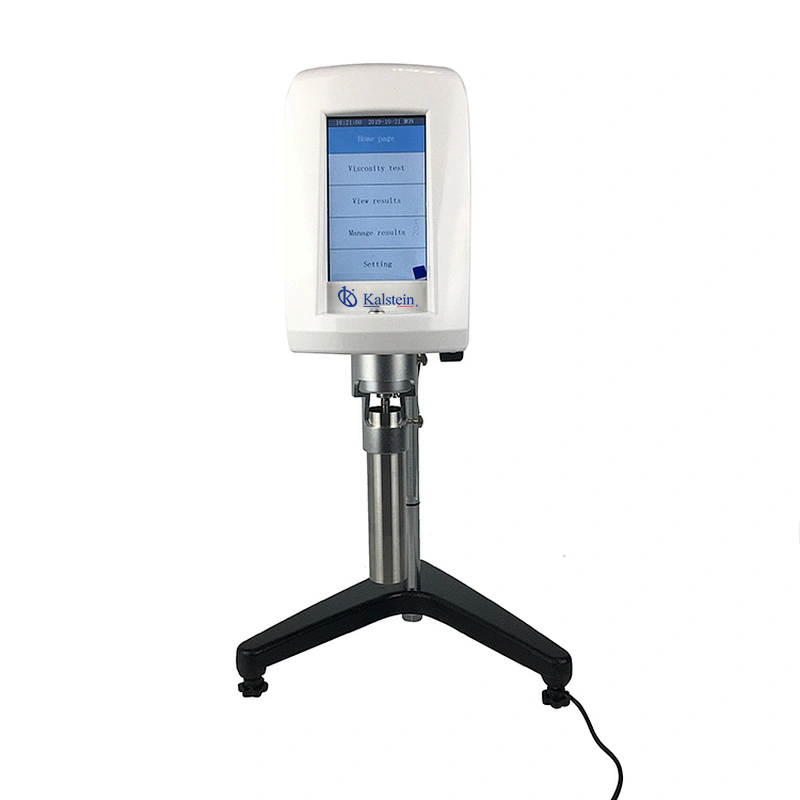

The Touch Screen Brookfield Viscometer YR05858 – YR05859 is an advanced device designed to offer precise viscosity measurements with the integration of modern touch-screen technology. Its five-inch color screen displays a wide range of parameters and working conditions clearly and intuitively. Ideal for high viscosity industries such as paint, cosmetics, ink, and food, this viscometer allows for step-less debugging and measures even super high viscosities with remarkable accuracy. The strong anti-interference performance and the ability to show shear rate and viscosity curves make it an indispensable tool for professionals in various fields.
Market Price
In the market, the typical price range for touch screen viscometers like the YR05858 – YR05859 spans from approximately $4,400 to $5,200 USD. This range reflects the advanced technology and capabilities these devices encompass, justifying the investment for laboratories and industries requiring reliable viscosity measurement solutions.
Frequently Asked Questions
Q: What industries benefit most from using the Touch Screen Brookfield Viscometer?
A: Industries such as paint, cosmetics, ink, pulp, food, and oil significantly benefit from the precise viscosity measurements provided by this viscometer.
Q: Does the viscometer support temperature measurements?
A: Yes, with an optional Pt100 temperature probe, the viscometer can accurately measure within a range of -20°C to 300°C.
Advantages and Disadvantages
Advantages: The viscometer’s built-in Linux system ensures seamless operation, while the graphical display offers a comprehensive overview of measurement data. The device’s precision and ability to handle a wide range of viscosities are noteworthy.
Disadvantages: The need for optional accessories may increase the total cost, and some users might require time to adapt to its full range of capabilities and features.
Product Usage in the Field
In practical scenarios, the Touch Screen Brookfield Viscometer is utilized to ensure quality control in production processes. Operators can quickly set test parameters, analyze data in real-time, and adjust formulations based on accurate viscosity measurements, enhancing product consistency and quality.
Recommendations
For optimal use, it is recommended to regularly calibrate the device and keep the touch screen clean to ensure precise measurements. Utilize the data output interface for comprehensive analysis and data archiving. Engage with the Kalstein Plus platform to request a quote or order directly.
Features
- Integration with ARM technology and Linux system for a user-friendly interface.
- Real-time display of comprehensive measurement data, including viscosity and shear rate curves.
- Capability to store up to 30 groups of test programs and data sets.
- Optional accessories to enhance measurement precision and range.
- Automatic rotor and speed recommendation based on the sample being tested.
Technical Specifications
| Model | YR05858 | YR05859 |
| Speed(r/min) | 0.3–100 infinitely variable speed, a total of 998 speed options | |
| Measuring Range | Rotor 1- 4: 10-2000000 mPa.s ULR: 1-1000 Rotor 18: 3 – 10000 Rotor 25: 480 – 1.60000000 Rotor 31: 30 – 100000 Rotor 34: 20 – 200000 |
Rotor 1-4: 10–6,000,000 mPa.s ULR: 1-6000 Rotor 18: 1.5 – 300,000 Rotor 25: 240 – 4.8,000,000 Rotor 31: 15 – 300,000 Rotor 34: 30 – 600,000 |
| Rotor | L1 – L4 (Standard) Enhanced ultra-low viscosity adapter ULR (optional) Small sample adapters (rotors 18,25,31,34)(optional) |
|
| Sample Dosage | Rotor 1- 4: 300 – 400ml ULR: 21ml Rotor 18：7ml Rotor 25: 9ml Rotor 31: 10.5ml Rotor 34:11ml( K = 1000; M = 1000000 ) |
|
| Measurement Error | ±1% (Newtonian liquid) | |
| Repetitive Error | ±0.5% (Newtonian liquid) | |
| Data output Interface | RS232*2pcs, temperature probe interface*1pc | |
| Power | 110V ~240V, 50Hz / 60Hz | |
| Dimension | 350 *350 *450mm | |
| Standard Accessory | Main machine, bracket and the base, rotor L1,L2,L3,L4, rotor protection frame, power adapter. | |
| Optional Accessory | Supper Ultra-low viscosity adapter ULR rotor, temperature sensor, thermostat bath, thermostat cup, printer, standard calibrate silicone oil (5.7mpa.s/336.1mpa,s/5220mpa.s), etc. | |
