Description

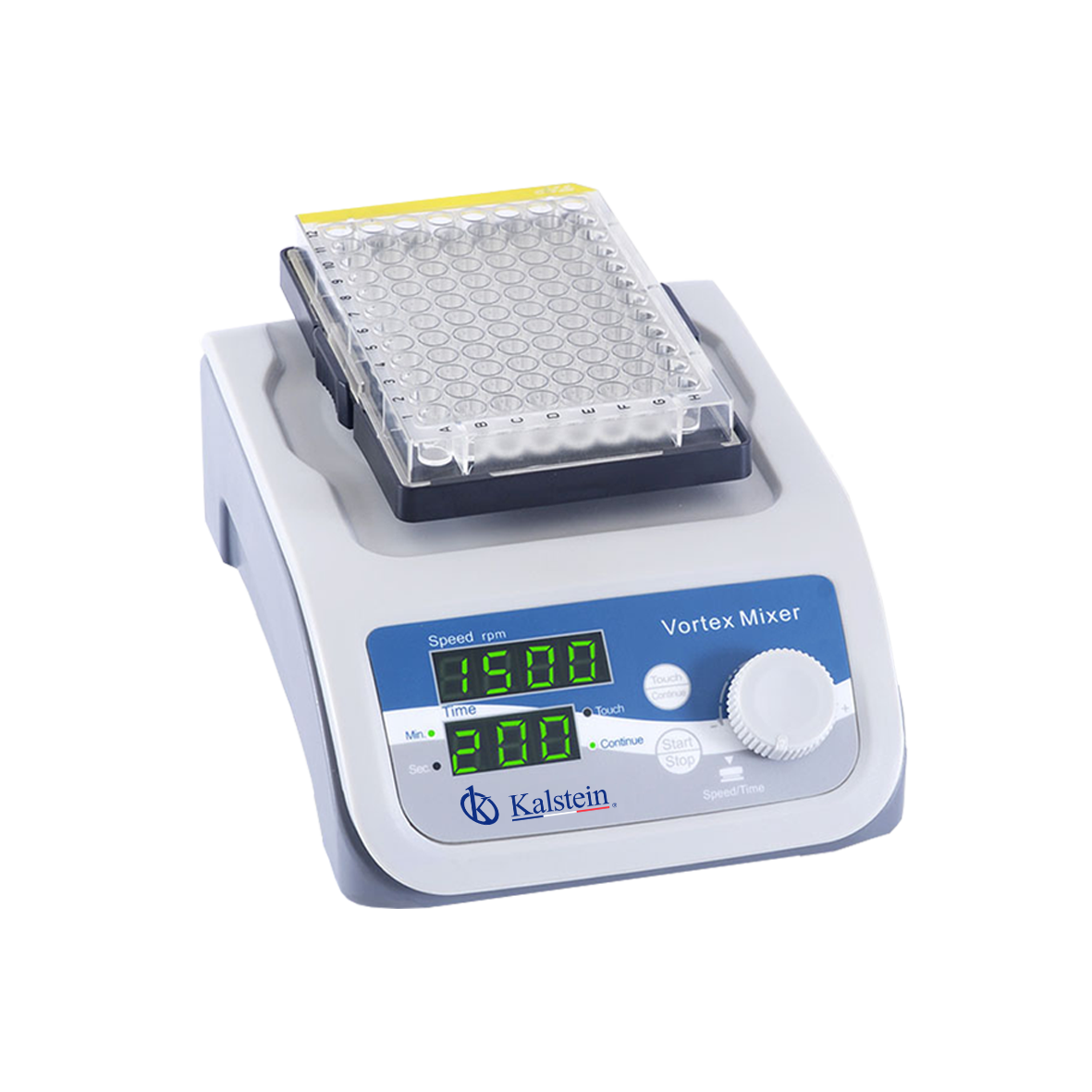

YR05761 plate vortex mixer is best solution for shaking 96 well micro plate and other small size testing tube, centrifuge tube and pcr strip, etc. Applications in cell and molecular biology, microbiology and immunology, etc.
Features
- Intelligent controller for speed and timer;
- Adopt permanent magnet rotor, with over-temperature protection, ensure long time working
- Brushless motor, noiseless and maintenance-free;
- Two operation mode “touching” and “continuous”, easy to switch
- Can automaticly identify various clamps quickly and ensure safe using;
Technical Specifications
| Model | YR05761 |
| Input Power | AC100-250V /50/60Hz |
| Outout Power | 18W |
| Drive Mode | DC24V brushless motor |
| Control Mode | PWM steolessly variable frequencv |
| Operation Mode | “jog”, “continuous” |
| Power Fuse | PPTC Resettable Fuses /no reolacement |
| Maximum Load | 1.5Kg |
| Speed Range | 0/200-3000r/min. |
| Oscillation Mode | Circumference |
| Circle diameter | 4.5mm |
| Fixture Identification function | Automatic identification/ Safe and efficient |
| Speed function /showing | Full digital / bright LED display |
| Timing function /showing | Soeed timing function /showing Digital timing 15-999min |
| DimensionlLxWxH) | countdown “jog”” timing / bright LED disolav |
| Weight | 198x138x67mm |
| The noise for Maximum speed | 4.1kg |
| Maximum acceleration | ≤3s |
| Maximum deceleration | ≤3s |
| Ambient temoerature / relative humidity |
5-40°C / 80 % |
| Protection grade | IP21 |
| Testing standard | EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2 |
