Description
Atomic absorption/emission spectroscopy, mass spectrum, TOC detection, environmental monitoring, biochip development, trace organic matter analysis
Product Features
- Colored touched screen, humanized operation interface make users completely monitor controller’s working status and real-time data.
- ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, self-priming door.
- Type U Korean quick-insert filters, used imported filtering materials.

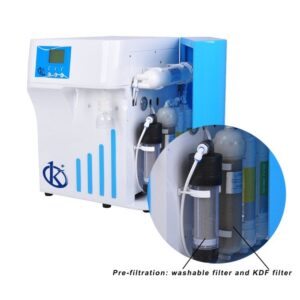

- Upgraded self-cleaning filter which with design of built-in 10’’ 10μm stainless steel filter mesh and silicone soft scraping, it can clean anytime, perfectly replace PP cotton filter, no need exchange.
- Long-acting KDF filter whose adsorption efficiency and lifetime are more than 10times as equal quantity activated carbon filter’s, this avoid frequent filter replacement.
- Imported UF ultra filtration column ensure meet request for removing pyrogen and RNA.
- Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.
- Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.
- Lifetime of PP cotton, activated carbon filter, RO membrane and ultra purification columns can be set to display the elapsed&rest time of consumables. Automatic reminder for filter replacement to avoid water quality decreasing.
- Feed water, RO and UP water three ways water quality sensor and five ways switches signal are accessed integrated, with functions of timing quantitative water taking.
- Equipped with USB Host interface, it supports data export function of historical alarm record and historical water intake record.Ø Low-voltage 24VDC is used as the main power supply, which meets the safety regulations and meets the requirements of humid environment, and will not cause personal injury.
- Can be with inner circulation system to ensure water quality keep at the highest level. ( optional)
Technical Specification
| Model | YR55 | YR55-1 | YR55-2 | YR55-3 |
| Inlet water source | Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C | |||
| Water flow speed | 1.5-2L/min ( with pressure barrel) | |||
| Machine capacity | 15 L/H | 15 L/H | 15 L/H | 15 L/H |
|
Output
Water quality |
RO water: Conductivity 1-5 μS/cm (ASTM type III water) | |||
| UP water: resistivity 18.25MΩ.cm@25°C (ASTM type I water) TOC: <3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/ml |
||||
| Total organic carbon (TOC) | <10 ppb | <3 ppb | ||
| Pyrogen (endotoxin) | N/A | < 0.001 Eu/ml | N/A | < 0.001 Eu/ml |
| Ribonuclease (RNases) | N/A | <1pg/ml | N/A | <1pg/ml |
| Deoxyribonucleases | N/A | <5pg/ml | N/A | <5pg/ml |
