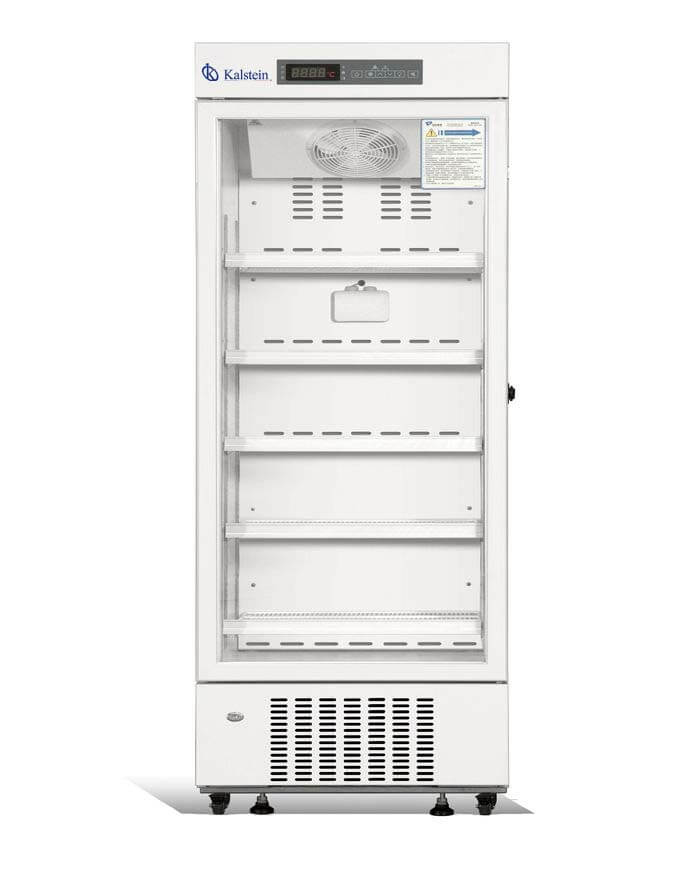

Understanding the Scientific Principles Behind the YR05289 Medical Pharmacy Refrigerator
The YR05289 medical pharmacy refrigerator represents a pinnacle in pharmaceutical storage technology, ensuring the secure preservation of vaccines and other sensitive medical products. This article delves into the scientific principles and operational fundamentals that underpin the design and functionality of this exceptional model, exploring how these elements come together to meet the high standards required in pharmaceutical environments.
Operational Principles of the YR05289
The YR05289 operates primarily through the principles of thermodynamics and refrigeration cycles. At its core, the refrigerator utilizes a vapor-compression refrigeration system, which consists of several key components that work harmoniously to maintain a stable internal temperature between 2 and 8 degrees Celsius.
The refrigeration cycle begins when the refrigerant, a substance with a low boiling point like R290, enters the compressor. The compressor increases the pressure of the refrigerant gas, raising its temperature in the process. This hot, high-pressure gas then travels through the condenser coils where it releases heat to the environment and condenses into a liquid state.
Once in liquid form, the refrigerant moves through an expansion valve, where it experiences a drop in pressure. This drop causes the refrigerant to cool significantly as it enters the evaporator coils located inside the refrigerator. In the evaporator, the refrigerant absorbs heat from the interior of the refrigerator, thus cooling the air within and preserving the products stored inside. This cycle repeats continuously to maintain the required temperature range.
Design Choices and Their Scientific Justifications
The YR05289 features a heated glass door, a significant design choice that directly impacts operational efficiency. Traditional glass doors can fog up due to condensation, which not only obstructs visibility but can also lead to temperature fluctuations each time the door is opened. By incorporating a heated glass door, the YR05289 effectively prevents condensation, ensuring that the internal conditions remain stable while allowing visibility into the cabinet.
Furthermore, the use of high-quality materials, specifically cold-rolled steel with antibacterial properties, is another strategic design element. Antibacterial surfaces are critical in medical environments to minimize contamination risks. The choice of materials also contributes to the refrigerator's durability and ease of cleaning, ensuring compliance with stringent health standards.
Temperature Consistency and Uniformity
One of the standout features of the YR05289 is its exceptional temperature uniformity. The refrigerator maintains a temperature consistency of +/- 3 degrees Celsius throughout its interior. This uniformity is crucial for pharmaceutical storage as it ensures that all products, regardless of their placement within the cabinet, are stored at safe temperatures. The scientific principle behind this is based on forced air circulation, which evenly distributes cold air, preventing hotspots and ensuring every vial of vaccine is kept within the optimal temperature range.
Technical Specifications of the YR05289
| Model | YR05289 |
|---|---|
| Cooling System | Forced Air |
| Temperature Range | 2-8°C |
| Refrigerant | R290 |
| Noise Level (dB) | 50 |
| Energy Consumption (kWh/24h) | 3.2 |
| Power (W) | 280W |
| Interior Material | Coated Steel |
| Exterior Material | Coated Steel |
| Capacity (L) | 416 |
| Dimensions (mm) | 782 x 552 x 1927 |
Frequently Asked Questions
What makes the YR05289 refrigerator suitable for pharmacy use?
The YR05289 is specifically designed with features such as precise temperature control, a heated glass door to prevent condensation, and high-quality antibacterial materials, making it ideal for storing pharmaceuticals and vaccines, which require strict temperature management.
How does the YR05289 ensure temperature consistency?
The YR05289 uses forced air circulation, which evenly distributes cold air throughout the interior. This design minimizes temperature fluctuations and ensures that all stored items maintain a consistent temperature, critical for preserving pharmaceuticals effectively.
What type of refrigerant does the YR05289 use and why?
The YR05289 utilizes R290 as its refrigerant. R290 is an environmentally friendly option with low global warming potential, making it a sustainable choice in line with modern environmental standards.
Can the YR05289 be used in varying ambient temperatures?
Yes, the YR05289 is designed to operate in ambient temperatures ranging from 10 to 32 degrees Celsius. This flexibility allows it to be deployed in diverse environments, provided proper ventilation is maintained.
How is the YR05289 maintained over time?
Regular cleaning of the interior and exterior surfaces is essential. Additionally, routine checks on the cooling system and temperature settings help ensure consistent performance over time. It's also advisable to monitor the refrigerant levels and inspect for any signs of wear or malfunction.
Does the YR05289 have a backup power feature?
Yes, the YR05289 is equipped with a backup feature that can maintain operation for up to 8 hours in the event of a power failure, ensuring that stored products remain safe and effective during unexpected outages.
How can I request a quote for the YR05289 refrigerator?
Interested customers can reach out to request a quote through our dedicated channels, ensuring they receive the best pricing and options available for the YR05289.
