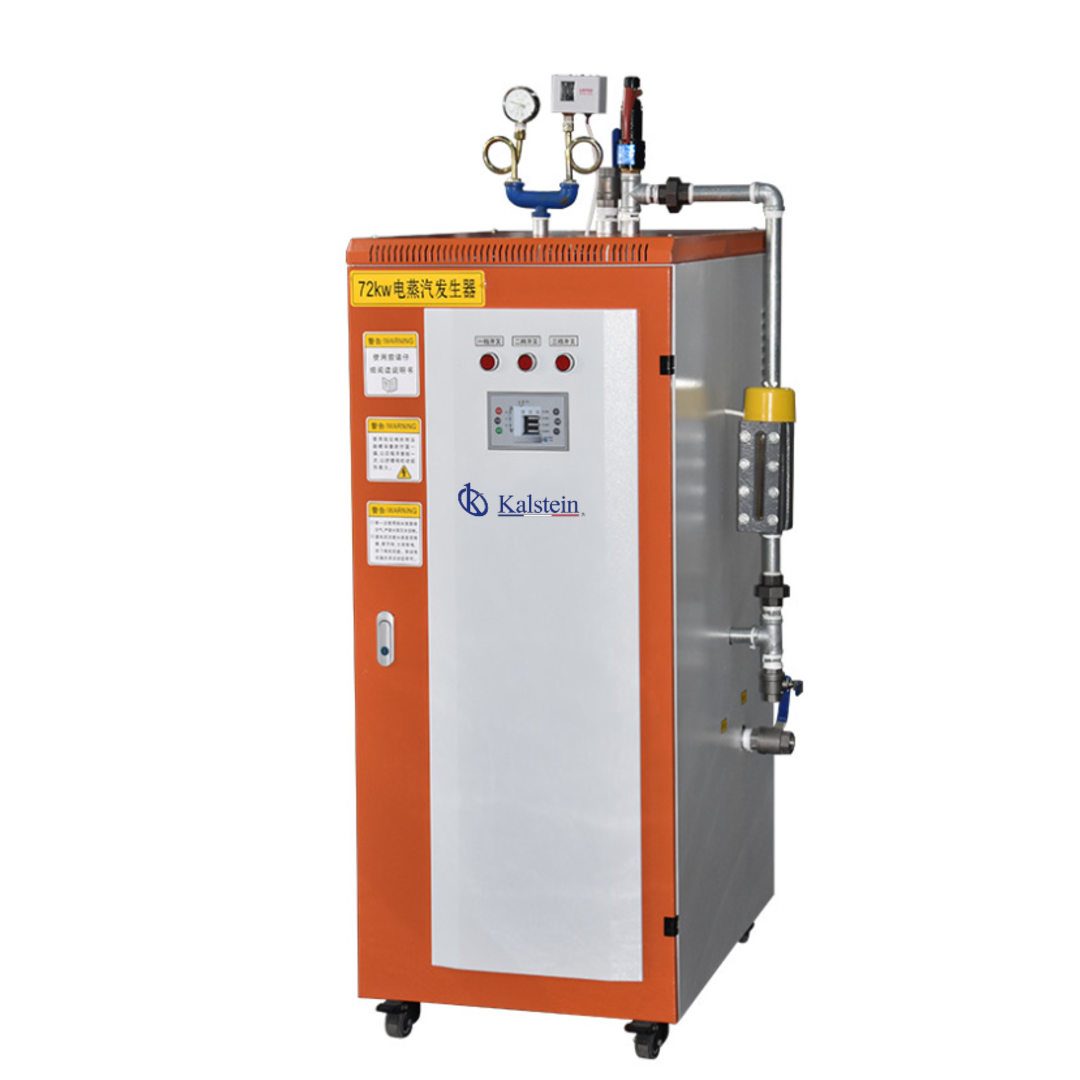

Site Requirements and Installation Conditions for the YR06672 Automatic Electric Steam Generator
The YR06672 Automatic Electric Steam Generator is a robust industrial solution designed for efficient steam generation under strict national standards. To ensure optimal performance and longevity of this equipment, understanding the environmental conditions and installation requirements is crucial.
Understanding the YR06672
The YR06672 is engineered for laboratories, pilot plants, and industrial processes that require precise thermal control. It utilizes electric heating technology to produce high-quality steam with minimal fluctuations. Its significant application areas include integration with rotary evaporators for chemical and pharmaceutical industries, and steam sterilization in clinical settings.
Technical Data Table for YR06672
Model | YR06672 |
Power (KW) | 48 |
Evaporation Capacity (KG) | 65 |
Design Temperature (°C) | 150 |
Voltage (V) | 380 |
Operation Pressure (Mpa) | 0.4 |
Water Volume (KG) | 28 |
Steam Pipe Diameter (mm) | DN15 |
Dimensions (cm) | 50 x 65 x 105 |
Gross Weight | 90 kg |
Manufacturing Standard | GB / T10393-2002 |
Steam Humidity | ≤ 2% |
Connection Type | Flange |
Environmental Conditions for Optimal Operation
The YR06672 will perform best under specific environmental conditions. These include maintaining the right temperature, humidity levels, and ensuring proper electrical supply. Below are the key conditions to consider:
Temperature Range
For the YR06672 to operate efficiently, the ambient temperature should be within 10°C to 40°C. This range is essential to prevent overheating and ensure stable function.
Humidity Levels
Excessive humidity can affect the performance of the YR06672. The ideal humidity level should not exceed 85%, as higher humidity may lead to electrical malfunctions and operational inconsistencies.
Electrical Supply
The YR06672 operates at a voltage of 380V. It requires a stable industrial electrical installation to ensure proper functioning. Fluctuations in voltage can lead to damage or inefficient operation.
Installation Requirements
Setting up the YR06672 involves several critical steps to maximize performance and safety:
Space and Clearance
Ensure that the installation area has adequate space. The generator needs a clear area of at least 1 meter around it for ventilation and maintenance access. The dimensions of the unit are 50 x 65 x 105 cm.
Anchoring and Leveling
Proper anchoring and leveling are essential. Use leveling feet to stabilize the unit and prevent vibrations that may affect its performance. Make sure the floor is strong enough to support the weight of 90 kg.
Drainage and Water Supply
A reliable water supply is crucial for the YR06672's operation. Ensure that the installation site has access to a water source capable of supplying the required water volume of 28 kg. Additionally, prepare a drainage system to handle condensate and prevent water accumulation around the unit.
Common Installation Mistakes
When installing the YR06672, operators should be aware of common pitfalls:
- Inadequate Power Supply: Ensure that the electrical system meets the required voltage and amperage specifications.
- Improper Ventilation: Lack of ventilation can lead to overheating. Always ensure sufficient airflow around the generator.
- Poor Alignment: Misalignment can cause mechanical strain and premature wear; always align pipes carefully.
Frequently Asked Questions
What are the site preparation requirements for the YR06672?
To prepare the site for the YR06672, ensure optimal temperature and humidity levels, provide reliable electrical supply, and ensure enough clearance and drainage facilities are in place.
How should I maintain the YR06672 after installation?
Regular maintenance involves checking the humidity separator, inspecting electrical connections, and ensuring proper cleaning of water supply lines to prevent blockages.
What kind of electrical systems are compatible with the YR06672?
The YR06672 requires a three-phase electrical supply with a consistent voltage of 380V. It is essential to consult an electrician to ensure compatibility.
Can the YR06672 be used in humid environments?
While the YR06672 can function in humid environments, it is crucial to maintain humidity levels below 85% to avoid operational issues.
What are the implications of improper installation?
Improper installation can lead to malfunction, reduced efficiency, or even damage to the unit. Following installation guidelines is vital.
Is regular calibration necessary for the YR06672?
Yes, regular calibration is essential to ensure accurate steam production and system performance, particularly in critical applications.
Where can I find spare parts for the YR06672?
Spare parts can typically be acquired through authorized distributors or directly through manufacturers specializing in laboratory equipment.
