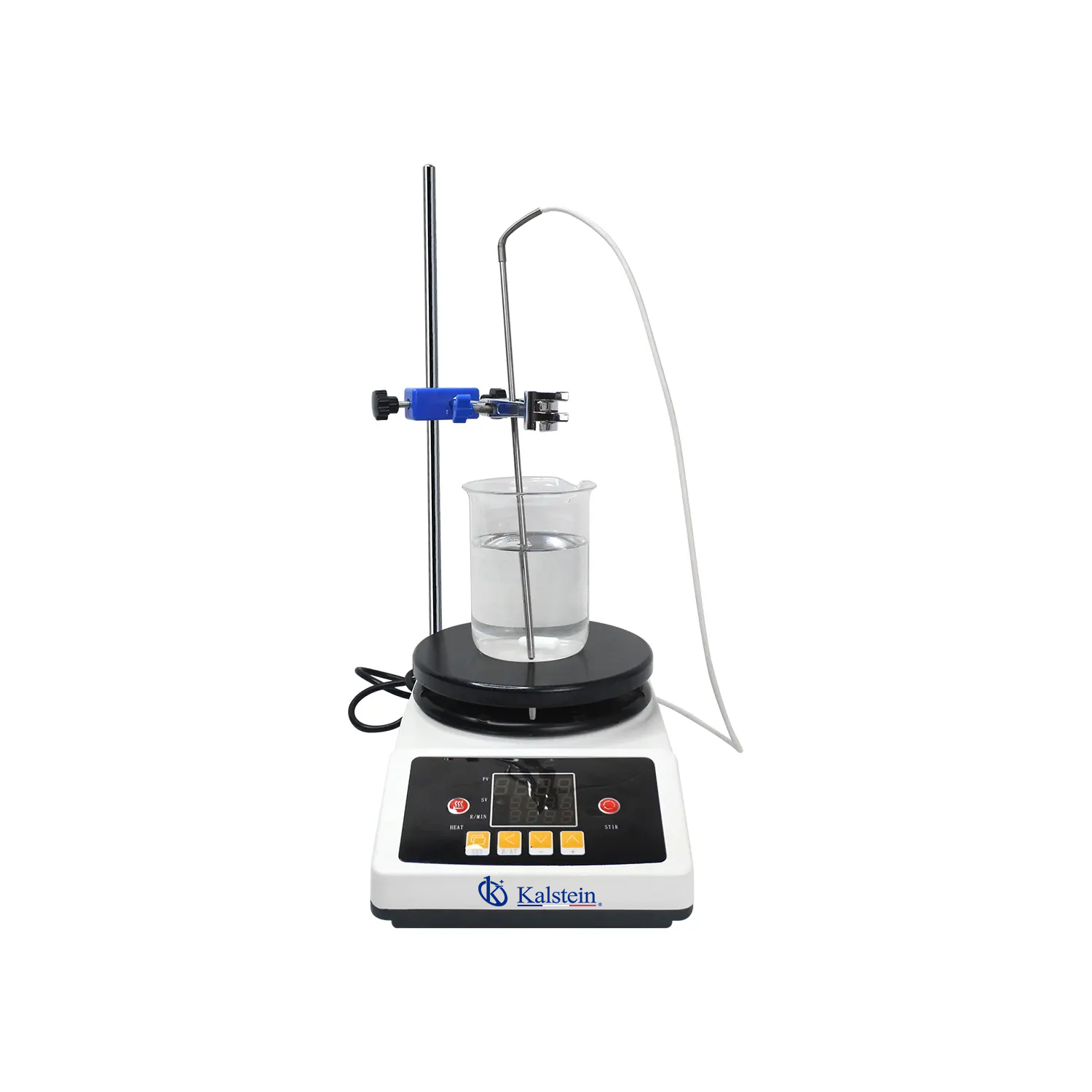

Understanding the YR02948 Intelligent Digital Display Ceramic Hotplate Stirrer: A Technical Glossary
The YR02948 Intelligent Digital Display Ceramic Hotplate stirrer is a sophisticated piece of laboratory equipment designed to address a variety of mixing and heating needs in chemical and biological applications. This article provides a comprehensive technical glossary that defines the key terminology associated with the YR02948, ensuring users can maximize its potential and operate it effectively.
Product Overview
The YR02948 is a multiposition intelligent stirrer that incorporates advanced digital technology for precise temperature control and stirring speed. This section outlines its features, specifications, and typical applications.
Technical Specifications of the YR02948
| Specification | Details |
|---|---|
| Model | YR02948 |
| Top Plate Material | Ceramic White |
| Speed Accuracy | ± 1 rpm |
| Ceramic Plate Dimensions per Position | 180 × 180 mm |
| Continuous Working Time | Yes |
| Positions | 2 |
| Speed Display | Digital Display |
| Temperature Range per Position | Ambient to 400 degrees Celsius |
| Temperature Accuracy | ± 1 degree Celsius |
| Temperature Control | PID Control |
| External Thermostat | Measures and controls liquid temperature |
| Internal Thermostat | Controls and measures the hotplate's temperature |
| Motor Power per Position | 8W DC14V |
| Product Power per Position | 410W |
| Stirring Capacity per Position | 2000 mL |
| Housing Material | Fine Metal |
| Net Weight (KG) | 10 |
Key Terminology
Understanding the terminology related to the YR02948 can greatly enhance your operation and troubleshooting skills. Below is a glossary of essential terms:
| Term | Definition |
|---|---|
| PID Control | A control loop mechanism that calculates an error value as the difference between a desired setpoint and a measured process variable. |
| Ceramic Plate | A durable and corrosion-resistant material providing even heat distribution during the heating process. |
| Stirring Capacity | The maximum volume of liquid that can be effectively stirred and heated by the YR02948. |
| Digital Display | A screen that shows important operational parameters such as speed and temperature for easy monitoring. |
| External Thermostat | A sensor located outside the stirring device that measures the temperature of the liquid being heated. |
| Internal Thermostat | A sensor that regulates the temperature of the hotplate by monitoring its internal temperature. |
| Speed Accuracy | The precision with which the stirrer can maintain the desired stirring speed. |
| Continuous Working Time | The duration for which the device can operate without interruption. |
| Motor Power | The power output of the motor driving the stirring mechanism. |
| Fine Metal Housing | The material used for the body of the hotplate, providing strength and resistance to wear and tear. |
Frequently Asked Questions
What is the maximum temperature the YR02948 can reach?
The YR02948 can reach a maximum temperature of 400 degrees Celsius, making it suitable for a variety of heating applications in the lab.
How precise is the stirring speed of the YR02948?
The stirring speed of the YR02948 has an accuracy of ± 1 rpm, ensuring reliable mixing performance.
What materials are used in the construction of the YR02948?
The YR02948 features a ceramic top plate for even heat distribution and a fine metal housing for durability.
Can the YR02948 operate continuously?
Yes, the YR02948 is designed for continuous operation, making it ideal for long-term experiments or processes.
How do I troubleshoot common issues with the YR02948?
Common troubleshooting steps involve checking the power supply, ensuring adequate ventilation, and verifying that the temperature settings are correctly configured.
Is the YR02948 suitable for high-viscosity liquids?
The YR02948 is capable of stirring high-viscosity liquids up to its specified stirring capacity of 2000 mL, depending on the viscosity and other factors.
What should I do if the digital display shows an error code?
If an error code appears on the digital display, consult the user manual for specific troubleshooting steps. Common solutions include resetting the device or checking for proper connections.
