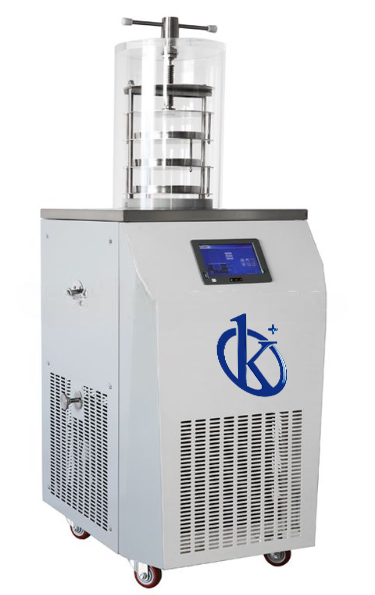

Technical Glossary and Key Terminology for the YR05199 Freeze Dryer
The YR05199 Vertical Electric Heating Laboratory Freeze Dryer is a sophisticated piece of equipment widely used in medicine, pharmacy, biological research, chemistry, and food preservation. This article aims to provide a comprehensive technical glossary and key terminology related to the YR05199, helping operators and technicians enhance their understanding and efficient use of this freeze dryer.
Understanding the YR05199 Freeze Dryer
The YR05199 Freeze Dryer utilizes a vacuum to remove moisture from materials, allowing for long-term storage without compromising the original biochemical characteristics. It offers features such as a 7-inch touchscreen interface, an electric heating system, and a large opening siphon for pre-freezing purposes, making it suitable for routine freeze-drying processes in laboratory environments.
Technical Specifications of the YR05199
| Specification | Details |
|---|---|
| Model | YR05199 |
| Freeze-drying Area | 0.09m² |
| Tray Material | Ф200mm, 3 layers |
| Storage Temperature | -40 ~ +60°C |
| Cold Trap Temperature | ≤ 60 °C (no load) |
| Water Collection Capacity | 6 kg/24h |
| Ultimate Vacuum | ≤ 5pa (no load) |
| Power | 1800w |
| Dimensions | 630×580×1455mm |
Key Terminology Related to the YR05199
| Term | Definition |
|---|---|
| Lyophilization | A freeze-drying process that involves the removal of water from a material after it is frozen, reducing the temperature to preserve its properties. |
| Vacuum | A space devoid of matter, which helps facilitate the freeze-drying process by lowering the boiling point of water. |
| Cold Trap | A component that captures and condenses vapors during the lyophilization process, preventing moisture from reaching the vacuum pump. |
| Pre-freezing | The initial freezing of the sample before the drying cycle begins, crucial for optimal lyophilization. |
| Touchscreen Interface | An interactive display allowing users to operate the freeze dryer efficiently, adjusting settings and monitoring processes. |
| Heating System | A method to control the temperature during the drying phase to ensure effective sublimation of ice. |
Frequently Asked Questions
What types of materials can be processed using the YR05199 Freeze Dryer?
The YR05199 can process a variety of materials including pharmaceuticals, biological samples, and food products, ensuring preservation of their biochemical properties.
How does the vacuum feature benefit the freeze-drying process?
The vacuum feature lowers the boiling point of water, allowing for the effective removal of moisture at lower temperatures, preventing damage to sensitive materials.
What is the importance of the cold trap in the YR05199?
The cold trap is essential for collecting moisture that evaporates during the freeze-drying process, protecting the vacuum pump and ensuring efficient operation.
How should the YR05199 be maintained for optimal performance?
Regular maintenance should include cleaning the cold trap, checking seals, and ensuring the vacuum pump is functional to maintain effective operation.
What is the recommended procedure for starting a freeze-drying cycle with the YR05199?
The procedure involves preparing the materials, ensuring they are placed correctly in the trays, setting the appropriate parameters on the touchscreen, and initiating the cycle.
Are there any common troubleshooting tips for the YR05199?
Common troubleshooting includes checking for error codes on the display, ensuring the power supply is stable, and inspecting the vacuum connections for leaks.
Where can I find replacement parts for the YR05199 Freeze Dryer?
Replacement parts for the YR05199 can be obtained from authorized suppliers or directly through the Kalstein catalog, ensuring compatibility with the model.
