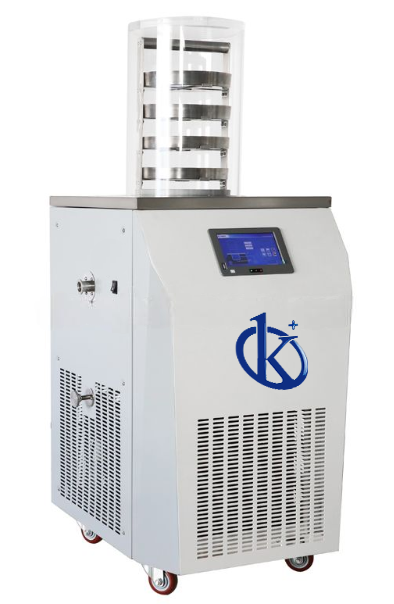

Troubleshooting Common Errors by Symptoms for the YR05194 Freeze Dryer
The YR05194 vertical normal laboratory freeze dryer is a crucial piece of equipment in various fields such as medicine, pharmacy, biological research, chemistry, and food preservation. However, like any sophisticated machinery, it can encounter issues that may disrupt its operation. Understanding these common errors and their symptoms is vital for effective troubleshooting to maintain productivity and ensure the longevity of the equipment. This article will provide a comprehensive guide to troubleshooting the YR05194 freeze dryer, focusing on symptoms, probable causes, and their respective solutions.
Technical Specifications of YR05194
| Specification | Details |
|---|---|
| Model | YR05194 |
| Freeze-Drying Area | 0.18m² / 0.27m² |
| Material Panel (Thickness) | 10 mm |
| Tray Material | Ф240mm, 4/6 layers |
| Distance Between Material Plates | 70 mm |
| Cold Trap Temperature | ≤ -56 °C (no load), optional ≤ -80 °C (no load) |
| Water Collection Capacity | 6 kg/24h |
| Ultimate Vacuum | ≤ 5pa (no load) |
| Power | 1400 W |
| Host Weight | 105 KG |
| Dimensions | 630×580×1415mm |
Common Symptoms and Troubleshooting Guide
This section will outline frequent symptoms encountered while operating the YR05194, along with probable causes and solutions.
Equipment Does Not Power On
If the YR05194 does not power on, consider the following probable causes:
- Power supply issues
- Faulty power cord
- Internal fuse blown
Solutions:
- Check the power outlet and ensure it is functioning properly.
- Inspect the power cord for any signs of damage.
- Replace the internal fuse if it has blown.
Error Code E-03
Error code E-03 may indicate a temperature anomaly in the freeze dryer:
- Cold trap overheating
- Insufficient cooling liquid
- Faulty temperature sensor
Solutions:
- Ensure the cooling liquid is at the appropriate level.
- Check the cold trap for any blockages that may impede airflow.
- Replace the temperature sensor if damaged.
Inconsistent Vacuum Levels
Inconsistent vacuum levels can affect the freeze-drying process:
- Leaking seals
- Pump failure
- Incorrectly set vacuum parameters
Solutions:
- Inspect all seals for signs of wear or damage.
- Test the vacuum pump for proper operation.
- Review and adjust the vacuum settings as needed.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power supply issues | Check outlet and power cord. |
| Error Code E-03 | Temperature anomaly | Check cooling liquid and replace sensor. |
| Inconsistent Vacuum Levels | Leaking seals | Inspect and replace seals as necessary. |
Best Practices for Maintenance and Troubleshooting
Regular maintenance is essential to prevent issues with the YR05194 freeze dryer. Here are some best practices:
- Conduct routine checks on electrical connections.
- Regularly clean the cold trap and other components.
- Keep the unit in a temperature and humidity-controlled environment.
Frequently Asked Questions
What are the common error codes for the YR05194 freeze dryer?
The YR05194 may display multiple error codes such as E-01, E-02, and E-03, each indicating different types of issues ranging from power supply problems to temperature anomalies.
How can I reset the YR05194 after resolving an error?
To reset the YR05194 after addressing an error, simply turn off the unit for a few minutes and then power it back on. This will allow the system to reset and clear any error messages.
What should I do if the freeze dryer is making unusual noises?
If the freeze dryer is making unusual noises, check for loose components, foreign objects in the chamber, or malfunctioning motors. Addressing these issues promptly can prevent further damage.
Can I operate the YR05194 in high humidity conditions?
It is recommended to operate the YR05194 in a controlled environment with low humidity to ensure optimal performance and avoid any moisture-related issues during the freeze-drying process.
How often should I perform maintenance on the YR05194?
Regular maintenance on the YR05194 should be performed at least once a month, including checking seals, cleaning the cold trap, and ensuring that all components are functioning correctly.
What is the warranty on the YR05194 freeze dryer?
The YR05194 typically comes with a warranty period of one year, covering manufacturing defects and parts failure under normal operating conditions.
How can I request a quote for the YR05194 freeze dryer?
You can request a quote for the YR05194 freeze dryer through our sales team, who will be happy to assist you with pricing and availability.
