Troubleshooting Common Issues with the YR02934 Analog Ceramic Top Hotplate Stirrer
The YR02934 Analog Ceramic Top Hotplate Stirrer is a compact and efficient device often used in laboratory settings for mixing and heating solutions. Despite its robust design, users may encounter issues that require troubleshooting. This guide provides a comprehensive look at common symptoms, probable causes, and solutions to keep your YR02934 operating smoothly.

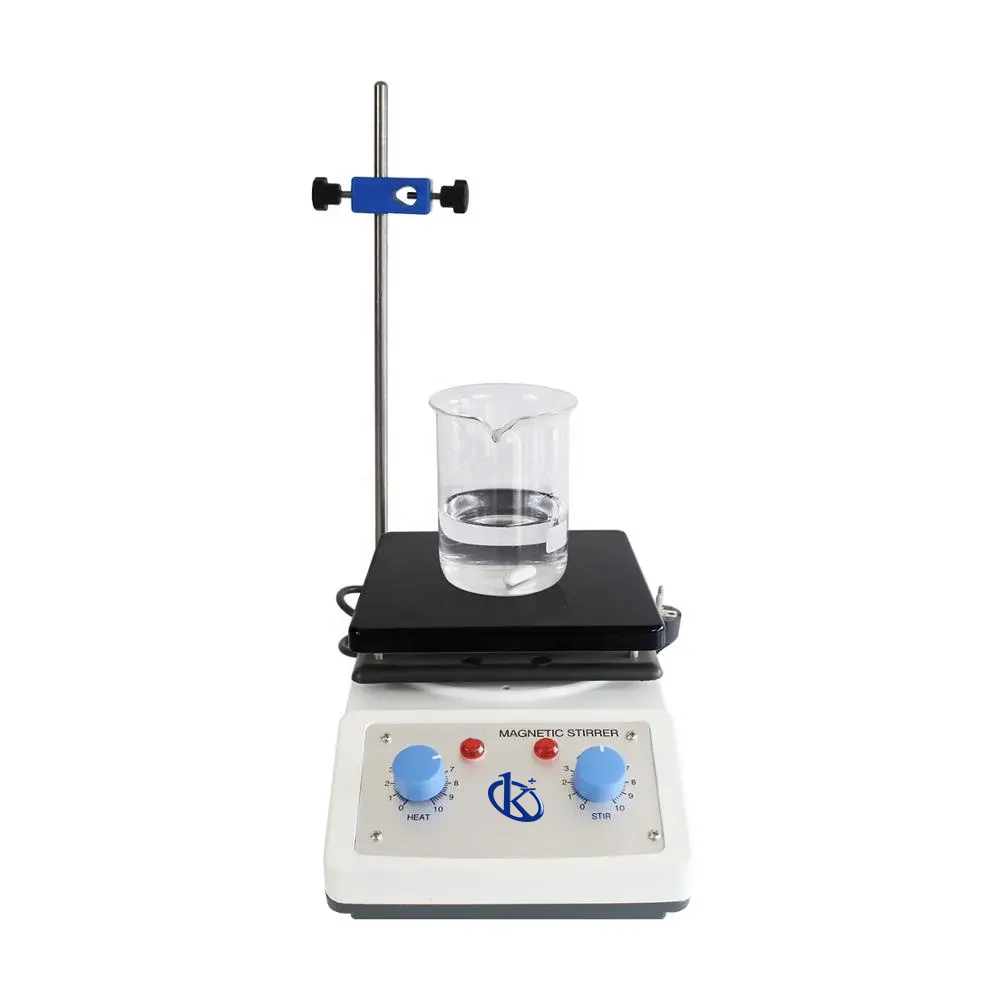

Understanding the YR02934 Hotplate Stirrer
The YR02934 model is favored for its quiet operation and efficient performance. Its compactness allows for easy cleaning and sterilization, making it suitable for chemistry and biology applications. With features like a PID automatic temperature control system, users can expect precise heating up to 380 degrees Celsius. However, some common problems may arise that require attention and troubleshooting.
Technical Specifications of the YR02934
| Specification | Details |
|---|---|
| Model | YR02934 |
| Working Area (mm) | 180 x 180 |
| Plate Size (inches) | 7.09 x 7.09 |
| Temperature Control | PID Automatic Control |
| Maximum Temperature | 325 degrees |
| Speed Range | 100-1800 RPM |
| Weight | 5.5 kg |
Troubleshooting by Symptoms
Equipment Does Not Power On
One of the most common issues is when the YR02934 does not power on. This can be caused by several factors:
- Power Supply Issue: Ensure that the power source is functioning and the voltage is within acceptable limits (160-240 V or 110-130 V).
- Faulty Power Switch: Inspect the power switch for any signs of damage or malfunction.
- Internal Fuse Failure: Check for a blown fuse inside the unit, which may require professional servicing.
Error Code E-03
Error code E-03 indicates a temperature sensor malfunction. Steps to troubleshoot include:
- Check Sensor Connection: Inspect the connection to the temperature sensor for secure attachment.
- Calibration: Ensure the unit is calibrated correctly; consult the user manual for calibration steps.
- Sensor Replacement: If issues persist, consider replacing the temperature sensor.
Inconsistent Heating
If the YR02934 exhibits inconsistent heating, consider the following:
- Surface Material: Ensure that the vessel used is compatible with the ceramic plate and does not interfere with heating efficiency.
- Load Size: Large or uneven loads may affect heating consistency; try adjusting the volume of the solution.
- Calibration Check: Re-calibrate the temperature settings to ensure accurate readings.
Unusual Noises During Operation
Unusual sounds can indicate mechanical issues. Here are some potential causes:
- Loose components: Check for any loose screws or components that may be vibrating during operation.
- Wear and Tear: Inspect the stirring mechanism for signs of wear, which may require lubrication or part replacement.
Symptom → Cause → Solution Table
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power supply issue or faulty switch | Check power source and connections |
| Error Code E-03 | Temperature sensor malfunction | Inspect connections, calibrate or replace sensor |
| Inconsistent Heating | Incompatible material or load size | Adjust vessel type and load volume |
| Unusual Noises | Loose components or wear | Tighten screws and check stirring mechanism |
Frequently Asked Questions
What is the maximum temperature the YR02934 can reach?
The YR02934 can reach a maximum temperature of 325 degrees Celsius, making it suitable for a variety of heating applications in the lab.
How do I calibrate the temperature settings on the YR02934?
Calibration can be done by following the steps outlined in the user manual, typically involving setting a known temperature and adjusting the device to match.
What types of vessels can I use with the YR02934?
It is recommended to use vessels that are compatible with ceramic heating plates, such as glass or certain metal containers, to ensure optimal performance.
Can I use the YR02934 in a fume hood?
Yes, the YR02934 can be used in a fume hood, provided that the ventilation is adequate to ensure safety during heating processes.
What should I do if the stirrer is not mixing properly?
If mixing is insufficient, check the speed settings and the type of stirring bar used. Ensure the bar is compatible with the size and type of the vessel.
How often should I perform maintenance on the YR02934?
Regular maintenance is recommended every few months, including checking for loose parts, cleaning the ceramic surface, and ensuring the heating elements are functioning correctly.
Where can I request a quote for the YR02934?
For a quote, please contact our sales team or visit the official inquiry page to get pricing and availability information.
