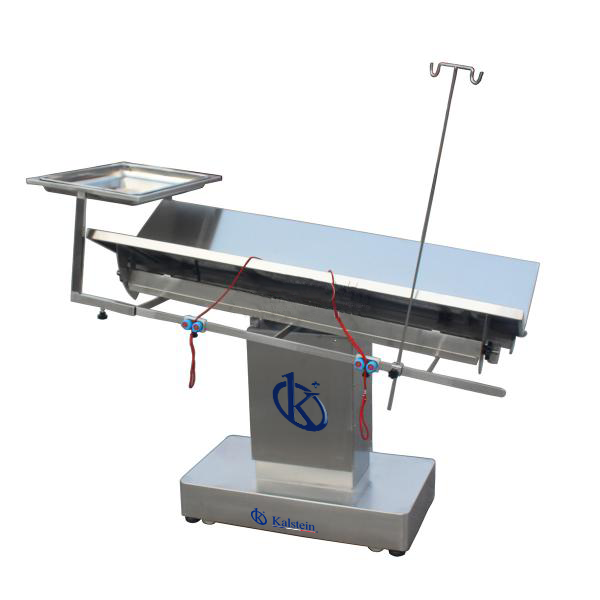

Troubleshooting Common Issues by Symptom for the YR06113 Veterinary Operating Table
The YR06113 Veterinary Operating Table is designed for rigorous use in veterinary hospitals, providing a reliable platform for surgical procedures. However, like any equipment, it may occasionally experience issues. This article aims to address common problems associated with the YR06113 by analyzing symptoms, identifying probable causes, and offering effective solutions. Understanding these troubleshooting techniques can ensure that the operating table remains a vital part of your veterinary practice.
Technical Data of YR06113
| Specification | Details |
|---|---|
| Model | YR06113 |
| Tabletop Size | 1400mm x 650mm |
| Tabletop Height | 760mm - 1060mm |
| V-Top Angle | -5° to 15° |
| Longitudinal Tilt Angle | 0° to 45° |
| Temperature Adjustment | Room Temperature to 45°C |
| Load Capacity | 120kg |
| Power Supply | 220V, 50Hz or 110V, 60Hz |
Common Symptoms and Troubleshooting Solutions
Equipment Does Not Power On
If the YR06113 does not power on, several factors could be at play:
- Power Supply Issue: Check if the power cord is securely connected and whether the outlet is functioning.
- Internal Fuse Failure: Inspect the internal fuse and replace it if necessary.
- Faulty Power Switch: Test the power switch for functionality; it may need replacement.
Error Code E-03 Displayed
An E-03 error code typically indicates an issue with the heating system:
- Overheating Protection Triggered: Allow the unit to cool down before restarting.
- Sensor Malfunction: Replace the temperature sensor if it is not functioning properly.
Inconsistent Heating
If the heating system does not maintain a consistent temperature, consider these possibilities:
- Calibration Issue: Recalibrate the heating element using the digital display panel.
- Wiring Problem: Inspect the wiring for any damage or disconnections.
Tabletop Angle Not Adjusting
Inability to adjust the tabletop angle may arise from:
- Mechanical Blockage: Check for any obstructions or blockages in the adjustment mechanism.
- Faulty Motor: Test the adjustment motor and replace if malfunctioning.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power supply issue, internal fuse failure, faulty switch | Check connections, replace fuse, test switch |
| Error Code E-03 Displayed | Overheating protection, sensor malfunction | Allow cooling, replace sensor |
| Inconsistent Heating | Calibration issue, wiring problem | Recalibrate, inspect wiring |
| Tabletop Angle Not Adjusting | Mechanical blockage, faulty motor | Clear blockages, replace motor |
Frequently Asked Questions
What are the common errors experienced by the YR06113 Veterinary Operating Table?
The common errors include power issues, error codes, inconsistent heating, and difficulties in adjusting the tabletop angle. Each of these requires specific troubleshooting steps to diagnose and fix.
How can I maintain the YR06113 to prevent common issues?
Regular maintenance should include checking electrical connections, calibrating the heating system, and inspecting mechanical parts for wear and tear to prevent issues from arising.
What should I do if the table stops responding during a procedure?
If the table becomes unresponsive, first check the power supply and outlet. If power is intact but the table is still unresponsive, consult the troubleshooting guide for potential mechanical issues or error codes.
Are there any recommended spare parts for the YR06113?
Yes, recommended spare parts include internal fuses, heating elements, and adjustment motors. Keeping these on hand can minimize downtime during repairs.
How can I properly calibrate the heating system of the YR06113?
Calibration of the heating system can be performed using the digital display panel, following the manufacturer's instructions to ensure accurate temperature settings.
What is the load capacity of the YR06113 Veterinary Operating Table?
The YR06113 has a load capacity of 120kg, which should be adhered to in order to prevent damage and ensure safety during surgical procedures.
How do I request a quote for the YR06113 Veterinary Operating Table?
To request a quote for the YR06113, please contact our sales team for personalized assistance regarding pricing and availability.
