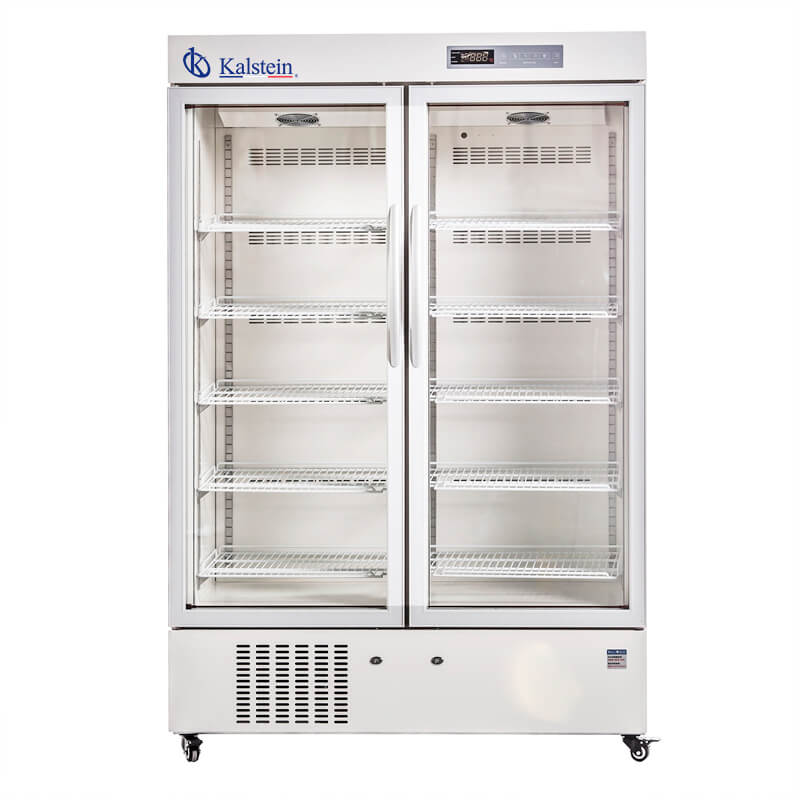

Understanding the Operating Principle and Scientific Basis of the YR05087 Medical Refrigerator
The YR05087 Medical Refrigerator is an essential piece of equipment designed for the safe storage of temperature-sensitive medical supplies, including pharmaceuticals and biological specimens. Understanding its operating principles and scientific basis provides essential insights into why it performs effectively in demanding environments.
Scientific Principles Behind the YR05087's Cooling Mechanism
The YR05087 operates on the principle of forced air cooling, wherein a compressor circulates refrigerant through evaporators and condensers. The refrigerant absorbs heat from the interior and expels it outside, thus maintaining a consistent temperature range of 2 to 8 °C, critical for preserving the integrity of stored items.
The cooling cycle begins with the compressor compressing the refrigerant gas, raising its pressure and temperature. The high-pressure gas then passes through the condenser, where it loses heat to the ambient environment and condenses into a liquid. This liquid refrigerant flows through the expansion valve, dropping in pressure and temperature before entering the evaporator coils inside the refrigerator. Here, it absorbs heat, cooling the internal environment.
Design Choices and Their Impact on Performance
The design of the YR05087 includes a high-efficiency fan that promotes uniform airflow throughout the unit. This aspect is crucial because uneven temperature distribution can lead to hot spots, risking the efficacy of stored products. The fan's role is to ensure that every area within the refrigerator maintains a consistent temperature.
Moreover, the refrigerator features a heated glass door to prevent condensation. This design choice not only enhances visibility but also minimizes the risk of temperature fluctuations that can occur when condensation forms on the door. Such meticulous design choices contribute to the YR05087's reliability and performance.
Technical Specifications of the YR05087 Medical Refrigerator
| Specification | Details |
|---|---|
| Model | YR05087 |
| Cooling Method | Forced Air Cooling |
| Temperature Range | 2 to 8 °C |
| Energy Consumption | 6.23 kWh/24h |
| Noise Level | 53 dB |
| Power Supply | 220 V / 50 Hz |
| Dimensions | 1240 x 820 x 1900 mm |
Environmental Conditions and Site Requirements
The YR05087 Medical Refrigerator is designed to operate optimally within specific environmental conditions. The unit requires a temperature range of 10 to 32 °C for ambient conditions, ensuring efficient performance and longevity.
Additionally, adequate ventilation is crucial. The unit must be placed in a location where airflow is unobstructed. Failure to provide proper ventilation can lead to overheating and potential failure of the cooling system.
Common Troubleshooting Issues and Solutions
Equipment Does Not Power On
If the YR05087 does not power on, check the following:
- Ensure that the power cord is plugged in securely.
- Check for tripped circuit breakers or blown fuses.
- Inspect the power outlet for functionality.
Error Code E-03
This error typically indicates a temperature sensor fault. To resolve it:
- Verify that the temperature sensor is correctly positioned.
- Check for any visible damage to the sensor.
- Consider replacing the sensor if the issue persists.
Inconsistent Readings
Inconsistent internal temperature readings may be due to:
- Obstructed airflow inside the unit.
- Faulty temperature sensor.
- Frequent door openings disrupting internal stability.
Frequently Asked Questions
What is the optimal operating temperature range for the YR05087?
The optimal operating temperature range for the YR05087 Medical Refrigerator is between 2 to 8 °C, which is crucial for preserving the integrity of temperature-sensitive medical supplies.
How often should I perform maintenance on the YR05087?
It is advisable to perform regular maintenance checks every three to six months to ensure optimal performance, including cleaning the condenser coils and checking the door seals.
Can the YR05087 be used for storing vaccines?
Yes, the YR05087 is designed to maintain a stable temperature that is suitable for storing vaccines, which require stringent temperature control.
What safety features are included in the YR05087?
The YR05087 includes several safety features such as an audible alarm for temperature deviations, an open-door alarm, and a power failure alarm, ensuring the safety of stored items.
Is there a backup power system in the YR05087?
Yes, the YR05087 has an emergency power backup system that provides up to eight hours of operation during power outages.
What materials are used in the construction of the YR05087?
The YR05087 is constructed with powder-coated steel for both interior and exterior, ensuring durability and ease of cleaning.
