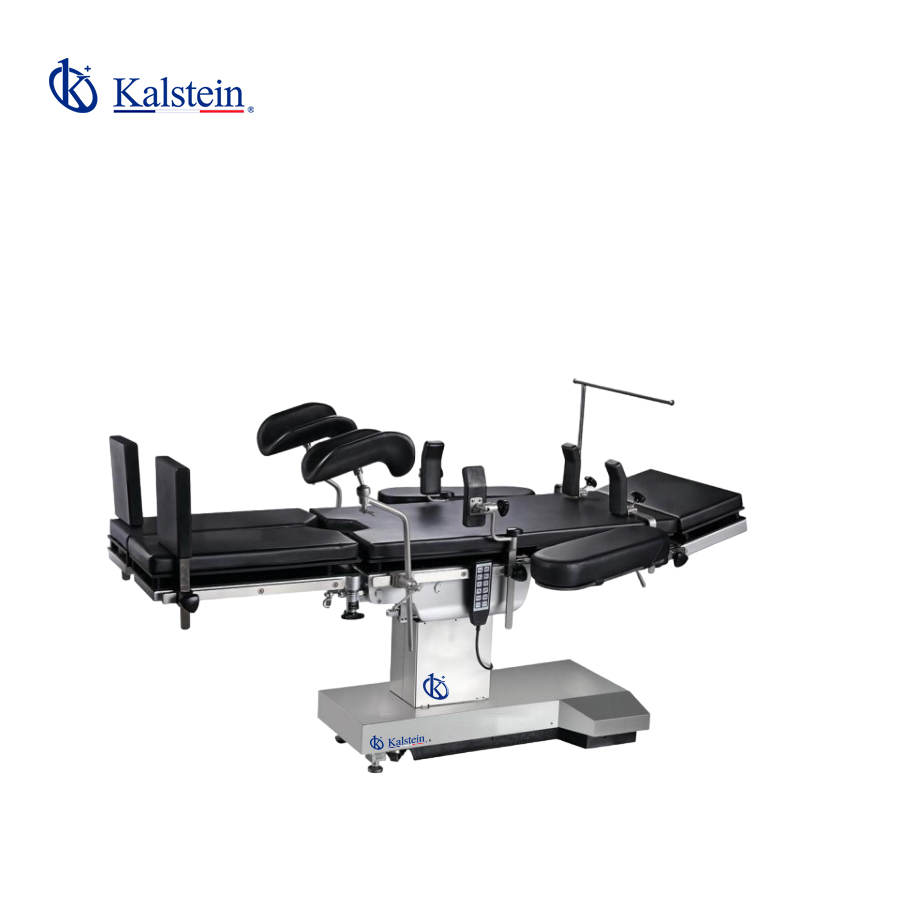

Understanding the Operating Principle and Scientific Foundation of the YR06233 Electrohydraulic Operating Table
The YR06233 Electrohydraulic Operating Table is designed specifically to meet the demands of general surgical procedures. This article delves into its operating principles and scientific foundations, providing a comprehensive understanding of this advanced medical equipment.
Principle of Operation
The YR06233 operates on a sophisticated electrohydraulic system, which allows for precise adjustments and positioning required during surgical interventions. This system utilizes hydraulic fluid to enable smooth movements and adjustments of the table, ensuring optimal positioning for both patients and surgeons.
The key components of the electrohydraulic system include hydraulic cylinders, a hydraulic pump, and an electric motor. The electric motor drives the pump, which then pressurizes the hydraulic fluid. This pressurization translates into mechanical movements of the table, allowing for elevation, tilting, and lateral adjustments with ease.
Scientific Foundations of the YR06233
The scientific foundations behind the YR06233 involve principles of fluid mechanics and mechanical engineering. The hydraulic system relies on Pascal's Law, which states that pressure applied to a confined fluid is transmitted undiminished in all directions. This principle ensures that even a small input force can create significant output force, enabling the table to lift heavy patients smoothly.
In addition, the table's design incorporates stainless steel 304, which is essential for operating rooms due to its corrosion resistance and ease of cleaning. This choice not only enhances durability but also complies with health regulations mandating sanitary conditions in surgical environments.
Technical Specifications of the YR06233
| Specification | Details |
|---|---|
| Model | YR06233 |
| Length/Width | 2000mm/500mm |
| Elevation (up/down) | 690mm/1100mm |
| Trendelenburg | 30° |
| Reverse Trendelenburg | 30° |
| Lateral Tilt (left/right) | 18°/18° |
| Head Rest (up/down) | 40°/90° |
| Footplate (up/down & horizontal positioning) | 15°/90°/90° |
| Back Plate (up/down) | 90°/40° |
| Longitudinal Sliding | 350mm |
| Power | 220v, 50Hz, 1.0kW |
Design Choices and Their Implications
The design of the YR06233 incorporates essential features that enhance its functionality and usability in surgical settings. The use of a comprehensive stainless steel structure ensures that the table is not only sturdy but also meets the high cleanliness standards essential in medical environments.
Other design choices include an automatic locking mechanism in the remote control, which prevents unintentional adjustments during surgery. This is critical in maintaining the safety and comfort of the patient as well as the effectiveness of the surgical procedure. The use of an X-ray transparent tabletop further enhances the capability of the table to support various surgical procedures without compromising imaging requirements.
Applications in Surgical Procedures
The YR06233 Electrohydraulic Operating Table is suitable for a wide range of surgical applications, including general surgery, orthopedic procedures, and urological surgeries. Its ability to adjust to various angles and heights makes it versatile for different surgical requirements.
Surgeons can easily manipulate the table's position using the remote control, which enhances their ability to focus on the procedure rather than the logistics of patient positioning. This convenience is especially vital in lengthy surgeries where optimal access and visibility are critical.
Common Issues and Troubleshooting
Despite its robust design, users may encounter common issues with the YR06233. Some symptoms, potential causes, and solutions are outlined in the table below:
| Symptom | Possible Causes | Solutions |
|---|---|---|
| Equipment does not power on | Power source issues, faulty wiring | Check power connections, inspect wiring |
| Error code E-03 | Hydraulic system failure | Inspect hydraulic fluid levels, check for leaks |
| Inconsistent height adjustments | Faulty electric motor, hydraulic fluid issues | Test and replace motor if necessary, check fluid |
Frequently Asked Questions
What is the maximum weight capacity of the YR06233?
The YR06233 is designed to accommodate a maximum weight capacity of 350 kg, making it suitable for a wide range of patients.
How does the Trendelenburg function work on the YR06233?
The Trendelenburg function allows the table to tilt at a 30° angle, which can be crucial for certain surgical procedures requiring this position.
What maintenance is required for the YR06233?
Routine checks of the hydraulic fluid levels, electrical components, and cleaning of the table surfaces are essential for maintaining optimal operation.
Can the YR06233 be used in emergency situations?
Yes, the YR06233’s quick adjustments and robust features make it a viable option for emergency surgical procedures.
What safety features are included with the YR06233?
Safety features include an automatic locking mechanism and sturdy construction that prevents movement during surgery, ensuring patient safety.
What type of power supply does the YR06233 require?
The YR06233 requires a power supply of 220v, 50Hz, ensuring compatibility with most hospital electrical systems.
