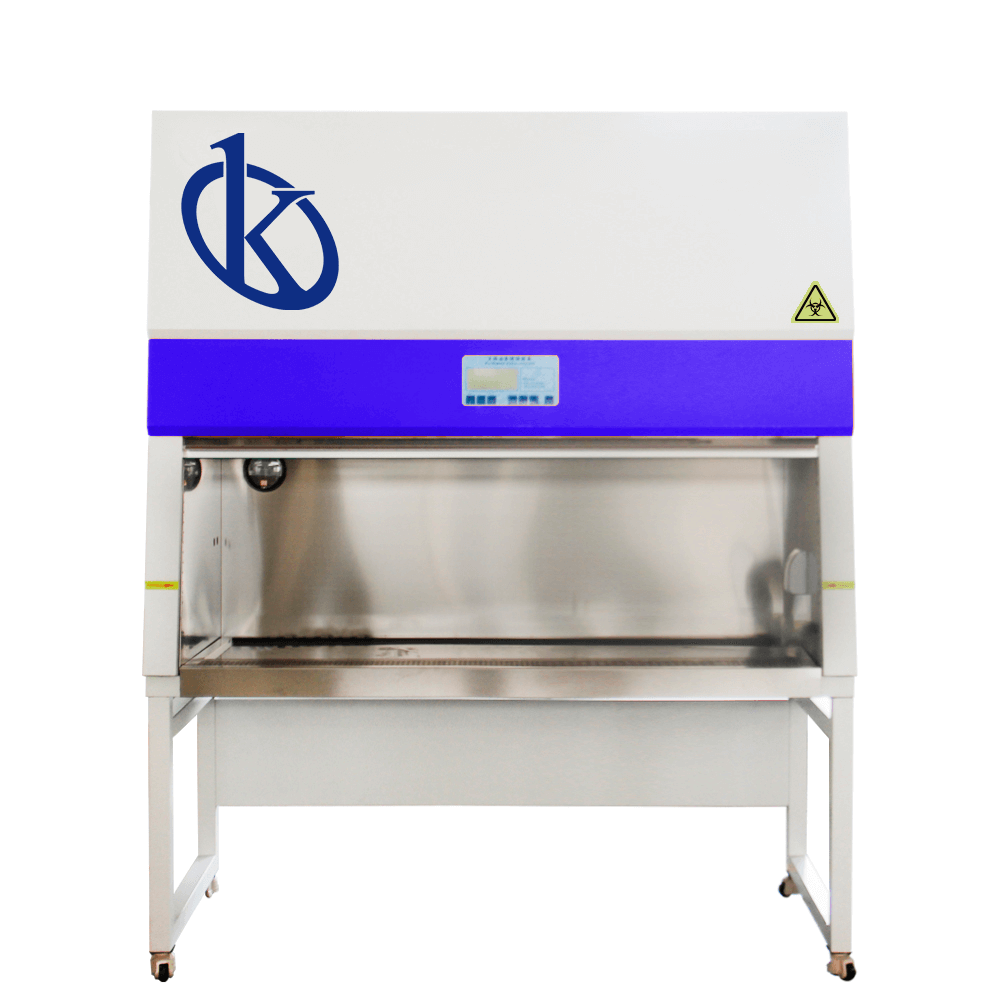

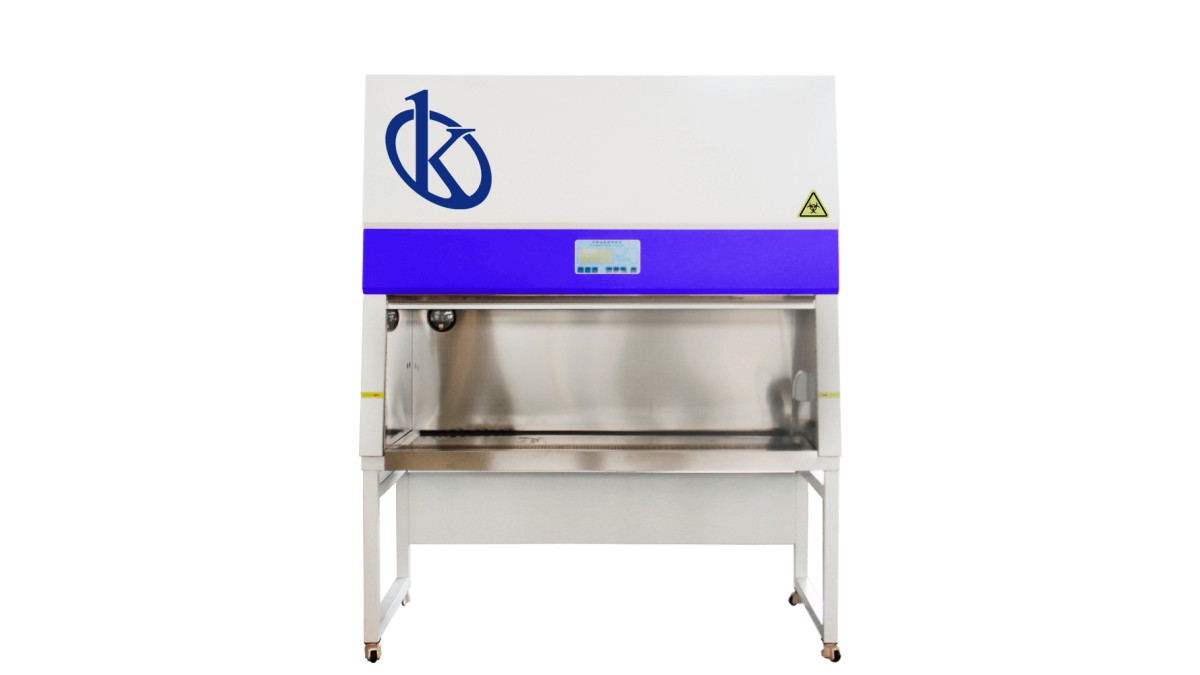

Biosafety Cabinet Class II YR05710: An Essential Tool for Laboratory Safety
Product Description
The YR05710 Biosafety Cabinet Class II is essential for laboratories working with sensitive biological materials. Designed specifically for environments requiring stringent protection measures, this cabinet ensures maximum safety for both the operator and the samples being handled. It is particularly beneficial in fields such as medicine, pharmacy, and scientific research.
Key Features
- The air curtain isolation design prevents both internal and external cross-contamination, with 100% airflow discharged externally, maintaining a vertical laminar flow under negative pressure, eliminating the need for additional ductwork.
- The adjustable glass door can be easily operated and can close completely for sterilization, featuring height positioning alarms for safety.
- Work area power outlets come with waterproof plugs and a drainage interface, enhancing usability for operators.
- A specialized filter in the exhaust air controls emission contamination, ensuring a clean working environment.
- The work surface is made of high-quality 304 stainless steel, providing a smooth, seamless surface that is easy to disinfect and resistant to corrosive agents and disinfectants.
- Features an LCD LED panel control and a built-in UV lamp protection device that activates only when the safety door is closed.
- Includes a DOP detection port and a built-in differential manometer for precise measurements.
- The 10-degree inclination aligns with ergonomic design principles, promoting user comfort.
Market Price
The YR05710 Biosafety Cabinet Class II is available in the market at a competitive price of $3130.00. This price reflects the intricate design and high-quality materials used in its construction, making it a worthwhile investment for laboratories focused on safety and compliance.
Technical Comparison Table
| Specification | YR05708 | YR05709 | YR05710 |
|---|---|---|---|
| Model | YR05708 | YR05709 | YR05710 |
| Cleaning | Class 100@≥0.5μm (US Federal 209E) | Class 100@≥0.5μm (US Federal 209E) | Class 100@≥0.5μm (US Federal 209E) |
| Colony Count | ≤0.5 pcs/plate·hour | ≤0.5 pcs/plate·hour | ≤0.5 pcs/plate·hour |
| Average Airflow Velocity | 0.38±0.025 m/s | 0.26±0.025 m/s | 0.27±0.025 m/s |
| Front Suction Wind Speed | 0.55 m±0.025 m/s | 0.55 m±0.025 m/s | 0.55 m±0.025 m/s |
| Noise Level | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) |
| Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Max Power Consumption | 500W | 600W | 700W |
| Weight | 210KG | 250KG | 270KG |
| Work Area Dimensions | 1040×650×620 | 1340×650×620 | 1640×650×620 |
| Total Dimensions | 1200×800×2270 | 1500×800×2270 | 1800×800×2270 |
Frequently Asked Questions
What is a Biosafety Cabinet Class II?
A Biosafety Cabinet Class II is a specialized laboratory equipment designed to provide a sterile working environment while protecting the operator from harmful biological agents. It achieves this by using a combination of barrier techniques, airflow management, and filtration systems.
What applications is the YR05710 suitable for?
The YR05710 is suitable for a wide range of applications, including medical research, pharmaceutical development, and any laboratory work involving potentially pathogenic microorganisms or sensitive biological materials.
How does the airflow system work in this cabinet?
The cabinet utilizes a vertical laminar airflow system that draws air from the environment, filters it, and recirculates it to maintain a sterile environment. The air is discharged outside, ensuring that contaminants do not enter the workspace.
Is the YR05710 easy to maintain?
Yes, the YR05710 is designed for easy maintenance. The stainless steel work surface can be easily cleaned and disinfected, and the filtration system can be checked and replaced as needed.
What safety features does the YR05710 include?
The YR05710 comes equipped with safety features such as an adjustable glass door with height positioning alarms, a built-in UV lamp protection device, and a DOP detection port. These features ensure operational safety and compliance with laboratory standards.
How do I choose the right size for a Biosafety Cabinet?
Choosing the right size depends on the laboratory's available space and the specific tasks being performed. It is essential to consider the type of work and the volume of samples that will be processed to select an appropriate cabinet size.
How can I request a quote for the YR05710?
You can easily request a quote by accessing our dedicated platform, where you can fill out a request form and our team will assist you promptly.
Pros and Cons
Pros
- Highly effective in preventing contamination.
- User-friendly design with adjustable features.
- Made of durable and easy-to-clean materials.
- Advanced airflow and filtration technology.
- Robust safety features for operator protection.
Cons
- Initial investment cost may be high for smaller laboratories.
- Requires regular maintenance and filter replacement.
- Needs sufficient space for installation and operation.
Field Usage
The YR05710 Biosafety Cabinet Class II is widely used in various fields, including:
- Microbiology and virology laboratories for handling pathogenic microorganisms.
- Pharmaceutical companies for drug formulation and testing.
- Research institutions for handling sensitive biological materials.
- Clinical laboratories for sample processing and analysis.
Recommendations
When considering the addition of a Biosafety Cabinet Class II to your laboratory, it is essential to assess the specific needs of your operations. Ensure you evaluate the workspace dimensions, types of materials being handled, and any special safety requirements. It is also advisable to train personnel on proper usage and maintenance to maximize the cabinet's lifespan and efficiency.
For those interested in acquiring the YR05710 Biosafety Cabinet Class II, please request a quote today and experience the perfect blend of quality and efficiency.
