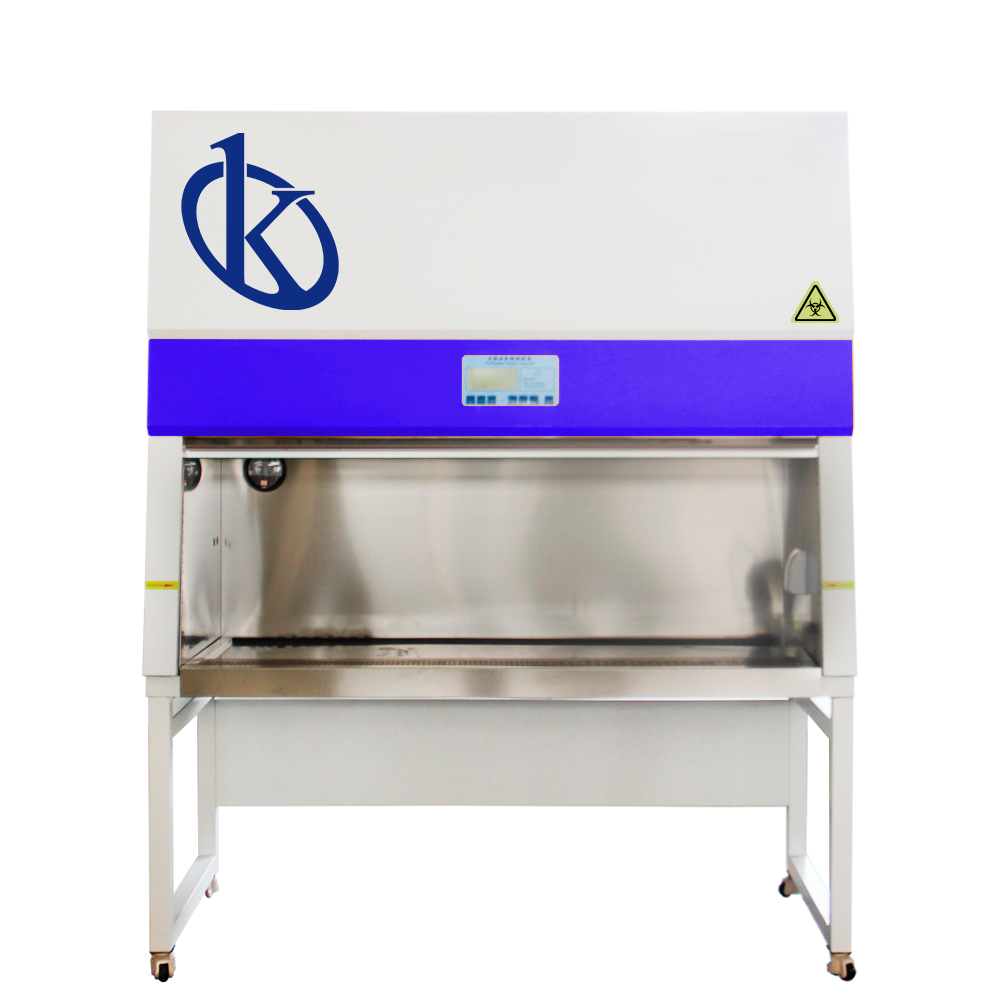

Biological Safety Cabinet YR05708 // YR05710

ManufacturerKalstein

Description

The Biological Safety Cabinet YR05708 // YR05710 is a high-tech solution designed to provide maximum protection in laboratories working with hazardous biological agents. These cabinets are essential in medical, pharmaceutical, and scientific research facilities. They feature an air curtain isolation design that prevents cross-contamination both inside and outside. The vertical laminar airflow system with negative pressure ensures that 100% of contaminated air is expelled outside, eliminating the need for additional ductwork. Additionally, the cabinet is equipped with an adjustable glass door that facilitates operations and can be fully closed for sterilization. The door also includes an alarm system that alerts when the positioning height is inadequate, adding an extra layer of safety.

Market Price

The price of the Biological Safety Cabinet YR05708 // YR05710 generally ranges between $4600 and $7000, depending on the model and specific features. This price range reflects the superior quality of materials used, such as 304 stainless steel, and the advanced filtration technology that ensures a safe and contaminant-free working environment. Investing in this equipment is a strategic decision for any laboratory that needs to meet the highest biosafety standards, protecting both operators and samples.

Frequently Asked Questions

  • Is it difficult to operate the Biological Safety Cabinet YR05708 // YR05710?
    No, the cabinet is designed to be easy to operate, with an intuitive LCD LED control panel and an ergonomic design. It also features an alarm that alerts if the safety door is not correctly positioned.
  • What type of protection does this cabinet offer?
    The cabinet provides complete protection for the operator, the environment, and the samples being handled. It prevents cross-contamination through a highly efficient HEPA filtration system.
  • What is the size of the work area?
    The work area varies depending on the model, with dimensions ranging from 1040×650×620 mm to 1640×650×620 mm, offering sufficient space for various laboratory applications.

Advantages and Disadvantages

Among the advantages of the Biological Safety Cabinet YR05708 // YR05710 are its robust stainless steel construction, its HEPA filtration system that guarantees over 99.99% efficiency, and its low noise level, below 65 dB, ideal for environments requiring concentration. The ease of cleaning its smooth, seamless surface ensures a hygienic working environment. However, its size could be a disadvantage in laboratories with limited space, so careful planning of its installation is necessary.

Product Usage in the Field

These cabinets are widely used in laboratories where it is crucial to maintain a sterile and controlled environment, such as in biomedical and pharmaceutical research. Their advanced filtration system and vertical laminar flow are essential for preventing cross-contamination, protecting both the operator and sensitive samples. Additionally, the 10° tilt design enhances operator comfort, especially during long hours of work.

Recommendations

To ensure optimal performance and longevity of the Biological Safety Cabinet YR05708 // YR05710, regular maintenance is recommended. This includes inspecting and periodically replacing the HEPA filters, as well as calibrating the airflow to maintain ideal working conditions. It is also important to regularly test the UV protection device and safety alarms to ensure continuous and safe operation.

Technical Specifications

Model   YR05708   YR05709   YR05710
Cleanliness Class 100@≥0.5μm (US Federal 209E)
Number of colonies ≤0.5pcs/dish·hour (Φ90mm culture plate)
average wind speed Inside the door 0.38±0.025m/s
middle 0.26±0.025m/s
Inside 0.27±0.025m/s
Front suction wind speed 0.55m±0.025m/s
noise ≤65dB(A)
Voltage AC single-phase 220V/50Hz
Maximum power consumption 500W 600W 700W
Weight 210KG 250KG 270KG
Working area W1×D1×H1 1040×650×620 1340×650×620 1640×650×620
Overall dimension W×D×H 1200×800×2270 1500×800×2270 1800×800×2270
High efficiency filter specification and quantity 980×490×50×1 1280×490×50×1 1580×490×50×1
520×380×70×1 820×380×70×1 1120×380×70×1
Specification and quantity of fluorescent lamp/ultraviolet lamp 20W×2/20W×1 30W×2/30W×1 30W×2/30W×1

Additional information

Weight N/A
Dimensions N/A
Model

YR05708, YR05709, YR05710
