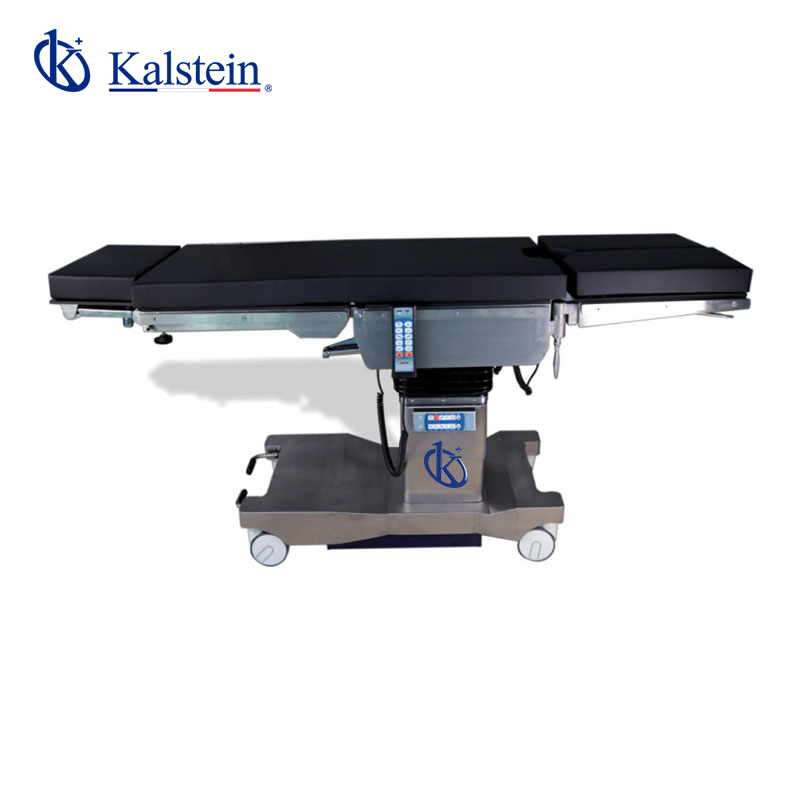

Installation and Commissioning Guide for the YR06230 Electric Operating Table
The YR06230 electric operating table is designed for increasingly complex surgical scenes, featuring an intelligent automatic control system that meets the diverse demands of general surgeries. This guide provides a thorough walkthrough for the installation and commissioning of the YR06230, ensuring it operates safely and effectively.
Understanding the YR06230 Electric Operating Table
The YR06230 electric operating table stands out due to its advanced features, including a longitudinal slide of up to 350 mm for unobstructed access to the C-arm, an extreme load capacity of 250 kg, and an anti-static, waterproof memory foam pad. Its standard panel control enhances safety while the backup battery ensures reliability during surgeries.
Technical Specifications of the YR06230
| Specification | Details |
|---|---|
| Model | YR06230 |
| Length/Width | 2100mm/550mm |
| Elevation (up/down) | 700mm/1000mm |
| Trendelenburg | ≥25° |
| Reverse Trendelenburg | ≥25° |
| Lateral Tilt (left/right) | 15°/15° |
| Head Rest (up/down) | 45°/90° |
| Footplate (up/down & horizontal positioning) | 90°/90°/15° |
| Back Plate (up/down) | 85°/20° |
| Kidney Bridge | 110 mm |
| Sliding | 350 mm |
| Power | 220v, 50Hz, 1.0kW |
Unboxing and Initial Setup
When receiving the YR06230, it is crucial to conduct an unboxing checklist to ensure all components are intact. This includes checking for the main table, control panel, power cord, and any accessories provided. Ensure the workspace is adequately prepared, with sufficient space for maneuvering the table.
The next step is to position the table correctly. After placing it on a flat, stable surface, you must secure it to the ground using the provided anchoring kit. Leveling the table is also essential; a leveling tool can be used to achieve this. Once set, proceed to connect the power supply and check that the electrical connections are secure.
Power-Up Sequence and Calibration
Upon completing the setup, the power-up sequence will initiate the table's smart control system. This includes turning on the main power switch, which activates the control panel. Ensure all buttons are functioning correctly and that the display shows the operational status.
Calibration is vital for the correct functioning of the YR06230. This may involve adjusting the height settings, verifying the tilt angles, and testing the memory functions. Follow the manufacturer’s instructions for calibration procedures to ensure accuracy and reliability during surgical procedures.
Common Setup Mistakes and Troubleshooting
During installation, several common mistakes can occur. One frequent issue is incorrect power connections, leading to failure in powering up the table. Always double-check the electrical connections and ensure the power outlet is functional.
Another mistake is improper leveling, which can affect the stability of the table during use. Utilize a leveling tool to confirm that the table is uniformly positioned. Additionally, ensure that all mechanical parts are free from obstruction before commissioning the table for surgical use.
Maintenance and Care Guidelines
Regular maintenance is essential for the longevity of the YR06230 operating table. This includes routine checks of the electrical components, inspecting the memory foam pad for wear, and cleaning the table surface with suitable disinfectants.
Moreover, programs for preventive maintenance should be established, including periodic checks for structural integrity and testing the battery backup system. Keeping a maintenance log can help track any repairs or adjustments made over time.
Frequently Asked Questions
What is the maximum weight capacity for the YR06230 electric operating table?
The YR06230 electric operating table has an extreme load capacity of 250 kg, ensuring stability and safety during surgical procedures.
How do I access the backup battery of the YR06230?
The backup battery for the YR06230 is designed for easy access and replacement. Refer to the user manual for detailed instructions on how to locate and replace the battery when needed.
What should be included in the unboxing checklist for the YR06230?
The unboxing checklist for the YR06230 should include the main operating table, control panel, power cord, and any additional accessories or manuals provided by the manufacturer.
How often should the YR06230 undergo maintenance?
Regular maintenance for the YR06230 is recommended every six months, which includes checks on electrical components, cleaning, and ensuring all moving parts are functioning correctly.
What type of cleaning agents are suitable for the YR06230?
Only non-corrosive disinfectants that are safe for medical equipment should be used to clean the YR06230. Avoid abrasive cleaners that can damage the surface.
Can the YR06230 be customized with additional features?
Yes, the YR06230 can be customized with optional accessories and upgrades. Consult the manufacturer’s catalog for available options to enhance your operating table.
