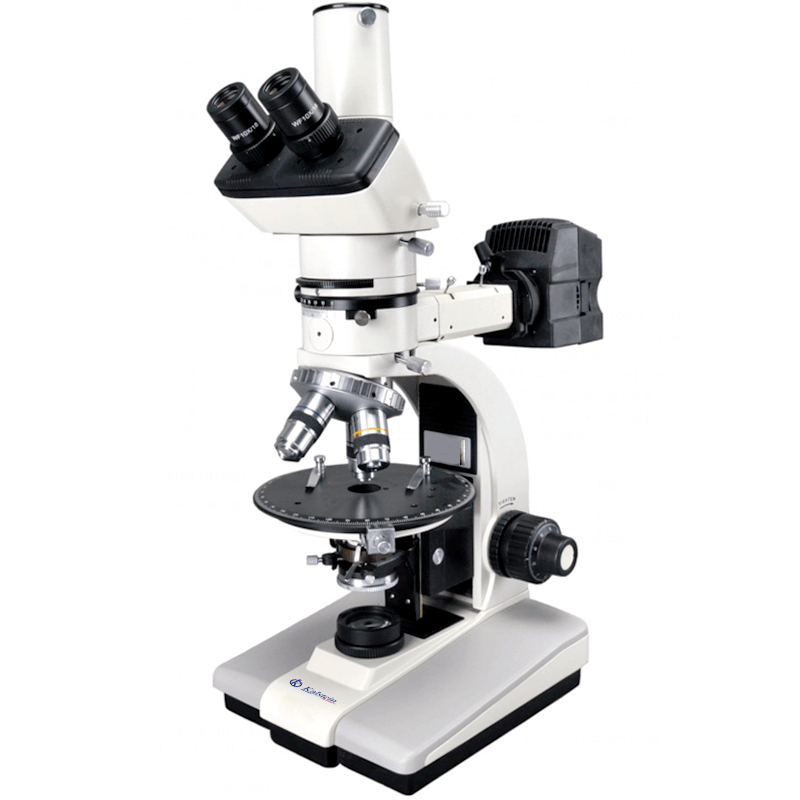

Understanding the Operational Principles and Scientific Foundations of the YR0264 Microscope
The YR0264 microscope is a sophisticated instrument widely used across various scientific disciplines. This article delves into the operational principles and scientific foundations that underpin its design and functionality, providing insights into its pivotal role in research and education.
Principle of Operation of the YR0264 Microscope
The YR0264 microscope operates based on the principles of light transmission and refraction. Utilizing a combination of lenses, this microscope magnifies specimens by bending light rays, allowing for detailed observation. The design integrates optical physics principles, specifically Snell's Law, which describes how light bends when passing from one medium to another, essential for achieving optimal clarity and focus.
The microscope uses a trinocular head, which allows for simultaneous viewing through two eyepieces while providing a third port for a camera or other imaging devices. This feature is particularly beneficial for documentation and sharing findings in educational settings.
Scientific Foundations Behind the YR0264
The YR0264 is not just an ordinary microscope; it is designed with scientific rigor that supports its use in various fields, including biology, chemistry, and geology. Polarization microscopy is one of its standout features. This method is invaluable for examining crystalline structures and other anisotropic materials, as it enhances contrast and reveals details that are not visible under standard light microscopy.
Built with a range of optical components such as achromatic objectives, the YR0264 minimizes chromatic aberration and maximizes image clarity. The use of a high NA (Numerical Aperture) condenser further optimizes illumination, which is crucial for high-resolution imaging.
Applications of the YR0264 Microscope
The versatility of the YR0264 is one of its greatest assets. It is extensively used in diverse sectors such as clinical laboratories for medical diagnostics, research institutions for studying biological specimens, and educational facilities for teaching microscopy techniques. Its ability to perform both simple and polarized light observations makes it suitable for a wide range of applications.
In crystal structure analysis, for example, the YR0264 aids geologists in identifying minerals by revealing their optical properties, which are crucial for classification. Similarly, in analytical chemistry, it assists in the study of substance purity and composition.
Technical Specifications of the YR0264
| Specification | Details |
|---|---|
| Model | YR0264 |
| Binocular Head | Binocular viewing head, inclined at 45° |
| Trinocular Head | Trinocular viewing head, inclined at 45° |
| Eyepiece | WF10×/18 with crosshair scale |
| Objective | Achromatic objectives 4x, 10x, 25x, 40x, 63x |
| Condenser | NA1.25 Abbe condenser with iris diaphragm |
| Illumination | 12V/20W halogen lamp, brightness adjustable |
| Weight | 15 kg |
Frequently Asked Questions
What are the key features of the YR0264 microscope?
The YR0264 microscope features a trinocular head for simultaneous viewing and imaging, various achromatic objectives for enhanced clarity, and a high-performance condenser for optimal illumination.
How does polarization microscopy work in the YR0264?
Polarization microscopy in the YR0264 enhances the contrast of specimens by filtering light waves to reveal details in crystalline structures, which are otherwise difficult to observe.
What applications is the YR0264 microscope best suited for?
The YR0264 is ideal for applications in biology, geology, analytical chemistry, and education, particularly for tasks requiring detailed specimen analysis and documentation.
Can the YR0264 microscope be used for educational purposes?
Yes, the YR0264 is highly suitable for educational purposes, providing students with hands-on experience in microscopy techniques and allowing for detailed observations of various specimens.
What are the maintenance requirements for the YR0264 microscope?
Regular maintenance includes cleaning the lenses, checking the alignment of optical components, and ensuring the illumination system functions correctly to maintain optimal performance.
How do I set up the YR0264 microscope for first use?
To set up the YR0264, unbox the microscope carefully, assemble the components as per the user manual, calibrate the optical system, and perform an initial check to ensure proper functionality.
Where can I obtain replacement parts for the YR0264?
Replacement parts for the YR0264 can be obtained from authorized suppliers or directly from manufacturers specializing in laboratory equipment. It is advisable to use genuine parts to ensure compatibility and performance.
