Description

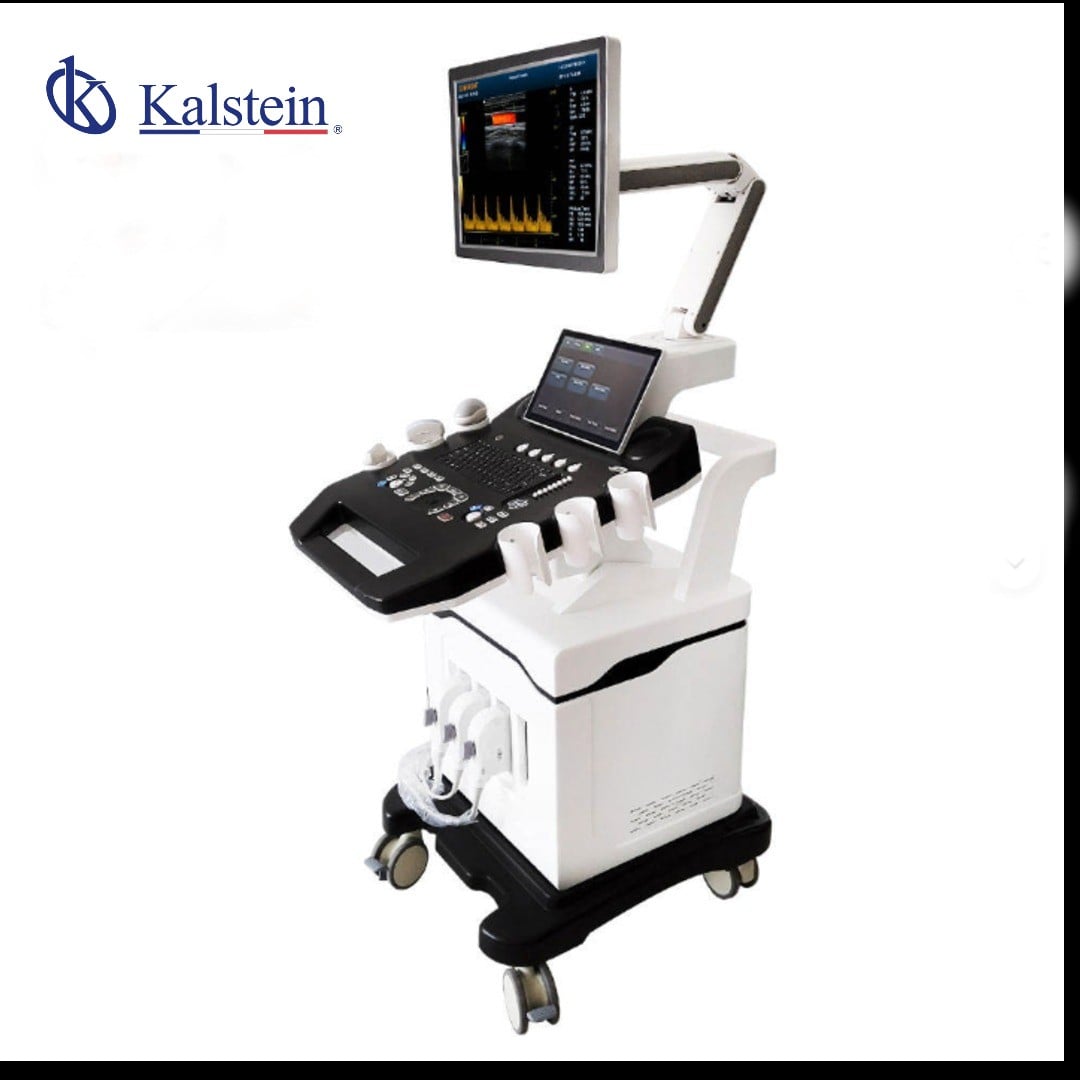

The YR06635 is a premium diagnostic imaging solution integrating advanced 3D and 4D Color Doppler technologies. This system is designed for modern medical and veterinary centers that demand exceptional precision across a wide range of applications, from abdominal and cardiac studies to high-complexity obstetrics and gynecology.

Design and Intelligent Technology

• Connectivity Suite: The system is equipped with 4 active transducer ports and 4 USB ports, facilitating seamless probe switching and rapid data export.

• Image Processing: It utilizes multi-beam forming technology and fully digital signal processing to achieve high-resolution images with speckle reduction.

• Advanced Visualization: Features a 15-inch LED monitor with an 800:1 contrast ratio and a ± 90-degree swivel angle for ergonomic operation.

• Storage and Cine: Includes a 64GB SSD hard drive (expandable to 120GB/200GB) and a cine memory of up to 1200 frames for detailed review.

• Tissue Technology: Incorporates Tissue Harmonic Imaging (THI) and dynamic tissue optimization to better differentiate complex anatomical structures.

Frequently Asked Questions (FAQ)

• What types of probes does it support? It supports a wide variety, including Convex array, Linear array, Intracavitary, Micro-convex, Cardiac, and the specialized 4D Volume probe.

• Is it compatible with hospital management systems? Yes, it fully complies with the DICOM 3.0 protocol, allowing for easy printing and sending of reports over medical networks.

• Does it have automated functions? Yes, it features automatic IMT (Intima-Media Thickness) measurements and PW (pulsed wave) auto-trace to speed up the diagnostic process.

Advantages and Disadvantages

Key Advantages:

• Total Versatility: Applicable in cardiology, urology, pediatrics, musculoskeletal imaging, and more.

• Comprehensive Imaging Modes: Offers B, M, Color PDI, PW, CW (Continuous Wave), and simultaneous duplex/triplex visualization.

• User-Friendly Interface: Windows-based with a backlit control panel and a full-size QWERTY keyboard.

Disadvantages/Considerations:

• Significant Weight: With an equipment weight of 80 kg, it requires a stable surface or its own internal transport system.

• Learning Curve: Due to its high-end nature and multiple imaging modes (TDI, TSI, 4D), staff may require specialized training to fully utilize all processing functions.

Field Usage and Recommendations

• Ideal Environments: High-complexity hospitals and specialized clinics focused on vascular diagnostics or advanced fetal monitoring.

• Key Function: The integrated 4D mode is essential for real-time volumetric reconstructions in obstetrics.

• Operational Recommendations: It is suggested to use the built-in “online care” function, which instructs the user on the operational steps to follow during the examination.
