Description

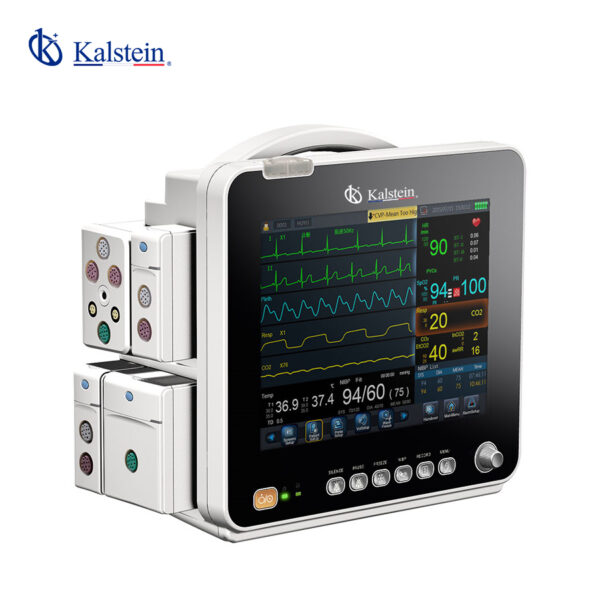

The Patient Monitor YR02175 is an advanced modular parameter patient monitor featuring a 12.1-inch LCD screen, designed for both Operating Theaters (OT) and Intensive Care Units (ICU). It offers comprehensive standard parameters including ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, with a 5-lead ECG, dual temperature monitoring, and auto/manual blood pressure measurements. Its precision and reliability make it an essential tool for medical professionals providing real-time patient monitoring.
Market Price
In the current market, patient monitors similar to the YR02175 are typically priced between $3,900 to $4,700 USD. This range provides flexibility based on the features and specifications offered, giving healthcare facilities the opportunity to select the best option within their budget.
Frequently Asked Questions
- What is the display size of the Patient Monitor YR02175? The monitor has a 12.1-inch LCD screen, ensuring clear visibility of patient data.
- How many lead modes are supported? The monitor supports both 5-lead and 3-lead ECG modes for comprehensive cardiac monitoring.
- Is the monitor suitable for neonatal and pediatric care? Yes, with HR ranges for Neo/Ped from 15~350 bpm and Respiration rates up to 150 BrPM.
Advantages and Disadvantages
Advantages: The YR02175 offers exceptional accuracy in monitoring vital signs, with user-friendly modularity and versatile application in various medical environments. Disadvantages: Some users might find the initial setup complex, but comprehensive user manuals are provided to mitigate this.
Product Use in the Field
In practical settings, the Patient Monitor YR02175 is deployed in intensive care and surgical environments. Its reliable measurements of ECG, blood oxygen levels, temperature, and blood pressure provide critical insights that aid healthcare professionals in making informed decisions during patient care.
Recommendations
To maintain optimal functionality, it’s recommended to regularly calibrate the monitor and ensure all sensors and leads are in good condition. Staff training sessions can improve efficiency and reduce potential setup errors.
Features
- 12.1-inch LCD screen for clear data visualization
- Supports both 5-lead and 3-lead ECG modes
- Accurate respiratory and heart rate monitoring
- Sensitivity and precision in SPO2 measurement
- Flexibility with manual and auto NIBP modes
- Audio-video alarm system for critical alerts
Technical Specifications
| Model | YR02175 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 25~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 60~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second | |
| Average Time Constant | <10 Second | |
