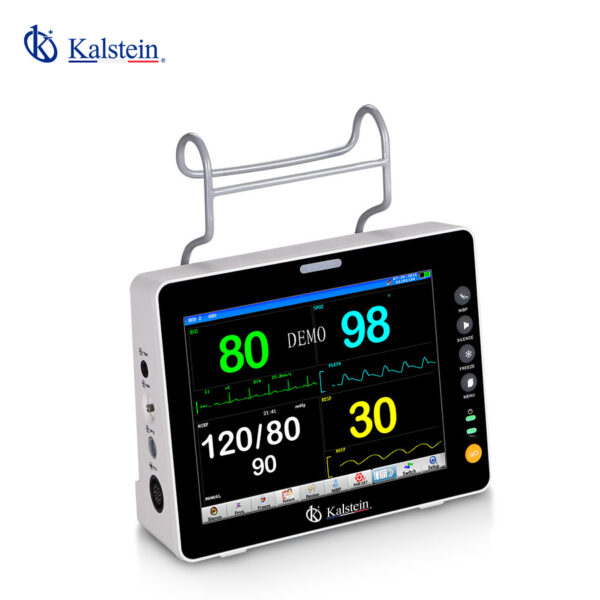

Patient Monitors YR02170 // YR02171 // YR02172

Manufacturer: Kalstein

Description

  • Multi-channel display
  • Big font interface
  • ST and arrhythmia analysis
  • Drug dose calculation and titration table
  • OxyCRG dynamic view display
  • Respiration monitoring with apnea alarms
  • Alarm review, arrhythmia review
  • NIBP over pressure protection
  • Plug-in rechargeable battery, AC/DC available.
  • Supporting wire or wireless network.
Technical Specifications
Model YR02170 YR02171 YR02172
ECG
Lead mode 5 Leads(RA,LA,LL,RL,V)
Connection method I, II, III,AVR,AVL,AVF,V
Lead Mode 3 Leads (RA,LA,LL)
Connection method I, II,III
Waveform 1ch
Gain x250, x500, x1000, x2000
HR Range Adult: 15~300bpm
Neo/Ped 15~350bpm
Accuracy ±1% or ±1bpm
Resolution 1bpm
Sensitivity >200(uVp-p)
Differential input impedance ≥5MΩ
ST segment Monitoring Range
Measure Range -2.0~+2.0mV
Measure Accuracy -0.8mV~+0.8mV
Heart Rate
Measuring range 0~350bpm 20~300bpm
Accuracy ±1bpm
Resolution 1bpm
Sensitivity >200UVp-p
Respiration
Method Impedance between R-F(RA-LL)
Differential Input Impedance >2.5MΩ
Measuring Impedance Range 0.3~3.0 MΩ
Base line Impedance Range 200~4000Ω
Bandwidth 0.1~2.5Hz
Resp. Rate Adult: 2~120BrPM
Neo/Ped 2~150BrPM 0~150BrPM
Resolution 1 BrPM
Accuracy ±2 BrPM
Alarm 10~40S
NIBP
Method Oscillometric
Mode Manual/Auto/STAT
Measuring Interval in AUTO Mode 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)
Measuring Period in STAT Mode 5 Min
Pulse Rate Range 40~240bpm
Alarm Type SYS, DIA, MEAN
Resolution
Pressure 1mmHg
Accuracy Maximum Mean error: 5mmHg
Maximum Standard deviation 8mmHg
SPO2
Display Number of SPO2,waveform of capacity,Pulse
Measuring range 0~100%
Resolution 1%
Accuracy 70~100% (±2%)
Alarm system Audio-video alarm
Pulse rate range 0~300bpm
TEMP
Channel 2
Measuring and Alarm Range 0~50ºC
Resolution 0.1ºC
Accuracy 0.1ºC
Actualization interval about 1 Second.
Average Time Constant <10 Second.

Additional information

Weight N/A
Dimensions N/A
Model

YR02170, YR02171, YR02172
