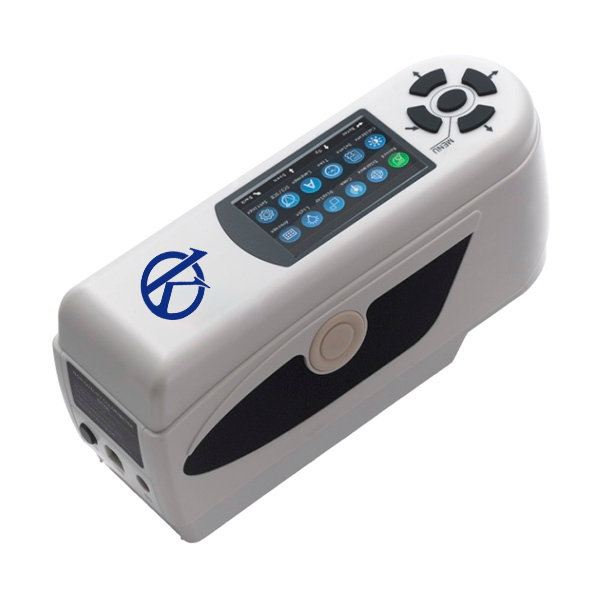

Precision Colorimeter YR05506 // YR05508

ManufacturerKalstein

Description

YR05506 // YR05508 precision colorimeter features with 8/d structure that is very precise. 8mm measurement aperture makes it popular in many applications, such as fabrics, paper, plastic parts, building materials. CSCQ3 software helps perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
Applications
Kalstein  colorimeter spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories. It not only can help to perform color matching and color management studies, but also can control product quality management. Kalstein  colorimeter is equipped with high-end color management software that can connect to PC to achieve more extension functions.
Technical Specifications
Model YR05506 YR05507 YR05508
Illuminating/Viewing Geometry 8/d 8/d 8/d
Measuring Aperture Φ8mm/Φ4mm Φ8mm Φ8mm
Detector Silicon photoelectric diode Silicon photoelectric diode Silicon photoelectric diode
Color Space CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness CIEL*a*b*C*h* CIEL*a*b* CIEL*a*b*C*h* CIEL*a*b*
Color Difference Formula △E*ab △L*a*b* △E*C*h* △ECIE94 △Ehunter △E*ab △L*a*b △E*C*h △E*ab △L*a*b △E*C*h
Light Source D65 D50 A D65 D65
Light Source Device LED blue light excitation LED blue light excitation LED blue light excitation
Errors Between Each Equipment ≤0.40ΔE*ab ≤0.40ΔE*ab ≤0.50ΔE*ab
Storage   100pcs standards 20000pcs samples 100pcs standards 20000pcs samples 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.06 Standard deviation within ΔE*ab 0.07 Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate Average of 30 measurements of standard white plate Average of 30 measurements of standard white plate
Weight   500g 500g 500g
Dimension 205×70×100 mm 205×70×100 mm 205×70×100 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh Rechargeable lithium-ion battery 3.7V@3200mAh Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements 5 years, more than 1.6 million measurements 3 years, more than 1 million measurements
Charging Time 2 hours (first time 8 hours–100% electricity) 2 hours (first time 8 hours–100% electricity) 2 hours (First time 8 hours–100% electricity)
Measurement Times Before Recharging More than 3000 times More than 3000 times More than 3000 times
Operating Temperature/Humidity Range -10~40℃, relative humidity 0~85% with no condensation -10~40℃, relative humidity 0~85% with no condensation -10~40℃, relative humidity 0~85% with no condensation
Data Interface USB USB USB
Extended Aperture (optional) Φ8mm extended aperture, available for measuring concave surface
Printer (optional) Miniature thermal printer Miniature thermal printer Miniature thermal printer, Powder Test Box

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
Model

YR05506, YR05507, YR05508
