Description
Laboratory vacuum freeze dryer is widely used in medicine, pharmaceutical, biological research, chemical and food. The lyophilized articles are easy to store for a long time, and can be restored to the state before lyophilization and maintain the original biochemical characteristics after adding water. The freeze dryer is suitable for laboratory use and meets the requirements of routine lyophilization in most laboratories.
Features
- Setting freeze-drying process
- Controlling the heat rate with shelf electric heating
- 7 Inch Touch Screen
- Stainless steel cold trap and operating table
- A large opening cold trap with pre-freezing function
- Cold Trap Electric Defrost
- Flexible switching of vacuum units (Pa, mBar, etc.)
- Vacuum pump protection function with set the vacuum pump to start the cold trap temperature.
Technical Specifications

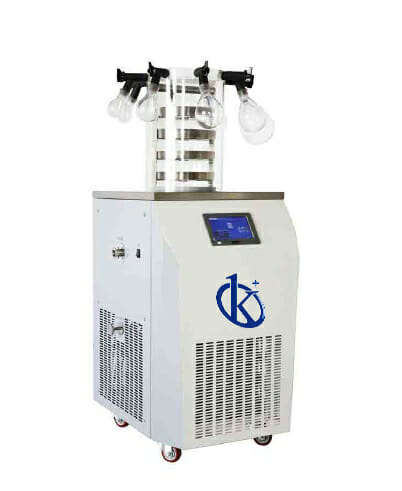

| Model | YR05198 | YR05199 | YR05200 | YR05201 |
| Freeze-dried area | 0.18m²/0.27m² | 0.09m² | 0.18m²/0.27m² | 0.09m² |
| Panel material (material thickness 10mm) | 1.8L/2.7L | 0.9L | 1.8L/2.7L | 0.9L |
| Material Tray | Ф240mm 4/6 layers |
Ф200mm 3 layers |
Ф240mm 4/6 layers |
Ф200mm 3 layers |
| Material plate spacing | 70mm/50mm | 70mm | 70mm/50mm | 70mm |
| Shelf temperature range | -40 ~ +60°C | |||
| Cold trap temperature | ≤ 60 ° C (no load), optional ≤ -80 ° C (no load) | |||
| Water catching capacity | 6 kg/24h | |||
| Ultimate vacuum | ≤ 5pa (no load) | |||
| Power | 1800w | |||
| Host Weight | 105 KG | |||
| Mainframe Dimensions | 630×580×1455mm | 630×580×1455mm | 630×580×1455mm | 630×580×1455mm |
