Description

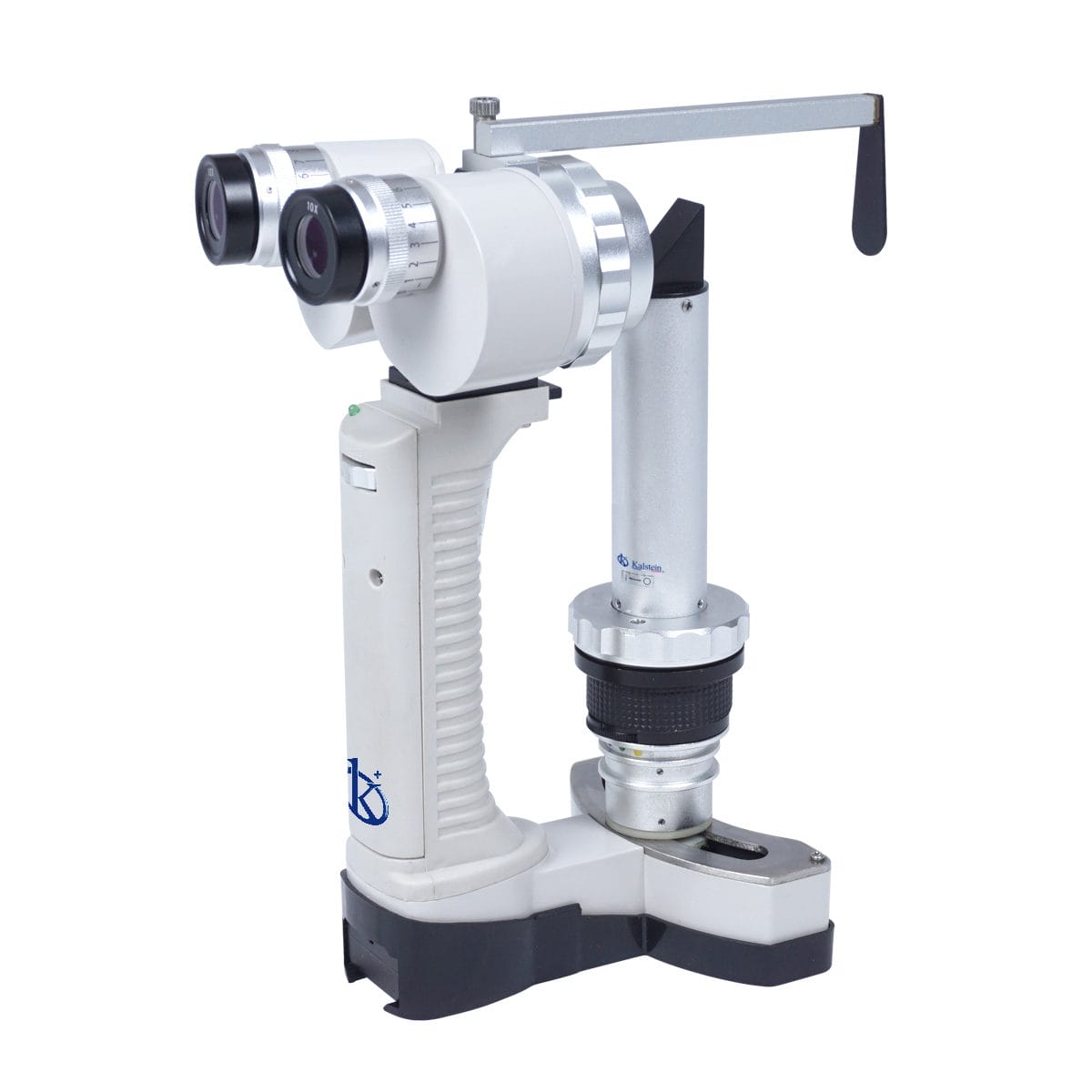

Portable slit lamp adopts high-brightness, cold-light illuminator, without external power supply.
High-brightness LED, cold-light illuminator, its brightness up to 15000 LUX, service lift more than 50000 hours
Sharp slit, the width can be adjusted continuously
Telescopic forehead-rest, easier to observe and adjust the diopter.
Easier to adjust the magnification by revolvable objective lens
Small and light, only 700g including battery
Different filter, Heat filter, light-reducing filter, red filter and cobalt filter
Full power supplied by battery can drive the slit lamp for 5-6 hours.
Technical Specifications
| Model Item | YR06199 | |
|
Microscope
|
Microscope Type | Converging |
| Objective Lens | 1.0X、1.6X | |
| Eyepiece | 10X | |
| Total Magnifications | 10X、16X | |
| Working Distance | 81mm | |
| Intraocular Distance | 45mm―78mm | |
| Diopter Adjustment | -8D―+8D | |
|
Illumination
|
Slit Width | 0―12mm Continuous |
| Slit Height | 1-12mm | |
| Slit Angle | ф0.2mm，ф1mm，ф5mm，ф12mm | |
| Filters | Heat Absorption; Yellow; Redfree(Green); Cobalt Blue | |
| Illumination Bulb | High-Brightness White LED | |
| Brightness | ≥30000Lux | |
|
Power
|
LED Working Voltage | d. c. 3 V |
| Battery | Li-ion Battery; 7.4V, 680mAh. Full Battery can supply 5-6 hours continuously | |
|
Weight and Dimension
|
Dimension | 169.5mm×109.5mm×228.5mm |
| Weight | ≤4kg (Including Battery) | |
