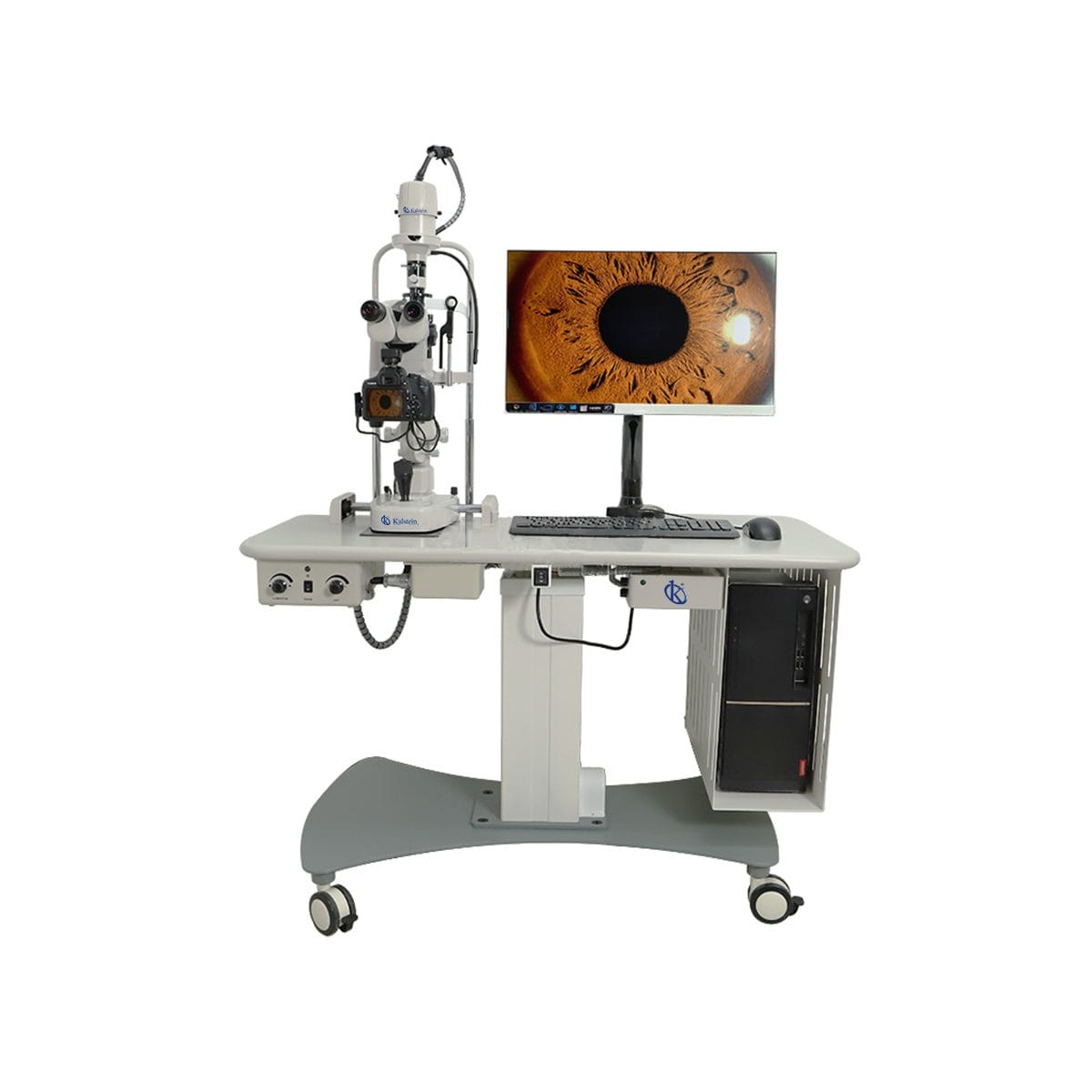

Veterinary Digital Slit Lamp YR06200

ManufacturerKalstein

Description

Professional color digital image acquisition system: able to see images digitized restore the display, dedicated digital image acquisition resolution greater than 2000 lines

Unique case storage capabilities: able to see the real picture is stored in the computer, and through the distribution of the optical memory permanently preserved, better respond to medical malpractice

Unique background lighting system: the darkroom can be compensated partially fractured outside lighting

Powerful image analysis and processing functions: analysis of the lesion, measurement, calculation and image enhancement, study table for the immediate help provide reliable, able to make a comparative analysis of the therapeutic effect

Equipped with professional color image inkjet printers: the image can be printed with high accuracy output

Galilean optical body using special high-resolution digital images slit lamp microscope optical interfaces

Technical Specifications
Model YR06200
Microscope Type Parallel angle type
Eyepiece 12.5X
Total magnification microscope 6X , 10X , 16X , 25X , 40X
Visual field diameter (mm) φ37 , φ23 , Ø14 , Ø8 .7 , size 5.7
Diopter adjustment -5D ~ +5 D
Fissure width / height width 0mm ~ 10mm continuously adjustable, high- 1mm ~ 10 continuously adjustable
Spot diameter (mm) Ø10 , Ø8 , Ø5 , Ø3 , Phi] 2 , φ0.2
Crack angle 0 ° ~ 180 ° continuously adjustable
Fissure angle 5°, 10°, 15°, 20°
Lighting imported From Germany tungsten 12V/60Hz
Magnification 0.794X (± 8%)
Filters insulation Film, minus rays, no red tablets, cobalt blue chip
Input voltage 110V/220V (± 10%) 50/60Hz
Input Power 60VA
Input voltage tungsten halogen 4.5V , 6.0V , 9.0V , 10.5V , 12V
Fixation lamp 3.5V



Additional information

Weight 25 kg
Dimensions 92 × 56 × 53 cm
