Understanding the YR06217 Neonatal LED Phototherapy Unit: A Technical Glossary

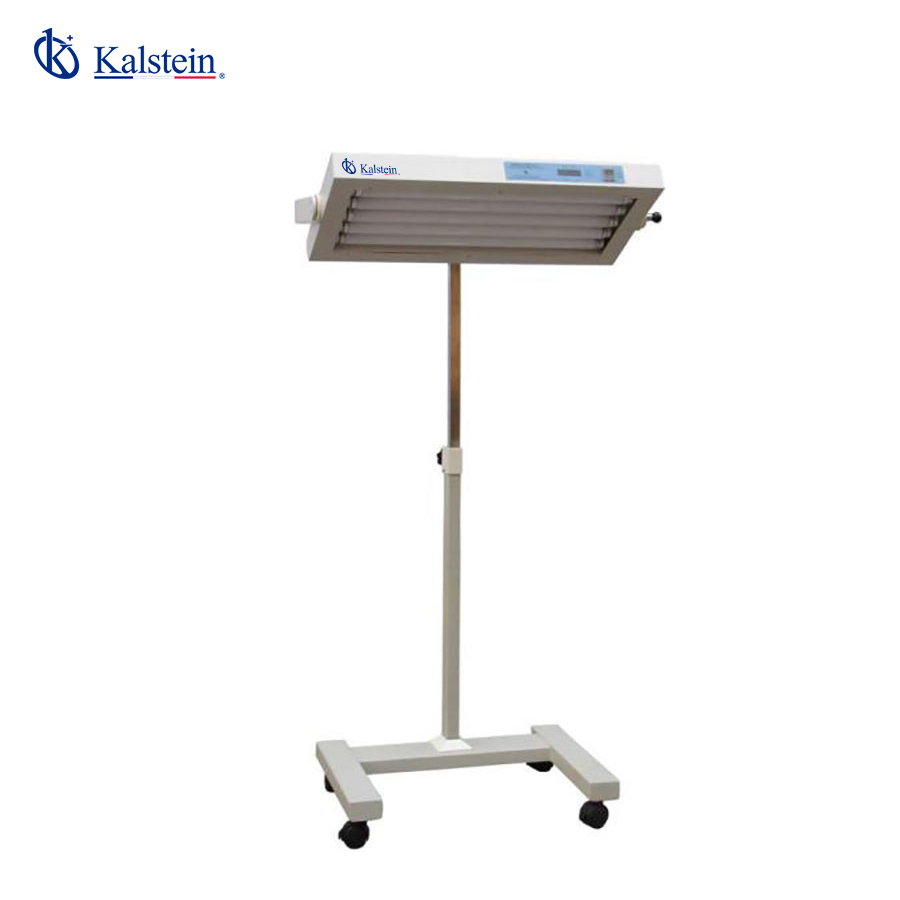

The YR06217 Neonatal LED Phototherapy Unit is a specialized device designed for the effective treatment of newborns suffering from jaundice. This article provides a comprehensive technical glossary focused on the terminology and specifications relevant to the YR06217, ensuring clinicians and operators are well-informed for optimal use.
Technical Specifications of the YR06217
| Specification | Details |
|---|---|
| Model | YR06217 |
| Input Power | <150VA |
| Light Source | Blue tube/ LED tube |
| Effective Life of Light Source | 2,000/50,000 hours |
| Wavelength | 400-550 nm |
| Irradiance Treatment Distance | 10~500px |
| Effective Area | 1125px×600px |
| Maximum Total Bilirubin Irradiance (Ebi max) | >=2000μW/cm2 |
| Average in Effective Area Surface | >=400μW/cm2 |
| Time Display Accuracy | 2h±1min |
| Operating Noise | <=55dB(A) |
| Time Display Range | 9999h 59min |
| Adjustable Angle | 30°, 60°, 90° |
| Adjustable Height | 1100mm~1500mm |
Key Terminology Related to the YR06217
Understanding the technical jargon associated with the YR06217 is critical for effective operation and troubleshooting. Below is a glossary of key terms and their relevance to the device:
| Term | Definition |
|---|---|
| Phototherapy | A treatment method using specific light wavelengths to reduce elevated bilirubin levels in neonates. |
| Bilirubin | A yellow pigment formed from the breakdown of red blood cells, elevated levels can cause jaundice in newborns. |
| LED Tube | A light source that uses light-emitting diodes, offering high efficiency and durability for phototherapy. |
| Wavelength | The distance between successive peaks of a wave, crucial for targeting bilirubin absorption during treatment. |
| Irradiance | The power of light per unit area, important for assessing the efficacy of phototherapy. |
| Effective Area | The area over which the phototherapy device effectively treats the patient. |
| Operating Noise | The sound produced by the equipment, which should be minimized during operation to avoid disturbing patients. |
| Adjustable Angle | The ability to change the angle of the light source to optimize treatment for the neonate. |
| Time Display | A digital display showing the elapsed therapy time, crucial for monitoring treatment duration. |
Common Applications of the YR06217
The YR06217 Neonatal LED Phototherapy Unit is primarily used in clinical settings such as hospitals and neonatal care units. The device is essential in treating jaundice effectively, ensuring that newborns receive the appropriate levels of light for maximum therapeutic benefit.
Installation and Setup of the YR06217
Proper installation and setup are crucial for ensuring that the YR06217 operates at peak efficiency. Operators should follow these guidelines:
- Unbox the unit and check for all components as per the checklist.
- Ensure the unit is placed on a stable surface, capable of supporting its weight and adjusted height.
- Connect the device to a power source ensuring voltage compatibility.
- Calibrate the timer and settings according to the manufacturer's specifications.
Common setup mistakes to avoid include placing the unit too far from the infant or incorrectly adjusting the angle of the light source.
Troubleshooting Common Issues with the YR06217
Operators may encounter various issues while using the YR06217. Below are troubleshooting sections based on common symptoms:
Equipment Does Not Power On
Check the power source and ensure all connections are secure. If the issue persists, inspect the power cable for damage.
Error Code E-03
This error typically indicates a malfunction with the light source. Check the light source for proper installation and integrity.
Inconsistent Readings
Ensure the device is calibrated correctly and that the light source is clean. Regular maintenance can help prevent this issue.
Frequently Asked Questions
What is the wavelength range of the YR06217 Neonatal LED Phototherapy Unit?
The wavelength range of the YR06217 is 400-550 nm, which is effective for targeting bilirubin levels in neonates.
How is the irradiance measured in the YR06217?
Irradiance in the YR06217 is measured in μW/cm2, indicating the power of light emitted in relation to the area treated.
What maintenance is required for the YR06217?
Regular maintenance includes checking the light source for functionality, cleaning the device, and calibrating the timer as needed.
How can the height of the YR06217 be adjusted?
The height of the YR06217 can be adjusted between 1100mm and 1500mm, accommodating different treatment scenarios.
What is the effective life of the light source in the YR06217?
The effective life of the light source in the YR06217 is approximately 2,000 hours for blue tubes and up to 50,000 hours for LED tubes.
