Technical Performance and Safety of Microscope Trinocular YR0258
The Microscope Trinocular YR0258 is not just a standard microscope; it combines excellent optical functions with a robust design, making it suitable for various laboratory applications. This article explores the technical specifications, market pricing, field usage, and more.

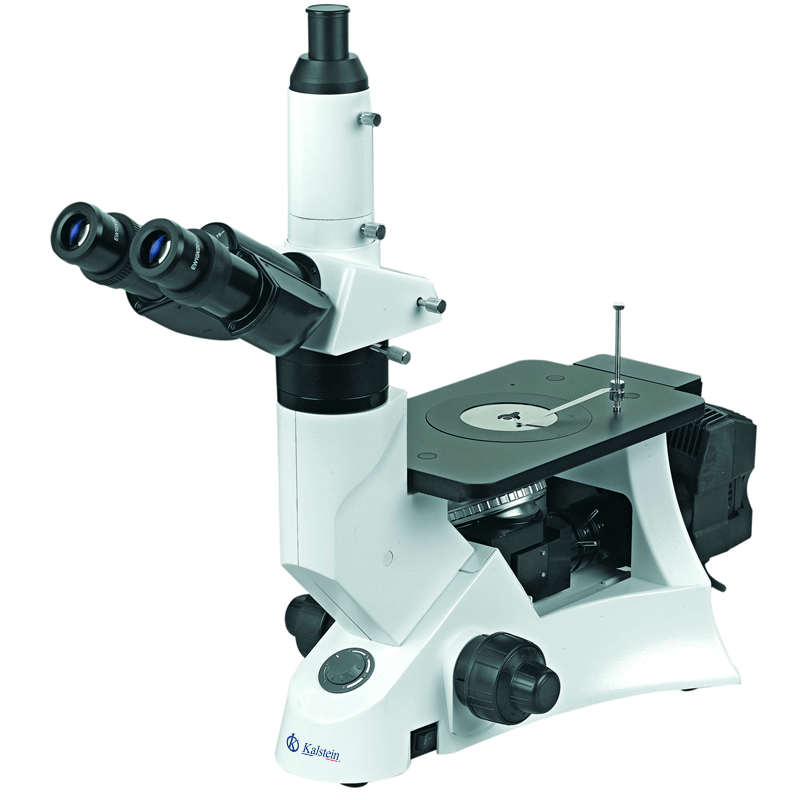

Product Description
This high-performance trinocular microscope features an infinite optical system that provides superior optical functions. Its stable support structure, advanced stage design, and user-friendly operation make it extensively used in institutes and laboratories for observing and identifying the structures of various metals and alloys.
| Feature | Description |
|---|---|
| Model | YR0258 (current) |
| Viewing Head | Trinocular head inclined at 30°, interpupillary distance 48-75 mm |
| Eyepiece | Extra wide field high point eyepiece EW10×/20 |
| Achromatic Objective of Infinite Plan | 4×/0.1, 10×/0.25, 20×/0.40, 40×/0.60, 50×/0.75 (optional), 80×/0.90 (optional) |
| Revolver | Quintuple revolving nosepiece |
| Stage | Flat stage, mechanical stage optional with coaxial XY control, movement range 120×78 mm |
| Focusing | Coaxial coarse and fine adjustment, vertical movement of the objective, coarse travel 37.7 mm per rotation, fine travel 0.2 mm per rotation |
| Kohler Illumination | Halogen lamp 6V/30W |
| Filters | Blue, yellow, green, and frosted glass |
| Polarization Accessory | Included |
| Photo Attachment | Optional |
| Video Adapter | C-mount video adapter optional |
Market Price
The Microscope Trinocular YR0258 is competitively priced in the laboratory equipment market, with a cost of approximately $1,117.00. This price point reflects the quality and advanced features offered by the model, making it an attractive investment for educational institutes and research laboratories.
Frequently Asked Questions
What are the main features of the Microscope Trinocular YR0258?
The main features include an infinite optical system, a trinocular viewing head, an extra wide field eyepiece, multiple objective lenses, and a stable mechanical stage for enhanced observation capabilities.
What is the typical usage of the YR0258 microscope?
The YR0258 microscope is widely used in institutes and laboratories for the observation and identification of various metals and alloys, as well as in educational settings for teaching purposes.
How can the eyepieces and objectives be changed?
The eyepieces and objective lenses can be easily swapped out using the quintuple revolving nosepiece, allowing for quick adjustments based on the required magnification and observation needs.
What type of illumination does the microscope use?
The microscope utilizes a Kohler illumination system with a halogen bulb rated at 6V/30W, which provides bright and even lighting for clear observation.
Is the microscope suitable for polarizing applications?
Yes, the Microscope Trinocular YR0258 includes a polarization accessory, making it suitable for polarizing light microscopy applications.
What is the weight of the Microscope YR0258?
The net weight of the microscope is not specified, but the gross weight is approximately 20 kg, ensuring a stable setup during use.
Pros and Cons
Pros
- Excellent optical performance with infinite optical system.
- Robust construction for stability in laboratory environments.
- Versatile magnification options with multiple objective lenses.
- Easy to use with comfortable design for prolonged observation.
Cons
- Higher price point compared to basic models.
- Some features may be underutilized in basic applications.
Field Usage
The Microscope Trinocular YR0258 is primarily used in educational institutions, research laboratories, and industries where precise material observation is required. Its infinite optical system is particularly advantageous for material science research, metallurgy, and biological studies, providing clarity and detail necessary for analysis.
Recommendations
For those considering the Microscope Trinocular YR0258, it is recommended to assess your specific needs in terms of magnification and observation techniques. Investing in this model will be beneficial for professionals looking for high-quality performance and durability in a laboratory setting. To ensure optimal usage, familiarize yourself with the different eyepieces and objectives that can be used along with the microscope.
If you are interested in the Microscope Trinocular YR0258, request a quote to explore how it can meet your laboratory needs.
