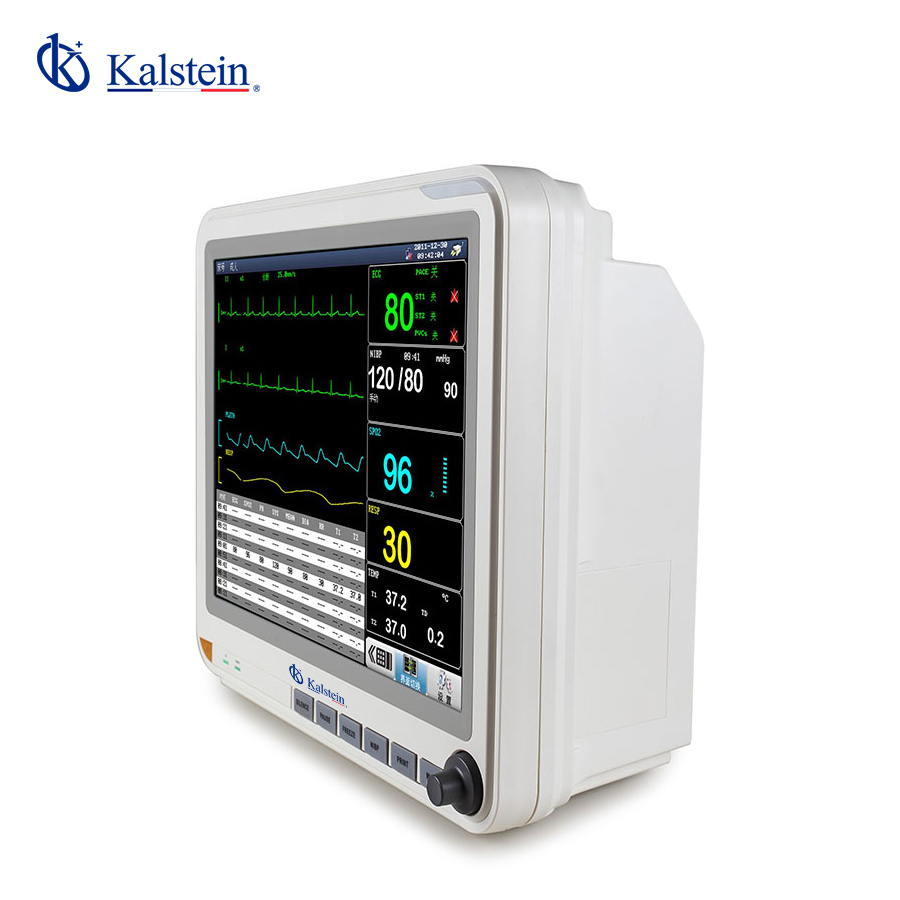

Bedside Monitor YR02174
The Bedside Monitor YR02174 is an advanced 15-inch multi-parameter patient monitor designed for comprehensive patient monitoring in various clinical settings. It features a standard configuration that includes SpO2, RESP, NIBP, PR/HR, ECG, and dual TEMP measurement capabilities. For adaptability, it offers optional configurations such as a 12-lead ECG, IBP, ETCO2, printer, touch screen, and various mounting solutions like wall mount and trolley. With its user-friendly design, the YR02174 ensures accurate and efficient patient data management, making it an ideal choice for healthcare professionals.
This page provides an overview of the Bedside Monitor YR02174, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in United Kingdom, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider
Before selecting the Bedside Monitor YR02174, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
The Bedside Monitor YR02174 is widely used in hospitals, clinics, and emergency care units to monitor vital signs and provide real-time patient data to healthcare professionals. Its versatility allows it to adapt to different patient needs, from routine monitoring to critical care applications.
For the market in United Kingdom, evaluation should consider local context such as NHS, university research, UKCA/CE marking and match the product to the real workload of the laboratory.
Market price range
The Bedside Monitor YR02174 falls into the mid-range category of patient monitors, with prices typically ranging from $900 to $1,800 USD, depending on the options and configurations selected. This range ensures accessibility for a wide range of healthcare facilities looking to balance budget considerations with high-quality monitoring capabilities.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In United Kingdom, budget comparison should include CE references, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Value for money
Advantages: The YR02174 offers a robust set of features for comprehensive patient monitoring, is customizable with multiple configurations, and includes a large 15-inch display for ease of use. Disadvantages: The need for additional optional modules might increase the initial investment cost, and training may be required for optimal use of its advanced features.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages
The Bedside Monitor YR02174 is widely used in hospitals, clinics, and emergency care units to monitor vital signs and provide real-time patient data to healthcare professionals. Its versatility allows it to adapt to different patient needs, from routine monitoring to critical care applications.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance
To maximize the functionality of the Bedside Monitor YR02174, ensure regular maintenance by qualified technicians and take advantage of the optional modules to tailor the monitor's capabilities to meet specific clinical needs. Users are encouraged to familiarize themselves fully with the monitor’s interface and features to enhance patient care.
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to United Kingdom helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Bedside Monitor YR02174
Bedside Monitor YR02174
- Monitor de paciente multiparamétrico de 15 pulgadas
- Configuración estándar: SpO2, RESP, NIBP, PR/HR, ECG, 2-TEMP
- Opciones: ECG de 12 derivaciones, IBP, 2-IBP, ETCO2, Impresora, Soporte de pared, Carro, Pantalla táctil
| Model | YR02174 | |
ECG | Main mode | 5 leads (RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | 200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
Heart Rate | Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | 200UVp-p | |
Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | 2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 minutes | |
| Pulse Rate | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
SPO2 | Display | Number of SPO2, waveform of capacity, pulse |
| Measuring range | 0~100% | |
