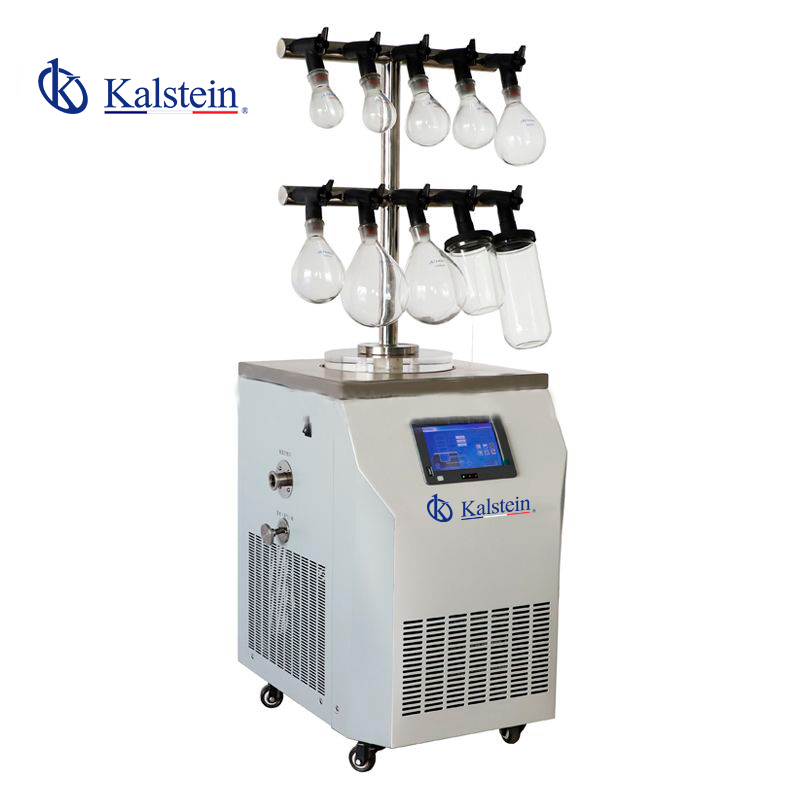

T Type Vertical Lab Freeze Dryer YR05193-1

Manufacturer: Kalstein

Description

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production etc. After the freeze drying process,a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.The vacuum freezing drying techinology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture in the vacuum state.

Features
  • CFC Free refrigeration
  • LCD display drying curves, English interface
  • Opening of condenser, condenser with pre-freezing function
  • Low noise compressor, good efficiency,long service life
  • Condenser and operation panel are all stainless steel
  • Drying Chamber with organic glass is safe and visible
  • Shelf and tray are stainless steel, tray spacing can be customized
  • Small volume , easy and convenient operation
  • Nitrogen valve is optional
  • Eutectic point test device is optional
  • Communication interface is optional
  • Cascade refrigeration is optional , applied for -80℃ device
Technical Specifications
Model YR05193-1
Condenser capacity 3 kg /24h
Condenser temperature -55℃ (-80 ℃ optional )
 Vacuum degree < 10 Pa
Rubber sealed valve 24 pcs, for 24 ampule
special requirement customized
Cooling  Air,draughty, ambient temperature≤25℃
Vacuum pump flow rate 2 L/S, 7.2 m3/h
Voltage  220V ,50 Hz
Power 750  W
Host dimension 560×460×(720+440) mm
Host Weight 62 kg
