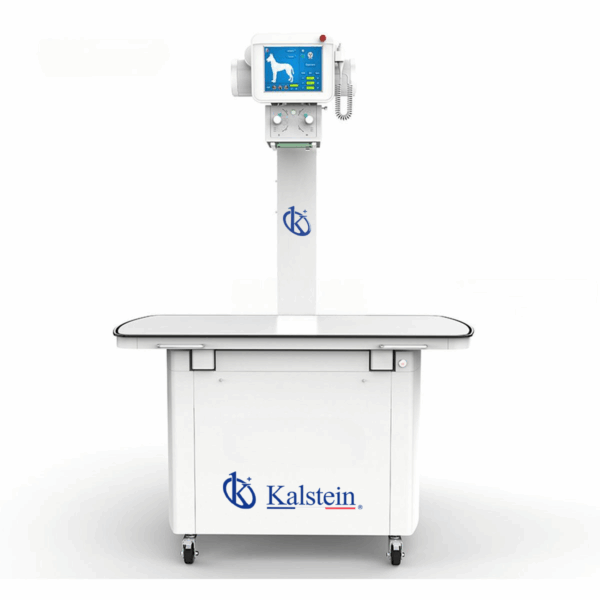

320mA Stationary Veterinary Digital X-Ray (DR) YR06163

ManufacturerKalstein

Description

Soft touch user panel

Digital displays of kV, mAs and time

High frequency inverter type generator

Overload protection for kV, mA, Time and Temp

Self-manageable APR function with memory keys

Technical Specifications
Model YR06163
Maximum output power 20kW
Range of tube current 32~320mA
Tube voltage range of radiography 40kv~120kv
Range of exposure time 10ms~5000ms
mAs range 0.32mAs~320mAs
Input voltage range AC 220V±22V
Communication interface RS-232
Other Capacity lock automatically, fault diagnosis automatically, self-protection
Max. Tube voltage 120kV
Focus Small focus:1.0mm Large focus:2.0mm
Anode input power Small focus:20KW Large focus:40KW
Anode speed 2800 R/M
Target angle 17.5°
Anode heat content 100kJ(140kHU)

Additional information

Weight 105 kg
Dimensions 55 × 48 × 80 cm
