Turbidity Meter
Turbidimeters are equipment that through optical analysis measure the turbidity of a liquid. That is, they are devices capable of measuring the size and concentration of particles in a suspension by diffusing light at 90 ° in a tube. It can be portable or fixed.
These instruments determine how cloudy a liquid is, in fact, they are considered the most widely used instrumental method today, among others for its ease of use, high precision and repeatability. Turbidimeters require no warm-up time and provide marked long-term performance without the need for lamp replacement.
Types of Turbidity Meter a Laboratory May Need

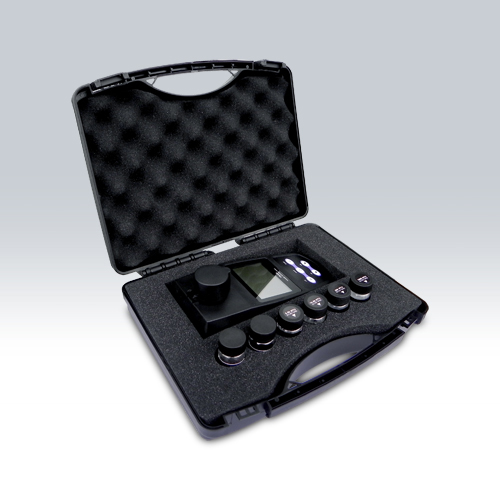

Portable turbidity meter YR01841
High-performance portable turbidity meter, 2 to 5 points calibration, selectable 4 turbidity units. The meter is suitable for process control....

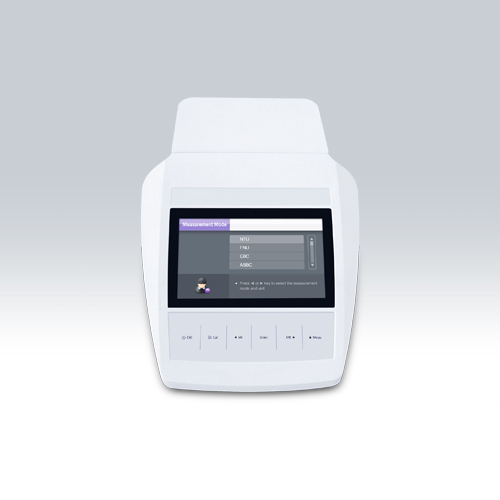

Benchtop turbidity meter YR01842
Multiparameter benchtop turbidity meter with the Total Suspended Solids measurement mode, 2 to 7 points calibration, selectable...
Our Best Selling Turbidity Meter
The amount of light reflected for a specific particle density depends on the properties of the particles such as their shape, color and reflectivity. From an optical detector, with the light source at 90 degrees, the density of the particles will be a function of the light reflected by the particles suspended in the detector.
Turbidity, is a measure of the opacity or haze of a fluid, it was originally thought as a qualitative measure of the aesthetics of drinking water. It is not a measure of actual particles in the water; it actually measures how much those particles affect the light that is transmitted through the water, or how that light reflects off the particles in the water.
| Model | YR01841 |
| Range | 0 to 1100 NTU, 0 to 275 EBC, 0 to 9999 ASBC |
| Resolution | 0.01 (0 to 99 NTU), 0.1 (100 to 999 NTU), 1 (1000 to 1100 NTU) |
| Accuracy | ±2% of reading (0~500 NTU), ±3% of reading (501~1100 NTU) |
| Calibration Points | 2 to 5 points |
| Calibration Standards | 0.02, 10, 200, 500, 1000 NTU |
| Light Source | Infrared-emitting diode (850nm wavelength) |
| Detector | Silicon photodiode |
| Stray Light | <0.02 NTU |
| Sample Volume | 30ml |
| Memory | Stores up to 100 data sets |
| Output | USB communication interface |
| Display | Custom LCD (60×40 mm) |
| Power | 3×1.5V AA batteries or DC5V power adapter |
| Auto-Power Off | 15 minutes after last key pressed |
| Dimensions | 180(L)×85(W)×70(H)mm |
| Weight | 300g |
Analysis of the best Turbidity Meters for your Laboratory
What are the steps to use and calibrate a Turbidimeter?
A Turbidimeter is an instrument used to measure suspended particles of a liquid or dissolved gas, through an optical analysis...
Turbidimeter or turbidity meter. How should it be used?
A Turbidimeter is a device that allows evaluating how cloudy a liquid is, that is, it determines the turbidity. It does this...
How do I use a Turbidity Meter?
Turbidity is an essential factor to determine the water quality in its purification, the more transparent the purest (with higher quality)...
Laboratory Turbidimeter: operation
A Turbidimeter is a Laboratory device used to measure suspended particles in a liquid, that is, to measure their...
Turbidity Meter Model Catalog on Sale
Guides to becoming a Turbidity Meter expert
Kalstein Turbidimeters
- Kalstein
Turbidimeters are equipment that through optical analysis measure the turbidity of a liquid. That is, they are devices capable of...
Turbidity Meter: What does it measure?
- Kalstein
These devices allow us to measure the turbidity of water, being turbidity an indicator of water quality, once the turbidity level is...
Turbidity Meter: What does it measure?
- Kalstein
To know the degree to which water loses its transparency, it is necessary and indispensable in the quality...
What are the differences between a Dissolved Oxygen Meter and a Turbidity Meter?
It is important to note that there are different devices to measure these standards. In turn, the choice of these will depend on the use given to them in the laboratories...
Turbidity Meter Video in operation
In this section you can find, our Turbidity Meter in operation, packaged, receiving service, etc.
Turbidity Meter operating
A Turbidimeter measures suspended particles with a beam (beam source) and a light detector fixed at 90° from the original beam. The density of the particles is a function of the light reflected by the particles suspended in the detector. The amount of light reflected for a given particle density depends on the properties of the particles such as their shape, color, and reflectivity.
Turbidity can be estimated with equipment such as the spectrophotometer and the colorimeter, which can measure the decrease in transmitted light due to the blockage generated by particles. However, these measurements are not considered valid by the international regulatory bodies because they do not comply with the accepted definition of turbidity, they propose at all times the use of the turbidimeter.
Frequently Asked Questions about Turbidity Meters
How to know the prices of the Turbidity Meters?
To know the price of the Turbidity Meter we invite you to send us an email with your request through the contact form.
What are the lead times of the Turdibity Meters?
The delivery time of your Kalstein product will depend on the following:
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen may be either air or sea.
- Equipment in stock:
–Delivery Time (Air): 15-30 days.
– Delivery Time (Maritime): 45-60 days.
- Equipment not in stock:
– Delivery Time (Air): 30-60 days.
– Delivery Time (Maritime): 60-90 days.
How to make a purchase of Turdibity Meters?
You can purchase through:
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
