Climate Chamber
A controlled climate chamber is a space where different environmental conditions are faked to determine the behavior of the material to be tested. The cameras offer a wide range of applications such as environmental simulation, accelerated aging, quality control, materials and systems research, product stability study, wet conditioning, behavior analysis of animal and plant species, among others.
Therefore, it means that the walk-in climate chamber is that large thermostatic unit, that a person can access. They are manufactured with special insulating panels, allowing to improve the weather conditions, generated inside the chamber. This type of climatic chamber is tailored to the measure, and each project is studied independently.
Types of Chambers Climatiques a Laboratory May Need
Plant Growth Chamber
Large screen LED operating status at any monitoring time; adaptive control temperature constant; original imported temperature sensor to reduce temperature impact; high efficiency isolation technology to ensure indoor and outdoor consistency; high security; CE certification.
Stimulate various climatic conditions, especially used in sample testing, life testing, long-term experiments and cultivation of plants, seeds and microorganisms. Suitable for scientific, pharmaceutical, food, materials science, cosmetics, tobacco, microbes, chemical industry, electronics and other fields.
Environmental Chamber
Presentation Features
- It has a wide range of temperature and humidity regulation, which can meet various user needs.
- It adopts a balanced temperature regulation mode, reaches an ideal temperature environment. It has stable balanced heating to carry out stable and high precision temperature control, timer and overtemperature alarm function.
- The test chamber has the function of automatically selecting the cold operation circuit with the temperature set. Simple operation. The equipment has the function of overpressure protection compressor.
In Kalstein you can find the Ideal Climatic Cameras for your Laboratory
Drug Stability Test Chamber YR05350 // YR05352
It is mainly used in pharmaceutical industry, medicine, biotechnology, food industry and other industries...
Climate Simulation Chamber YR05347 // YR05349
Simulate daytime and night light changes and weather conditions, to meet ladder programming for...
Illumination (Ray radiation) Incubator YR05331 // YR05333
Balanced cooling, automatic defrosting, environmental protection without fluorineR134 coolant, LCD screen...

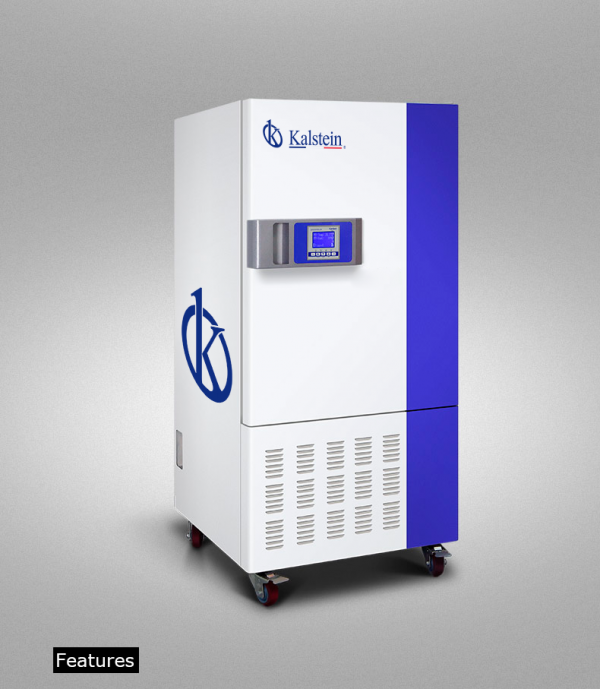

Artificial Climate Incubator YR05328 // YR05330
Quality compressor with delay protection function; no high efficiency fluorine coolant, more energy saving...

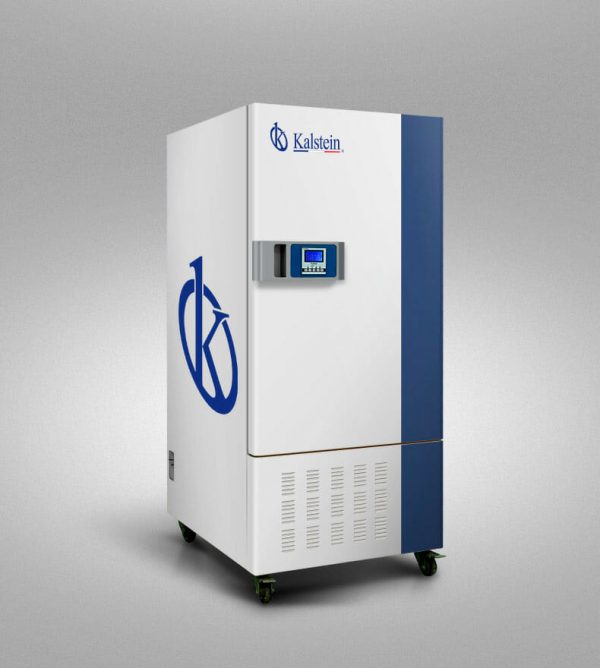

Our Best Selling Climate Chamber
Product introduction
- World famous compressor: balanced refrigeration technology, auto defrost, multiple security system, long time running, environmental protection, high efficiency and energy saving.
- Auto-defrost function: original rapid heat pump defrost technology, for continuous operation, effectively prevent frost because of continuous operation of evaporator.
- Refrigeration effect manual control system: meet customer’s terrible work environment.
- Imported DuPont SUVA R134 an environmental refrigerant. For cleaner world, for better work condition.
- To save energy, to reduce the cost.
| YR05334 | YR05335 | YR05336 | YR05337 | YR05338 | YR05339 | |
| Convection Mode | Forced-convection | Forced-convection | ||||
| Control mode | 30 Programmable PID Control System | 30 Programmable PID Control System | ||||
| Sterilization function | — | — | ||||
| Temperature range (℃) | 0~60℃ | 0~60℃ | ||||
| Humidity range | 40~95%RH | 40~95%RH | ||||
| Temp. display resolution(℃) | 0.1 | 0.1 | ||||
| Temp. fluctuation(℃)(10-40℃) | ±0.5 | ±0.5 | ||||
| Temp. spatial deviation(℃)(10-40℃) | ±1 | ±1.5 | ±1 | ±1.5 | ||
| Humidity fluctuation(RH) | ±2% | ±2% | ||||
| Timing range | 0～99Hour ，Or 0～9999min | 0～99Hour ，Or 0～9999min | ||||
| Running environment | environment temp.10-30;relative humidity below 70% | environment temp.10-30;relative humidity below 70% | ||||
| Heat insulator | imported environmental protection material | imported environmental protection material | ||||
| External dimension (mm)(H×W×D) | 1410×650×680 | 1730×650×740 | 1700×745×930 | 1410×650×680 | 1730×650×740 | 1700×745×930 |
| Dimension of inner chamber (mm) | 757×508×389 | 1088×508×449 | 1052×601×639 | 757×508×389 | 1088×508×449 | 1052×601×639 |
| Volume of inner chamber (L) (H×W×D) | 150 | 250 | 400 | 150 | 250 | 400 |
| Material of internal surface | SUS304 Interior steel materials | SUS304 Interior steel materials | ||||
| Shelves | 3 | 4 | 4 | 3 | 4 | 4 |
| Rated power(W) | 1080 | 1100 | 1350 | 1080 | 1100 | 1350 |
| Input voltage | AC220V/50Hz | AC220V/50Hz | ||||
| Net weight (KG) | 107.5 | 136 | 158.5 | 107.5 | 136 | 158.5 |
| Gross weight (KG) | 133 | 162.5 | 188 | 133 | 162.5 | 188 |
| Package size(mm) | 1605×760×830 | 1935×760×890 | 1907×815×1090 | 1605×760×830 | 1935×760×890 | 1907×815×1090 |
| Additional Features | SUS304 stainless steel cavity / Standard tray num. 3 / 0°C～65°C | SUS304 stainless steel cavity / Standard tray num. 3 / 0°C～65°C with UV sterilization function |
||||
Analysis of the best Camera Climatic for your Laboratory
How many types Of Climate Chambers are There?
The Climatic Chamber is a unit able to build the will of stable situations of temperature and relative humidity...

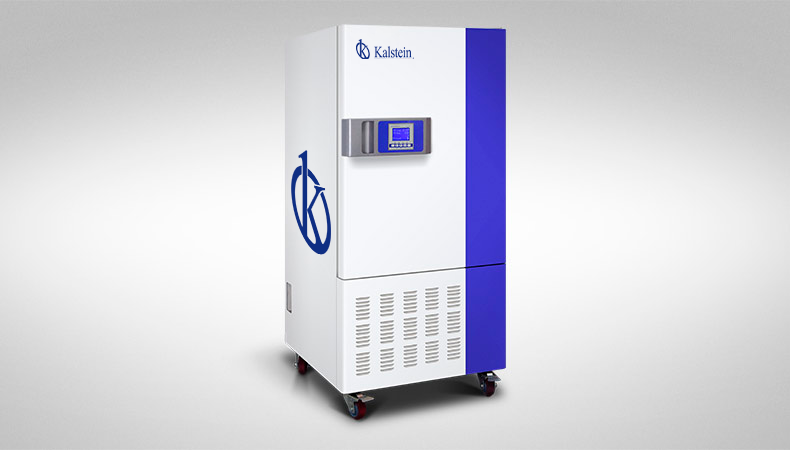

Why are Climate Cameras important?
Climatic Chambers are equipment or devices used in Laboratories for the purpose of reproducing controlled conditions...
What is a Walk-in Climate Camera?
A controlled Climate Chamber is a space where different environmental conditions are faked to determine...
What is a Stability Study Climate Chamber?
The Stability Chamber is an equipment that preserves samples, through studies involving climatic factors...
Catalog of Climatic Chambers models on offer
-
Environmental Chamber YR05340 // YR05346-1
Select options -
Climate Simulation Chamber YR05347 // YR05349
Select options -
Strong Illumination Stability Test Chamber YR05353 // YR05353-2
Select options -
Artificial Climate Incubator YR05328 // YR05330
Select options -
Drug Stability Test Chamber YR05350 // YR05352
Select options -

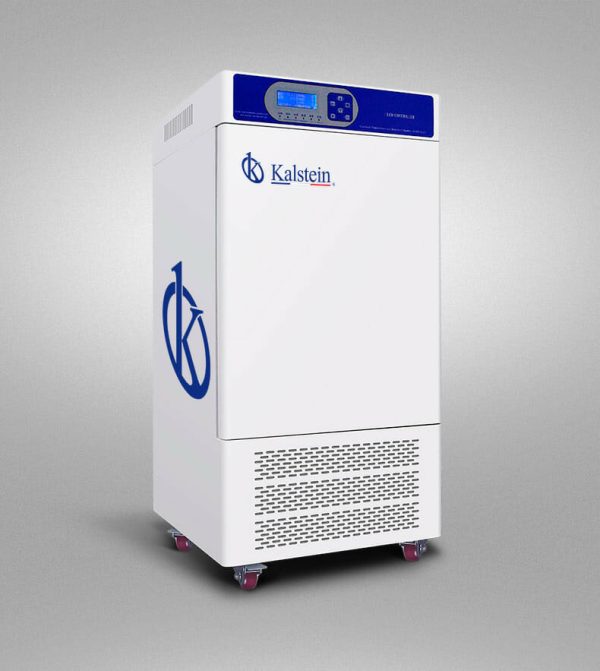

Humidity Chamber YR05802 // YR05807
Select options -
Constant Climate Chamber YR05334 // YR05339
Select options -
Comprehensive Drug Stability Test Chamber YR05354 // YR05356
Select options
Guides to becoming an expert in Climate Chambers
At Kalstein we are manufacturers of equipment of the highest quality Climatic Chambers and that have the best technology
in the market, we leave you some guides to know more about our product...
What are the Main Applications of Climate Chambers?
Climatic Chambers are units used in Laboratories, research centers and universities to carry out studies or tests and check the behavior...
What are Chambers of Culture?
- Kalstein
The chambers of cultures, are peculiar units, capable for the growth of vegetables, plants, seeds, small living organisms...
Plant Growth Chambers: What are they used for?
Plant Growth Chambers are specialized Chambers that are used to monitor climatic conditions during the study of plants.
What is a plant growth chamber?
The plant growth chamber is a technological and innovative team, able to produce within it the simulation of a climate environment for the cultivation of seeds, tissues and other biological materials, providing natural factors such as sunlight, temperature and humidity. In addition, through monitoring, it allows monitoring of evolution and storage, allowing researchers to establish long-term tests.
Frequently Asked Questions about Climatic Chambers
How to know the prices of the Climatic Chambers?
To know the price of the Climatic Cameras we invite you to send us an email with your request through the contact form.
What are the delivery times of the Climatic Chambers?
The delivery time of your Kalstein product will depend on the following:
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen may be either air or sea.
- Equipment in stock:
- Delivery Time (Air): 15-30 days.
- Delivery Time (Maritime): 45-60 days.
- Equipment not in stock:
- Delivery Time (Air): 30-60 days.
- Delivery Time (Maritime): 60-90 days.
How to make a purchase of the Climatic Chambers?
You can purchase through:
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
