Infusion Pump
An Infusion Pump is a Medical device that works by producing mechanical pressure to move fluids through a tube into the patient’s vascular system, allowing fluids to be delivered more accurately. These kits facilitate parenteral administration of drugs and solutions and are used mainly in situations where accuracy and consistent drug delivery are essential.
Thus, these teams play a key role throughout the operating room, especially in induction and maintenance of total intravenous anesthesia, but also in administering drugs needed by the patient while in the operating room.
INFUSION PUMP KALSTEIN
At Kalstein you can find the ideal Infusion Pump for your clinic

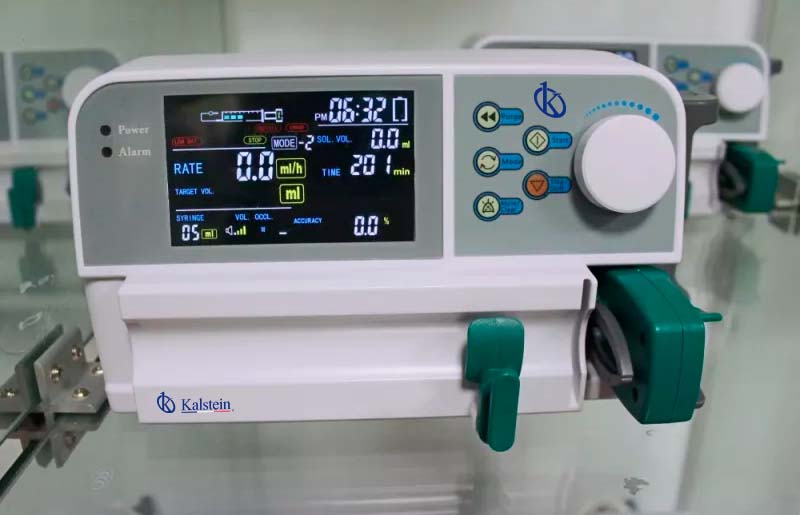

Syringe Pump YR05165
4.3 inches large LCD screen, with different colors show. With LCD backlight, can use in various lighting conditions. Time display, convenience for show and time memory. Simultaneous display: Time, Batter...

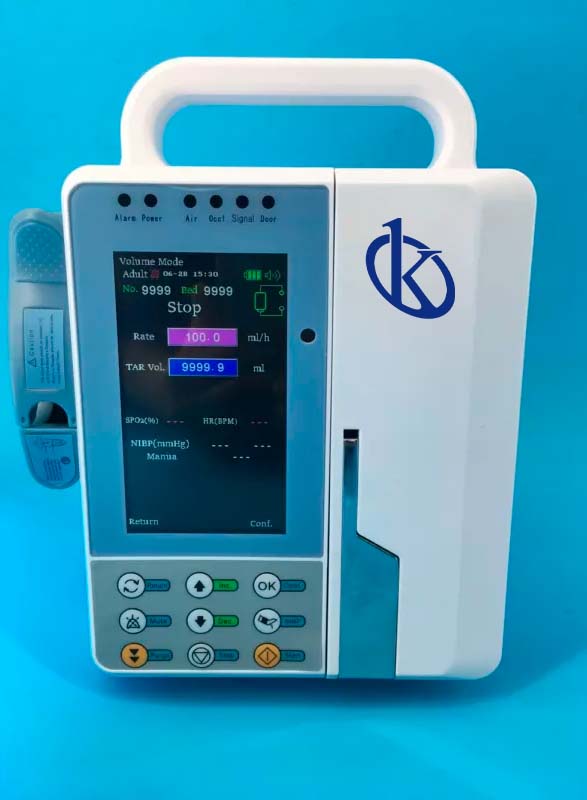

4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YR05164
4.3-inch color LCD screen, with backlight, suitable for working in various ambient light conditions. infusion monitoring syst...
Our Infusion Pump best seller
4.3-inch color LCD screen, with backlight, suitable for working in various ambient light conditions. infusion monitoring system (optional), the status of each pump is displayed in real time at the central station via wireless transmission. Displays time, battery, infusion status, mode, rate, target volume, accumulated volume, target volume, sound volume, pressure, department, bed number, I / V equipment, temperature of the medicine
Large, backlit LCD display suitable for working in various ambient light conditions.
Disposable IV set of any brand is suitable for this pump
Three working modes: rate / volume / time mode
Purge, KVO function
The heating function is optional, suitable for infusing in winter or if there is a requirement for the temperature of the medicine.
The central monitoring system is optional, the infusion status of each pump is displayed in real time at the central station via wireless transmission.
Simple and convenient in operation, intuitive presence of working status.
Audible and visible alarms
Alarm: Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle.
| Pump type | Drip Type Infusion Pump | ||
| Pumping Form | peristaltic fingers | ||
| Adjustable Fall Rate Range | 1 ~ 400 drops / min (step: 1 drop / min) | ||
| Adjustable Volume Rate Range | 1 ~ 1200 ml / h (when 1 ~ 99.9 ml / h, step: 0.1 ml / h; greater than 99.9 ml / h, step: 1 ml / h) | ||
| Flow Accuracy | Within 3% or so (using manufacturer’s designated IV kit or high quality calibrated IV kit) | ||
| Mechanical precision | within 2% or so | ||
| Purge Rate | 800ml / h | ||
| KVO rate | 1 ml / hour (1 ~ 300 ml / hour) | ||
| 3 ml / h (more than 300 ml / h) | |||
| Infusion Volume Range | 1 ml ~ 9999.9 ml (step: 0.1 ml) | ||
| Maximum Accumulated Volume | 9999.9 ml (step: 0.1 ml) | ||
| Time interval | 1 min ~ 9999 min (step: 1 min) | ||
| Occlusion Alarm Threshold | Height: 800 mmHg + -200 mmHg (106.7 kPa + -26.7 kPa) | ||
| Medium: 500 mmHg + -100 mmHg (66.7 kPa + -13.3 kPa) | |||
| Low: 300 mmHg + -100 mmHg (40.7 kPa + -13.3 kPa) | |||
| Alarm | Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle. | ||
| Air Bubble Detector Method | ultrasonic wave, sensitivity: greater than or equal | ||
| 25 l | |||
| Fuse | F1AL / 250V (“F” indicates fast, “L” indicates low breaking power), 2 pieces (installed inside the pump). | ||
| Power supply | AC 85 ~ 265V, 50 / 60Hz; | ||
| Internal Battery | 11.1V rechargeable lithium-ion battery. Capacity: greater than or equal to 2000 mAh; | ||
| The pump can run more than 4 hours at a flow rate of 25ml / h after charging for 8 hours (average flow rate specified by GB 9706.27-2005). | |||
| Energy | less than or equal to 40VA | ||
| Size | 188mm (length) x 198mm (width) x 228mm (height) | ||
| Weight | 2.2 kg | ||
| Environmental requirements | Transport | ||
| Ambient temperature: -30 ° C ~ + 55 ° C | |||
| Relative humidity: 20% ~ 95% (non-condensing) | |||
| Atmospheric pressure: 70kPa ~ 106kPa | |||
| Storage | |||
| Ambient temperature: -30 ° C ~ + 55 ° C | |||
| Relative humidity: 20% ~ 95% | |||
| Atmospheric pressure: 70kPa ~ 106kPa | |||
| Operation | |||
| Ambient temperature: + 5 ~ + 40 ° C | |||
| Relative humidity: 20% ~ 90% | |||
| Atmospheric pressure: 86kPa ~ 106kPas | |||
| Calibration function | disposable IV set of any brand is suitable for this pump | ||
| Three Working Modes | Rate / volume / time mode | ||
| Alarm | Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle. | ||
Analysis of the best Infusion Pump for your clinic
Infusion pumps: what are they and what are they used for?
These medical equipment are the precise solution to fluid administration in the patient, since the infusion pumps were introduced in hospitals and clinic...
What are the uses of an infusion pump?
An infusion pump is a medical device that is used to move the fluids used in medicine (solutions, drugs, blood) through a tube into the patient’s vascular system, allowing mo...
Care and maintenance of an infusion pump
An infusion pump is a medical equipment used in clinics and hospitals to mobilize fluids such as solutions, drugs, blood and blood derivatives through a connector into t...
What are the benefits of using an infusion pump?
Infusion pumps are medical devices that allow fluid to be delivered to the patient’s body in controlled quantities at the right time. What allows liquids for medic...
Catalog of models of Infusion Pump on offer
KALSTEIN UPDATED
Guidelines for you to become an expert in Infusion Pump
The Infusion Pump equipment are essential products in your clinic, we provide you with guidance and recommendations for a better use, so you can work like an expert.
Infusion pumps, types and uses
Which is an infusion pump in nursing?
How does an infusion pump work?
Why use an infusion pump?
Frequently asked questions from our customers about Infusion Pump
The delivery time of your Kalstein product will depend on the following:
- Whether the equipment you are interested in is in stock or if it needs to be manufactured.
- The type of freight you have chosen, which can be either air or sea.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Sea): 45-60 days.
- Equipment not in stock:
– Delivery Time (Air): 30-60 days.
– Delivery Time (Sea): 60-90 days.
You can make your purchase through:
- By email: [email protected]
- By phone: +33 (0) 1 70 39 26 50
- Online shopping: Through the official Kalstein website in your country.
At Kalstein, we provide our customers with inductions and technical support through new online methods. You can visit our induction videos, technical assistance, and guidance provided by a Kalstein team through our Youtube channel (Kalstein English). HERE
