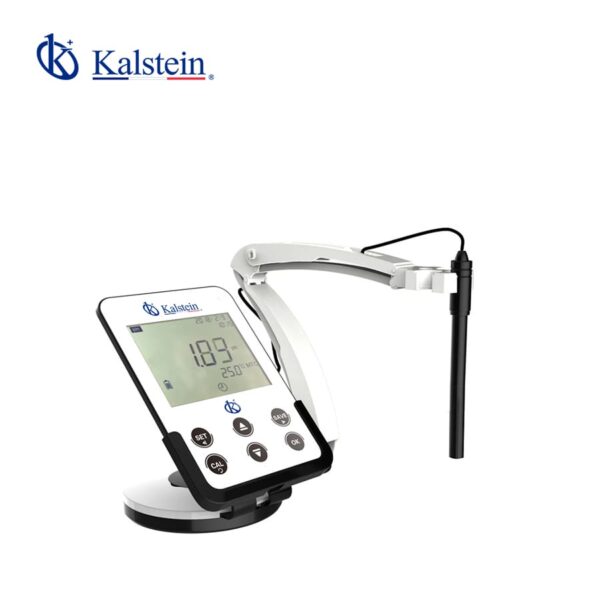

Benchtop Dissolved Oxygen Meter YR01832

Manufacturer:ย Kalstein

Description

  • 5-inch LCD screen with 150ยฐ viewing angle for clear reading out of 5-meter.
  • Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, automatic power-off and low voltage alarm, etc.
  • Two USB interfaces for PC connection, battery charging, and data transfer.
  • 3.5mm electrode interface makes it very easy for electrode connection.
  • Automatic recognition of different electrodes. The electrode with built-in chip can automatically stores and retrieve calibration data after connecting with meter.
  • Can store 300 sets of data including readings, GLP data, date and time
  • It has functions of ACT, manual salinity compensation and manual pressure compensation.
  • Polarographic DO electrode, short polarization time (3-5 mins).
Technical Specifications
Model YR01832
Measuring range
DO (0.000 ~ 90)mg/L (ppm)
Temp. (-10 ~ 110)ยบC
Resolution
DO 0.01/0.1
Temp. 0.1ยบC
Saturation (0.0 ~ 600)%
Air Pressure 1
Accuracy
DO (0 ~ 100) ppt
Temp. (5 ~ 60)ยบC: range: ยฑ0.5ยบC; other range: ยฑ1.0ยบC
Saturation 0.10%
Air Pressure ยฑ2%
Compensation
Temp. (0 ~ 50)ยบC , auto
Salinity (0.0 ~ 50.0)g/L, manual
Air Pressure (80 ~ 105)kPa, manual
Display parameters Concentration, Saturation, Temperature
DO Saturation ยฑ0.5%
Stability (ยฑ0.07mg/L)/1h
Response Time โ‰ค30s (25ยบC, 90% response)
Other Technical Parameters
Display 5-Inch white backlit LCD screen
Data storage 200 sets
Power DC 5V/1A
Communication connector Micro USB & Standard USB
Dimension/N.W. 180 x 130 x 14mm/280g
Working Condition
Ambient Temp. 5 ~ 40ยบC
Ambientl Humidity 5 ~ 85%
IP Grade IP54



Additional information

Weight 2,5 kg
Dimensions 47 × 43 × 10 cm
