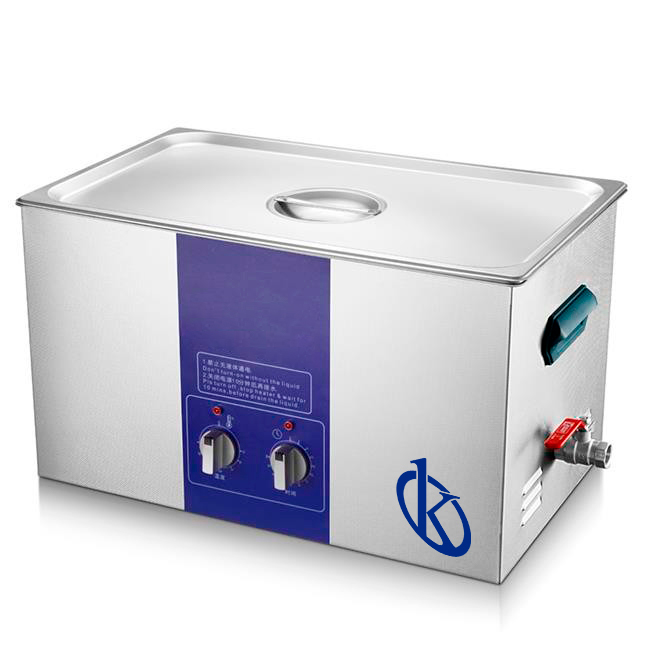

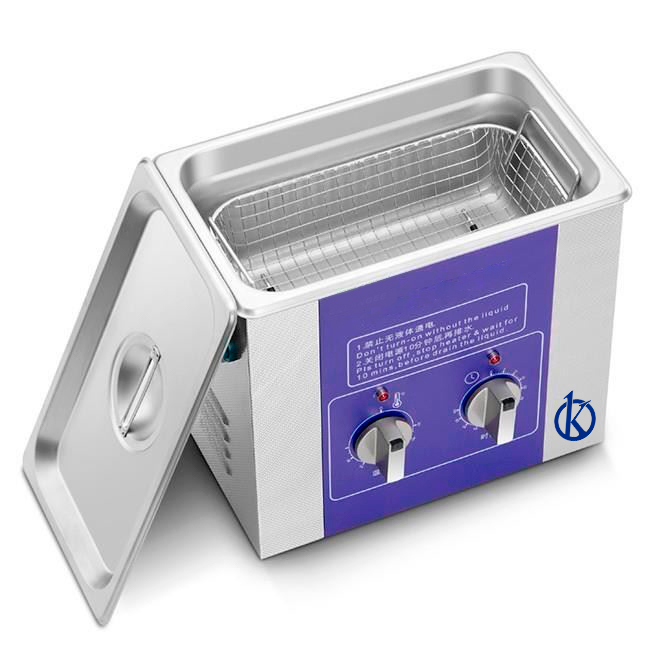

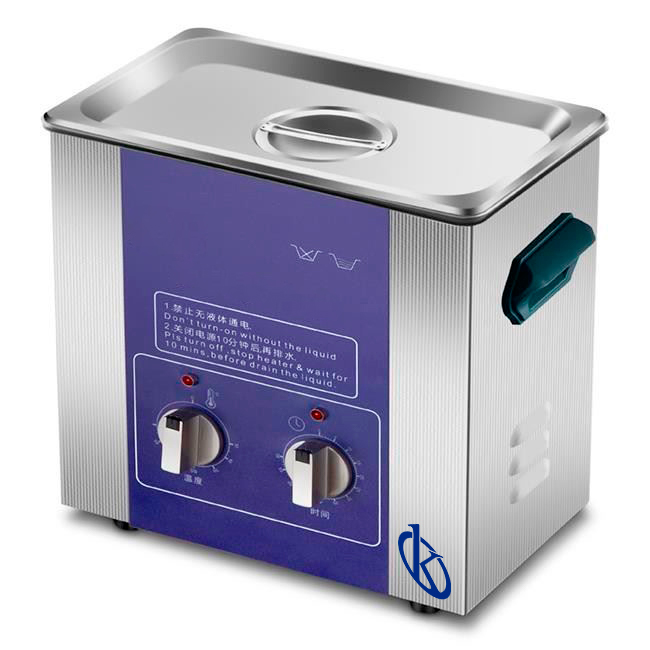

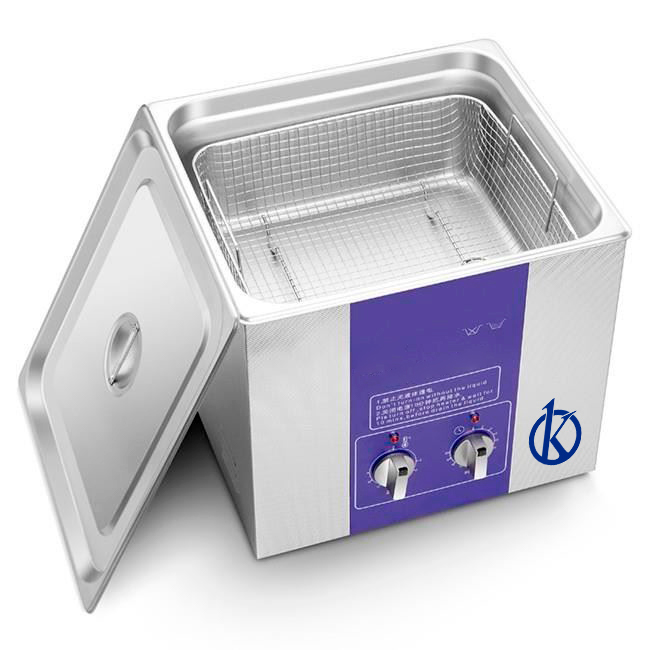

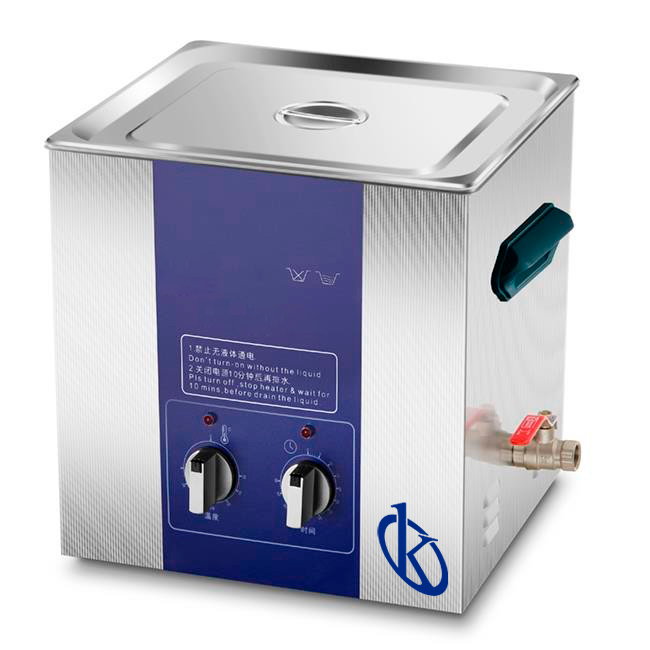

Desktop Mechanical Heated Ultrasonic Cleaner YR05234 // YR05243

Manufacturer: Kalstein

Product Description

Ultrasonic Cleaner Machine YR05234 Series Ultrasonic Cleaner Machine has a various capacity of internal operation, high cleaning accuracy.It can effectively clean the tiny dirt particles, and also clean the deep hole, the small seam and the workpiece concealment.

Product Features
  • Proprietary MCU-sweep ultrasonic generator driver circuit to present better cleaning performance and to minimize noise level.
  • Proprietary industrial ultrasonic transducer with high Q value and energy conversion efficiency and long service life.
  • Imported high-strength glue, staple-free bonding, and long service life of tank.
  • Mechanical timed cleaning for 1-60 mins and digital heating control, arbitrary set temperature up to 80 ℃.
  • Internal tank fabricated of 1.0mm SUS304 stainless steel to present good performance and long service life.
  • Cleaning basket made of 304 stainless steel and electro-polished.Outer Shell made of high-quality stainless steel to present good corrosion resistance.
Model Internal Dimensions External Dimensions Volume(L) Gross Weight

(KG)

Ultrasonic

Power(W)

Heating Powery(W) Drain valve Frequency

(KHz)

Time

(Min)

Heating

Temperature(℃)

YR05234 240*135*100 268*170*243 3.2 4.77 120 100
no
40
1-60
30~80
YR05235 240*135*150 268*170*290 5.0 5.4 120 200
YR05236 300*150*100 325*178*243 4.8 5.65 180 200 no
YR05237 302*150*150 325*178*290 6.8 6.2 180 200 no
YR05238 300*240*150 368*270*290 11 8.5 240 300 yes
YR05239 330*300*150 397*320*317 15 11.5 360 400 yes
YR05240 330*300*200 397*320*368 20 12.5 360 400
yes
YR05241 500*300*150 560*320*317 22 14.5 480 500
YR05242
500*300*200
560*320*385
30
16.0
600
500
yes
YR05243 28

Additional Information

Weight N/A
Dimensions N/A
Model

YR05234, YR05235, YR05236, YR05237, YR05238, YR05239, YR05240, YR05241, YR05242, YR05243
