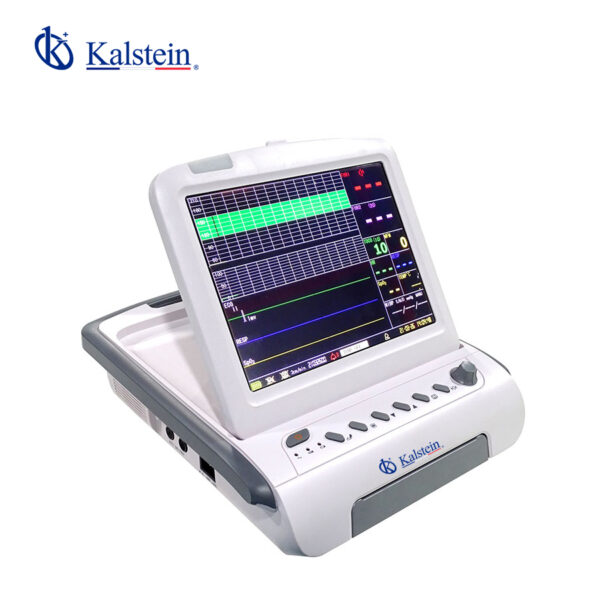

Doppler Ultrasound Fetal Monitor YR02181

Manufacturer: Kalstein

Description

  • Display: 12.1 inches color TFT screen, folding 90 degrees
  • Resolution: 800*600
  • Trace: 6 Waveforms (Max)
  • Standard Configuration: FHR1, TOCO, FM, Recorder
  • Optional Configuration: Fetal Stimulator, FHR2, Trolley
Technical Specifications
Model YR02181
TOCO Measurement Range: 0-100 units
SpO2 Measurement Measurement Range: 70%~99%
Measure Accuracy: ±3% error
HR Measurement Measurement Range: 30bpm~240bpm
Measure Accuracy: ±2 bpm
NIBP Measurement Measurement Range SYS 6.7~32.0kPa(50~240mmHg)
MEAN: 3.4~26.6kPa(25~200mmHg)
DIA: 2.0~24.0ka(15~180mmHg)
Temperature Temperature Arrange:0~50 ºC
Resolution: 0.1 ºC
Accuracy: 0.1 ºC( excluded the error caused by transducer)
Display LCD shows the FHR trace, TOCO tracd, FM, Doctor Event Mark, Time, Volume etc monitor state, and also it can store and playback.
Dimension: 350L×320W×85H(mm)
Net Weight: 3.5 kg

Additional information

Weight 9 kg
Dimensions 52,5 × 44,5 × 29,5 cm
