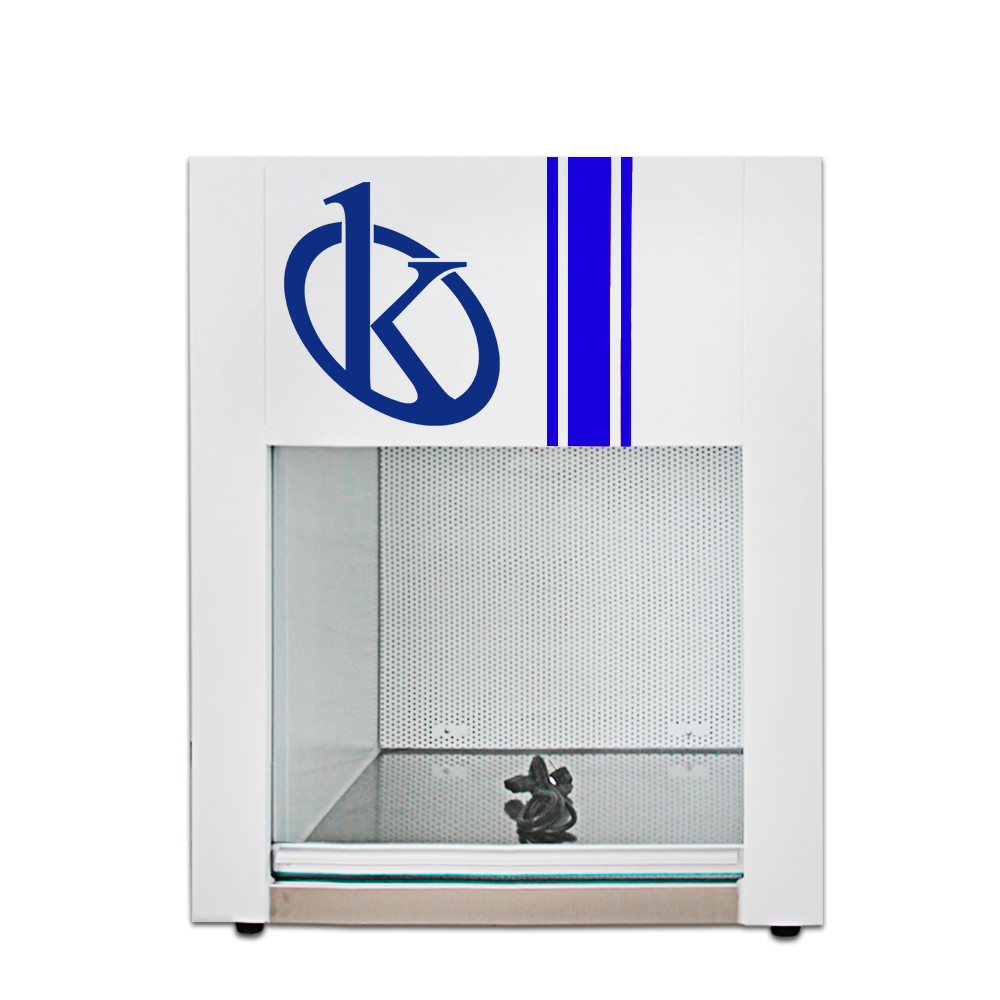

Horizontal Laminar Flow Cabinet YR05723

ManufacturerKalstein

Description

The YR05723 Horizontal Laminar Flow Cabinet is designed to provide a clean, dust-free, and aseptic environment, ideal for laboratories and research areas. This desktop unit is primarily used in fields like medicine, biological engineering, and scientific experiments, offering complete control over air purity. Its structure, made from welded cold-rolled steel plates with an electrostatically sprayed surface, ensures durability and corrosion resistance. The cabinet also features a nearly closed glass damper and a ventilation system controlled by a remote switch, allowing you to adjust the airflow speed (fast or slow) to maintain optimal air conditions.

Market Price

The YR05723 Horizontal Laminar Flow Cabinet is priced between $560 and $600, depending on the supplier and additional features. This price range reflects the high-quality materials and advanced air purification technology it offers. It’s an excellent investment for labs needing strict cleanliness standards while maximizing space, thanks to its compact design, which fits easily on any workbench.

Frequently Asked Questions

  • What cleanliness level does the YR05723 cabinet offer?
    It guarantees a Class 100 cleanliness level, ensuring air free of contaminants for high-purity environments.
  • Is adjusting the airflow speed difficult?
    No, the ventilation system has a remote switch that makes it easy to toggle between fast and slow speeds as needed.
  • Is it suitable for small spaces?
    Yes, its compact and lightweight design fits easily on any workbench, making it perfect for laboratories with limited space.

Advantages and Disadvantages

The key advantages of the YR05723 Laminar Flow Cabinet include its compact size, ease of operation, and ability to ensure a contaminant-free environment. Additionally, its adjustable airflow keeps the unit operating under ideal conditions. However, its small work area may not be suitable for projects requiring larger sample handling.

Field Use

This unit is perfect for medical, biotechnological, and pharmaceutical research labs, where air cleanliness is crucial to protect samples and avoid contamination. Its horizontal airflow prevents external particles from entering, which is essential for scientific experiments and high-precision production processes.

Recommendations

To maintain the YR05723 Laminar Flow Cabinet’s performance, regular maintenance is important. Clean the air filters frequently and check the UV lamp to ensure the work environment remains sterile. Monitoring the airflow within recommended parameters helps prevent unwanted particle buildup.

Don’t miss the chance to enhance the safety and efficiency of your lab. Request a quote today through Kalstein Plus and discover how the YR05723 Laminar Flow Cabinet can transform your workspace, providing a clean, controlled environment at all times.

Technical Parameters

Model  YR05723
Cleanliness level Class 100@≥0.5μM (US Federal 209E)
Number of Colonies ≤0.5pcs/dish·hour (Φ90mm culture plate)
Average Wind Speed 0.25~0.45m/s(Fast and slow)
Noise ≤62dB(A)
Vibration half peak ≤5μM(x、y、z direction)
Illuminance ≥300Lx
Power Supply AC single-phase 220V/50Hz
Working area

W1×D1×H1

490×350×490
Overall dimension

W×D×H

650×530×850
High efficiency filter specification and quantity 470×455×38×1
Specification and quantity of fluorescent lamp/ultraviolet lamp 5W×1/10W×1

Additional information

Weight 70 kg
Dimensions 63 × 73 × 100 cm
