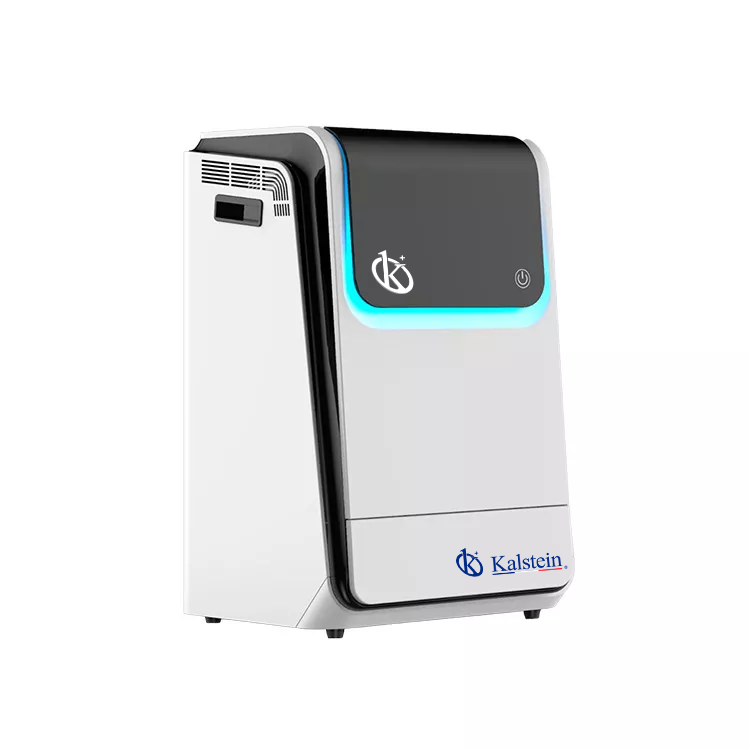

Multifunctional Imager YR06210-YR06211


Product Description

The Multifunctional Imagers provide high performance with ease of use for visible light (RGB) and far red/near infrared (FR/NIR) fluorescence and chemiluminescence detection and all general gel documentation applications. They adopt electronic lifting platforms to adjust the best capture area for diverse sizes of the different samples. The removable PC, which is an optional accessory, runs quickly and feasibly, and avoids any after sales risks caused by embedded Windows Pad.

  • Super sensitive Cooled digital Camera
  • Wide range of applications
  • Electronic lifting platform
  • Optional removable PC
  • Intuitive Software for unlimited users.
Technical Specifications
Model YR06210 YR06211
Chemilluminescence Imaging, ECL Western Blotting YES YES
Fluorescence Imaging, Fluorescent Western Blotting YES YES
Gel Doc Application YES YES
Protein gel;SDS Pages YES YES
Standard Parameters
Sensor Back illuminated SCMOS Sensor Front illuminated CCD Sensor
Resolution 9.0Megapixels 6 Megapixels
Pixel Size 3.76 × 3.76 μm 4.54 x 4.54 μm
Temperature -30 °C regulated
Dynamic Range 4.8OD
Pixel density 16bit(65536 Grey scales)
Lens F0.95 as standard (optional F0.8) Auto focus
Chemilluminescence Sample tray Electronic Lifting Platform for diverse sizes of western blotting membranes
DNA/RNA detection Electronic Lifting Blue LED Transmission for DNA/RNA detection
Protein gel;SDS Pages Electronic Lifting White LED Transmission for Protein Gels
Software SHST Capture and Analysis Software for unlimited number of users
Optional Accessories
Epi-UV, RGB and NIR fluorescent detection
Removable industrial computer, 13.1 Inch Touch Screen, Intel processor

Additional Information

Weight 50 kg
Dimensions 52 × 56 × 110 cm

YR06210, YR06211
