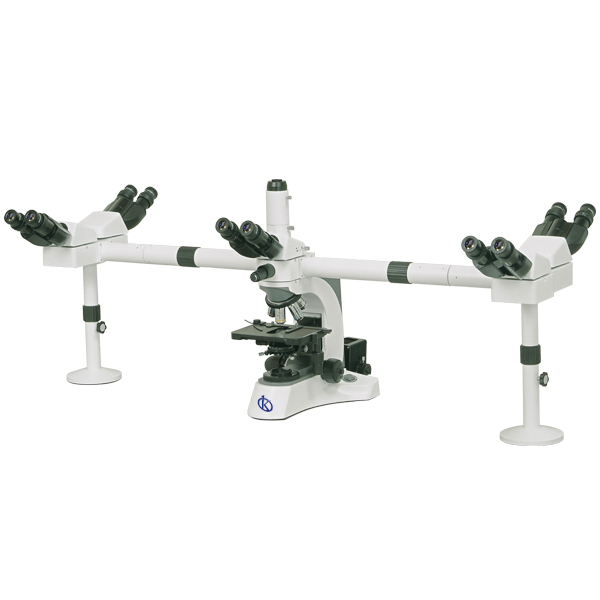

Multivision binocular microscope YR0232 // YR0235

Manufacturer: Kalstein

Description

Modular multi-viewing systems offer exceptional image quality for each viewer thanks to their precision-coated glass optics. The accessory connects to a microscope and allows multiple users to simultaneously view the same specimen for a true microscope feel. Standard systems are available for 2, 3, 4, 4, 5 and 10 users, and customized systems with up to 20 viewing stations can be delivered according to customer specifications.

  • Multi-viewing microscopes allow people to observe specimen at the same time.
  • With the features of infinite optical system, effective illumination, LED pointer and images
  • coherence, it is widely used in clinic, scientific research and teaching demonstration.

Technical Specification
Model YR0232 YR0233 YR0234 YR0235
Optical system Infinity Optical System ⚫ ⚫ ⚫ ⚫
Visualization Head Uncompensated trinocular head, 30° inclined, 360° rotatable, iterpupillary distance 48-75mm, rotatable 360°, iterpupillary distance 48-75mm 1 piece 1 piece 1 piece 1 piece
Uncompensated binocular head, 30° inclined, 360° rotatable, iterpupillary distance 48-75mm, rotatable 360°, iterpupillary distance 48-75mm 4 pieces 2 pieces 1 pieces 1 pieces
Ocular EW10x/20 Extra Wide Field Eyepiece 10 pieces 6 pieces 4 pieces 4 pieces
Muserola Quintuple Reverse Revolver ⚫ ⚫ ⚫ ⚫
Target Infinity plan achromatic objective 4x, 10x, 40x, 100x ⚫ ⚫ ⚫ ⚫
Capacitor Swing capacitor NA0.9/0.25 ⚫ ⚫ ⚫ ⚫
Approach Coaxial coaxial fine and coarse focus adjustment, fine divisipon 0.001mm ⚫ ⚫ ⚫ ⚫
Stage Double-layer mechanical stage 185x142mm, moving range 75x55mm ⚫ ⚫ ⚫ ⚫
Kohler Lighting External lighting, halogen lamp 24V/100W ⚫ ⚫ ⚫ ⚫
Cursor Green LED pointer, adjustable brightness ⚫ ⚫ ⚫ ⚫
Dual color pointer, adjustable brightness ⚪ ⚪ ⚪ ⚪
Photo Attachment ⚪ ⚪ ⚪ ⚪
Video Adapter Mounting on C1x ⚪ ⚪ ⚪ ⚪
C-mount 0.5x ⚪ ⚪ ⚪ ⚪

Additional information

Weight N/A
Dimensions N/A
Modelo

YR0232, YR0233, YR0234, YR0235
