Operation Lamp YR02115 // YR02123

Manufacturer: Kalstein

Description

  • Osram LED bulbs.
  • 50000 hours bulb life.
  • Light focus controlled by the sterile handle.
  • One button for max. illuminance.
  • Endo mode.
  • Optional adjustable color temperature.

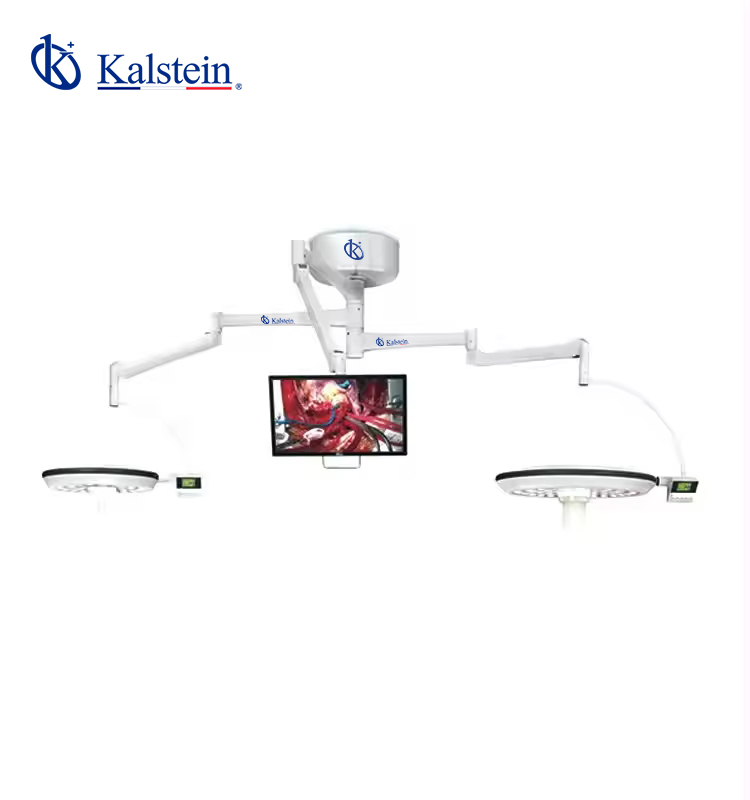

  • Build-in HD camera and monitor display.
Technical Specifications
Model YR02115 YR02116 YR02117 YR02118 YR02119 YR02120 YR02121 YR02122 YR02123
Intensity at 1m(Lux) 160000/160000 ≥160,000 / ≥160,000 160000/140000
Color Temperature (K) 4500±500 (3500-4500)±500 3500-5000
Color Rendering Index (Ra) ≥97 100≥RA≥85 Ra>95
Field diameter (mm) 180-300 100~280 120-300
Illumination depth (L1+L2)(mm) >1000 1500 1200
Intensity control 10%-100%
Type of intensity control Control panel
Type of field focusing control Sterilizable handle
Numbers of LEDs 176 90pcs 80pcs+80pcs 80pcs+48pcs
Lamp lifetime (h) >50000 50,000 >50,000
Bulb rated power 3.2V/1W
Voltage supply AC110-240V 50/60Hz
Minimum installation height (mm) 2600 2700

Additional information

Weight N/A
Dimensions N/A
Model

YR02115, YR02116, YR02117, YR02118, YR02119, YR02120, YR02121, YR02122, YR02123
