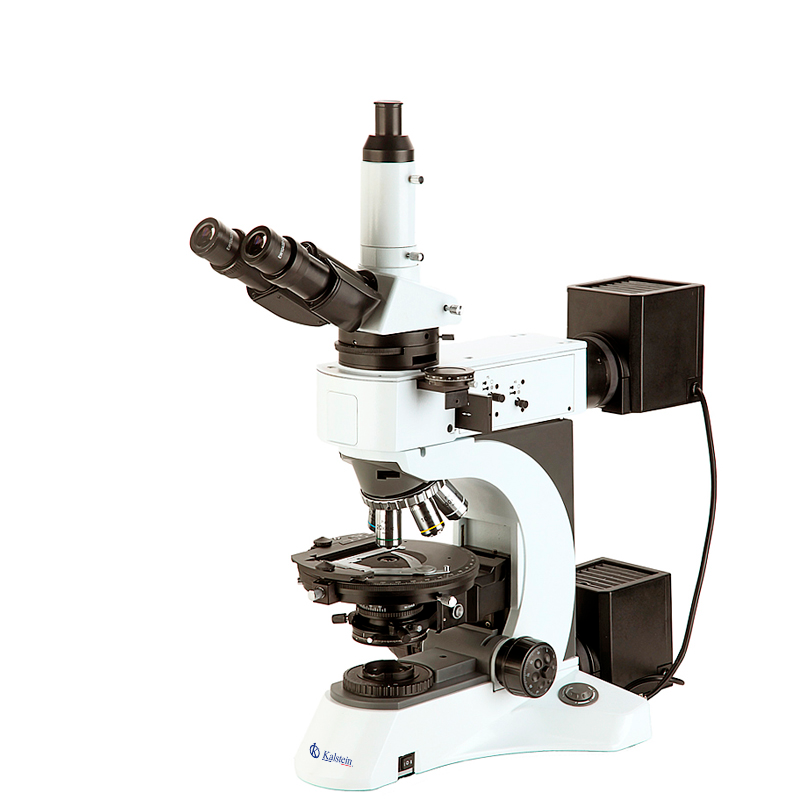

Polarizing Microscope YR0262 - YR0263
Polarizing Microscope YR0262 - YR0263 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Polarizing Microscope YR0262 - YR0263 is an advanced tool ideal for professionals in need of a high-precision polarizing microscope. With quintuple nosepiece center adjustability, and strain-free infinity plan objectives across a wide magnification range of 5x, 10x, 40x, and 100x, it is designed for detailed and versatile scientific study. The round stage, with a diameter of 170mm, is center adjustable, providing a stable platform for observation. Additionally, the analyzer includes a Bertrand lens, λ slip, 1/4λ slip, and a quartz wedge, essential for varied polarizing applications. Both transmitted and reflected light systems utilize adjustable halogen lamps, ensuring optimal visibility and clarity.
Market Price
Polarizing microscopes, such as the YR0262 - YR0263, typically range in price from $7800 to $8700, reflecting their advanced capabilities and essential role in precision scientific work. This range provides potential buyers with options depending on specific needs and budget considerations.
Frequently Asked Questions
What makes the YR0262 - YR0263 ideal for laboratory use? The superior optics and user-friendly adjustments make this microscope perfect for detailed laboratory analyses.
Is the illumination system efficient? Yes, it uses a 24V100W halogen lamp with adjustable brightness for both transmitted and reflected light, providing excellent visibility.
Advantages and Disadvantages
Advantages of the Polarizing Microscope include its high-resolution optical system, ease of use with its adjustable components, and the versatility offered by its comprehensive analyzer unit. It is, however, a high-investment tool which may not be necessary for non-specialist applications.
Product Use in the Field
This microscope is widely used in geology, mineralogy, and material sciences for identifying minerals and studying detailed material properties. Its precise focus and clarity allow researchers to conduct in-depth analyses and obtain reliable data.
Recommendations
It is recommended to keep the microscope clean and handle it with care to maintain its precision and longevity. Regular calibration and servicing ensure optimal performance.
Features
- Quintuple Nosepiece Center Adjustable
- LWD Strain-free Infinity Plan Objectives 5x10x40x100x
- Round Stage Dia.170mm Center Adjustable
- Analyzer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
- Transmit & Reflect Halogen 24V100W Brightness Adjustable
Technical Specifications
| Model | YR0262 | YR0263 | ||||
| Optical System | Infinity Optical System | |||||

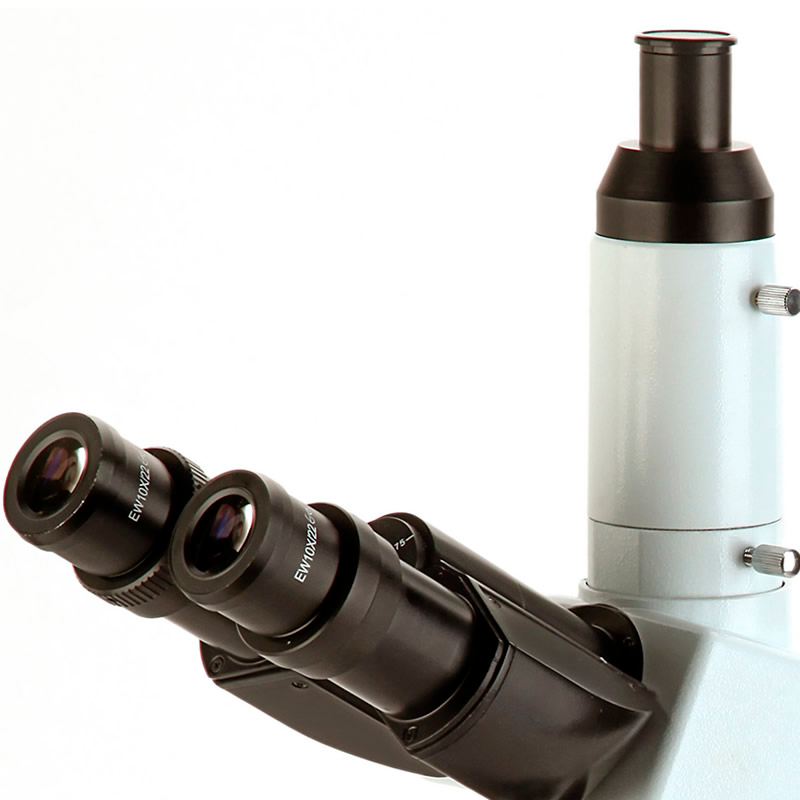

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |||||
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |||||
| Plan Eyepiece With Scale of Crosshair | ||||||
| Plan Eyepiece With Cross | ||||||
| Plan Eyepiece With Gridding | ||||||
| Nosepiece | Backward Quintuple Nosepiece | |||||
| Objective | Strainfree LWD Infinity Plan Achromatic Objective | 5x/0.12/∞/- W.D.15.5mm | ||||
| 10x/0.25/∞/- W.D.10mm | ||||||
| 20x/0.4/∞/0 W.D.4.3mm | ||||||
| 50x/0.75/∞/0 W.D.0.32mm | ||||||
| 100x/0.8/∞/0 W.D.2mm | ||||||
| Strainfree Infinity Plan Achromatic Objective | 40x/0.65/∞/0.17 W.D.0.54mm | - | o | |||
| 100x/1.25/∞/0.17 W.D.0.13mm | - | o | ||||

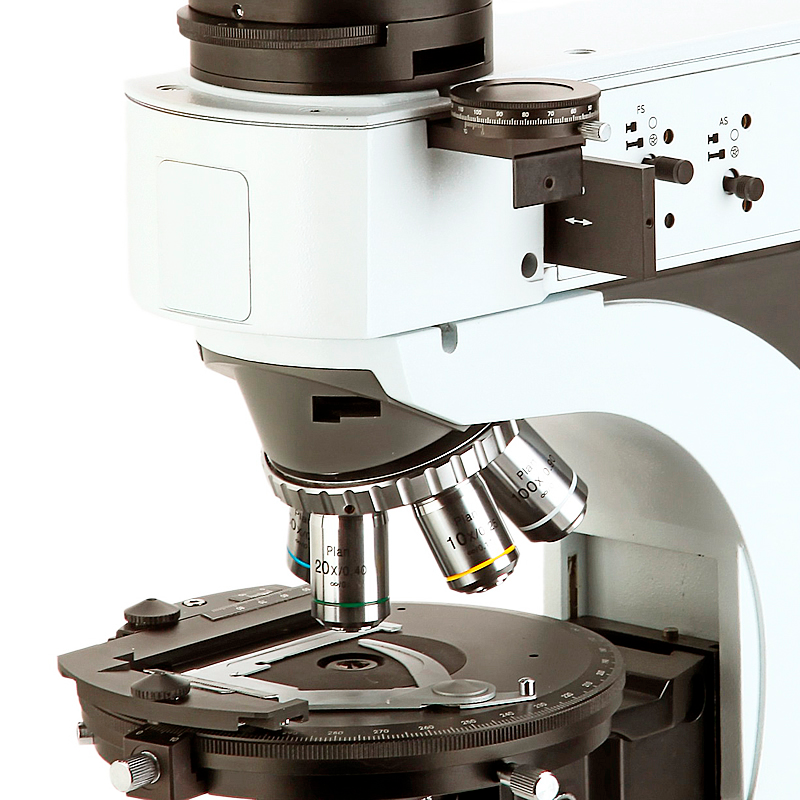

| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |||||
| Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) | |||||
| --Switch Between Orthoscopic And Conoscopic Observation | ||||||
| --Bertrand Lens Postion Adjustable | ||||||
| --Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||||||
| Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |||||
| 360° Scale, Minimum Division 1° | ||||||
| Minimum Reading 6' By Means of Vernial Scale | ||||||
| 45° Click Stop Knob | ||||||
| Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |||||

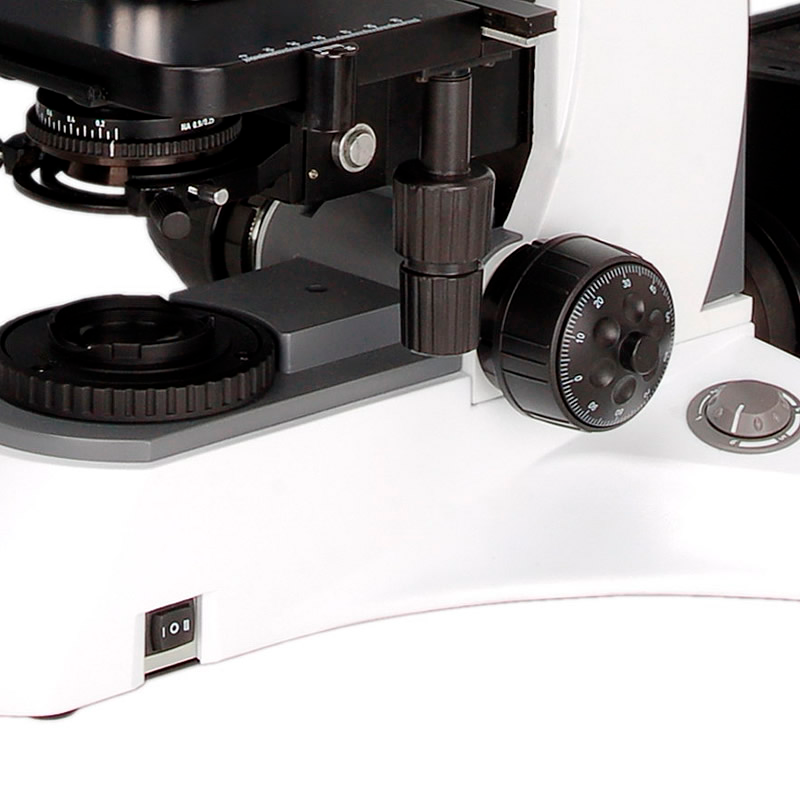

| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |||||
| Polarizer | For Reflect: Fixed Polarizer | |||||
| For Transmit: 360° Rotatable Polarizer, 0° Position Adjustable | - | o | ||||
| Illumination | Reflect Light Halogen Lamp 24V100W, Brightness Adjustable | |||||
| Transmit Light Halogen Lamp 24V100W,Brightness Adjustable | - | o | ||||
| Blue Filter, Dia.45mm | ||||||
| Reflect, Reflect & Transmit Polarizing Microscope Optional Accessories | ||||||
| Stage | Attachable Stage, Moving Range 30*40mm | YR0263-op1 | ||||
| Filter | For | Netural Filter ND25, Dia.45mm | YR0263-op2 | |||
| Transmit Light: | Netural Filter ND6, Dia.45mm | YR0263-op3 | ||||
| For | Blue Filter, Dia.25mm | YR0263-op4 | ||||
| Reflect Light: | Netural Filter ND25, Dia.25mm | YR0263-op5 | ||||
| Netural Filter ND6, Dia.25mm | YR0263-op6 | |||||
| Adapter | Photo Adapter | YR0263-op7 | ||||
| C-Mount 1.0x | YR0263-op8 | |||||
| C-Mount 0.5x | YR0263-op9 | |||||
Technical specifications

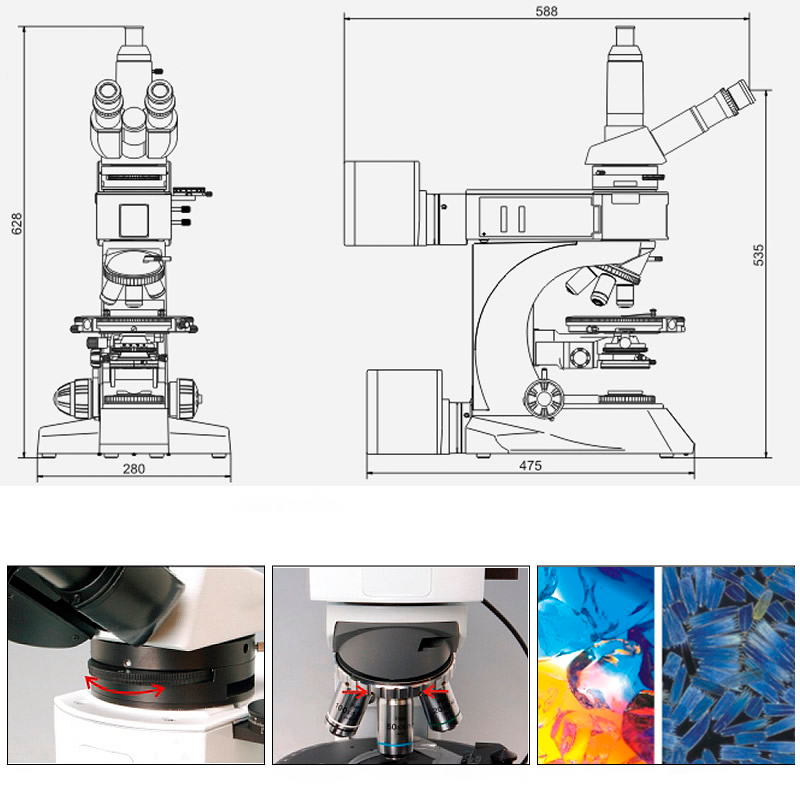

| Dimensions | L 46.3 × W 38.4 × H 83 cm |
|---|---|
| Weight | 16.5 kg |
| Manufacturer | Kalstein |
