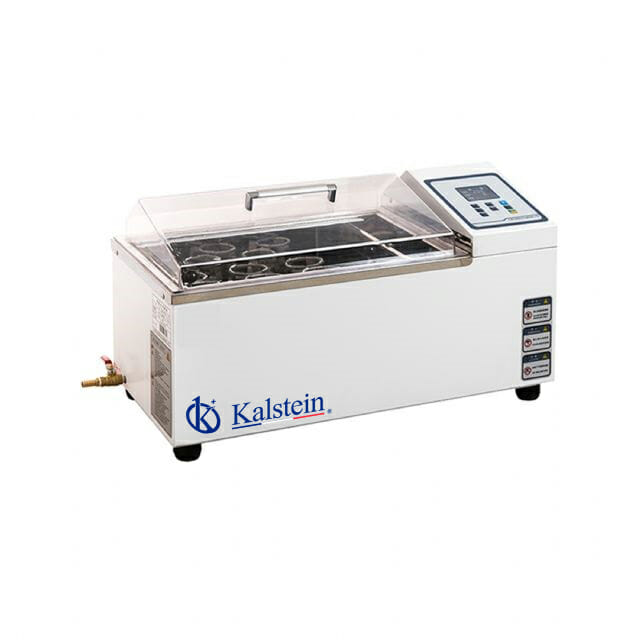

Shaking Water Bath YR030L

Manufacturer: Kalstein

Product Description

YR030L shaking water bath apply to various large and medium-sized instituations, medical, petrochemcial industry, health and epidemic prevention, environmental monitoring and scientific research departments for biochemical biological ,cell, bacteria,etc.

Features:
  1. Ultra silence design keeps it working quiet.
  2. Brushless motor cuts down the noise, lengthen the service life, and stabilize ther torque output without maintenance.
  3. Integrated LCD controller, high accuracy sensor, and precise temperatura control.
  4. Over-temperature alarm prevents experiment temperatura from exceeding setting.
  5. Convenient PID control makes it run with data set and time set, automatic changes of rotation direction, automatic shutdown, automatic data backups for power outage, quick start and stop, and motor shaft lock protection.
Technical Specification
Model YR030L
Function
Operating Temp Range RT~100°C
Tem. Resolution Ratio 0.1°C
Tem. Motion ± 0.1 °C
Tem. Uniformity ± 0.2 °C
Reciprocal Oscilation Amplitude 16 or 24 mm (Ex-factory is 16 mm)
Reciprocating Frequency Range 20~180 (r/min)
Reciprocating Frequency Accuracy ± 1 rpm
Structure
Water Tank Mirror stainles steel
Outer Shell Cold rolling steel electrostatic spraying exterior
Upper Cover Mirror stainles steel
Insulating Layer Polyurethane
Heater Stainles Steel Heater
Driving Mode Crankshaft + double link + four wheels
Shelf Mirror stainles steel
Power Rating 1.5 kW
Controller
Tem. Control Mode
LCD PID Intelligent control
Reciprocating Control Mode
Setting Mode Touch button setting
Tem. Display Mmode
LCD Display
Speed Display Mode
Timer 0~9999 min
Operation Function Fixed value operation, timing function, auto stop, quickly stop start
Temperature Sensor Pt100
Speed Sensor Hoare
Additional Function Deviation correction, menu keys locked, power-off memory
Safety Device Over temperature alarm, menu locked, water full or shortage protection, Motor shaft lock protection
Specification
Water Tank Size (W*L*H)(mm) 500*310*200
Exterior Size (W*L*H)((mm) 828*360*425
Packing Size (W*L*H)(mm) 908*440*505
Spring Shock Basket Size (mm) 395*250
Shock Basket Largest Single Size (ml/piece) 100 ml*12 / 250*8 / 500*6
Inside Volume 31 L
Shock Basket Bearing 5 kg / layer
Current Rating (50Hz) AC 220V / 6.8A
NW/GW (kg) 20 / 30
Accesories Water bath flask seat, tube rack

Additional Information

Weight 40 kg
Dimensions 95 × 55 × 60 cm
