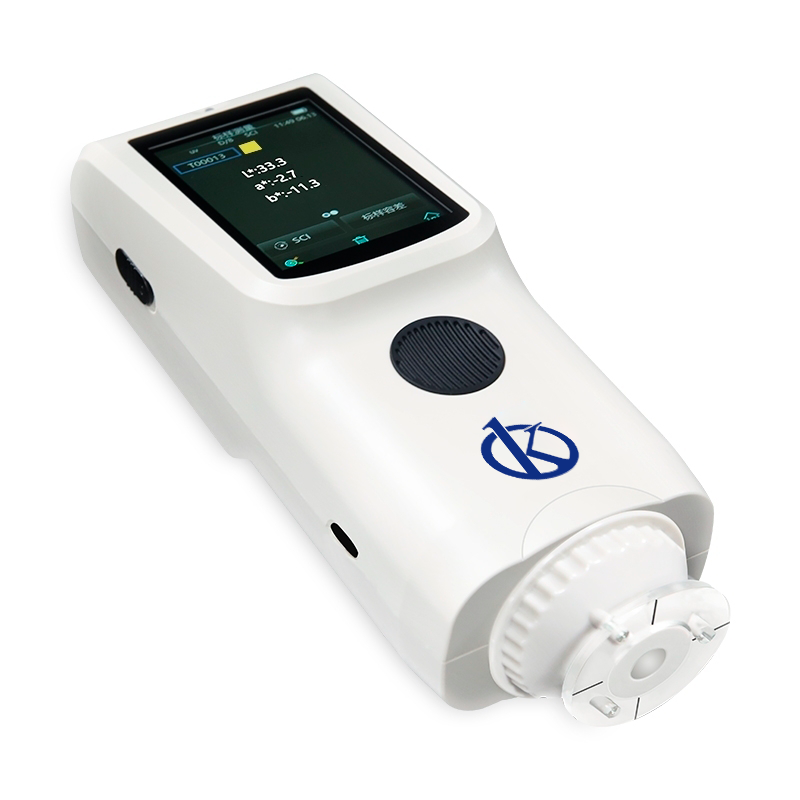

Spectrocolorimeter YR05518 – YR05519

ManufacturerKalstein

Description

YR05516 // YR05519 is Kalstein using autonomous core technology research and development of A portable light color difference instrument, is the high level in spectral architecture color difference instrument, in addition to ensure accurate relative Δ E at the same time, also to ensure the accuracy of the absolute value of L, A and B for A long time, anytime, anywhere can pass the international standards and national standards of measurement. Using the built-in silicon photodiode array (double row 24) sensors, import the whiteboard, repetitive Δ E * ab easily control within 0.1, both measurement speed and convenience of operation, no need to connect the computer or software can quickly judging color difference measurement, 8 mm diameter meet plastic electronics, paint and ink, textile printing and dyeing, printing, such as the ceramic industry accurate color difference of production and the quality control.
Product Features
  •  Φ 8 mm diameter measurement, 10 ° Angle, observer can meet most of the industry customer requirements;
  • Combination of full-spectrum LED light source, plane grating and true color capacitive touch screen, with a high starting point;
  • Silicon photodiode array (24 groups in double columns), display precision 0.1, good repeatability;
  • The light source life is more than 3 million measurements in 5 years, and the lithium battery takes 6,000 measurements within 8 hours, which can be recharged repeatedly and has a long battery life;
  • Quick data search, analysis and comparison with 500 data storage samples and 10,000 samples.
Technical Specifications
Model YR05518 YR05519
Optical Geometry D/8(diffused illumination, 8-degree viewing angle) D/8(diffused illumination, 8-degree viewing angle)
SCI Mode SCI Mode
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere Size Φ40mm Φ40mm
Light Source Combined full spectrum LED light source Combined full spectrum LED light source
Spectrophotometric Mode Flat Grating Flat Grating
Senso Silicon photodiode array (double row 24 groups) Silicon photodiode array (double row 24 groups)
Wavelength Range 400~700nm 400~700nm
Wavelength Interval / /
Semiband Width 10nm 10nm
Measured Reflectance Range L:0~100; reflectivity:The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm) L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelengths specified by the user (default: 550nm)
Measuring Aperture Φ8mm Φ8mm
Specular Component SCI SCI
Color Space CIE LAB,XYZ,Yxy,LCh CIE LAB,XYZ,Yxy,LCh
Color Difference Formula ΔE*ab,ΔE*00 ΔE*ab,ΔE*00
Other Colorimetric Index / /
Observer Angle 10° 10°
Illuminant D65,A,F2(CWF) D65,A,F2(CWF)
Displayed Data Reflectivity (the user specifies the reflectivity at 3 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset Reflectivity (the user specifies the reflectivity at 1 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy Display 0.1, storage 0.01 0.1
Measuring Time About 1.5s About 1.5s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.08 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Chromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.4 MAV/SCI, Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles) (Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times) Single Measurement, Average Measurement(2-99times)
Locating Method Stabilizer cross position Stabilizer cross position
Dimension L*W*H=81X71X214mm L*W*H=81X71X214mm
Weight About 460g About 460g
Battery Li-ion battery, 6000 measurements within 8 hours Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB USB
Data Storage Standard 500 Pcs, Sample 10000 Pcs Standard 500 Pcs, Sample 10000 Pcs
Language Simplified Chinese, English, Traditional Chinese Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment  -20~50℃, 0~85%RH (no condensing)  -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture Power Adapter, USB Cable, User Guide, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture
Optional Accessory USB Micro Printer, Powder Test Box USB Micro Printer, Powder Test Box
Notes Technical parameters are only for reference, subject to the actual sale of the product Technical parameters are only for reference, subject to the actual sale of the product

Additional information

Weight 2 kg
Dimensions 38 × 13 × 31 cm
Model

YR05518, YR05519
