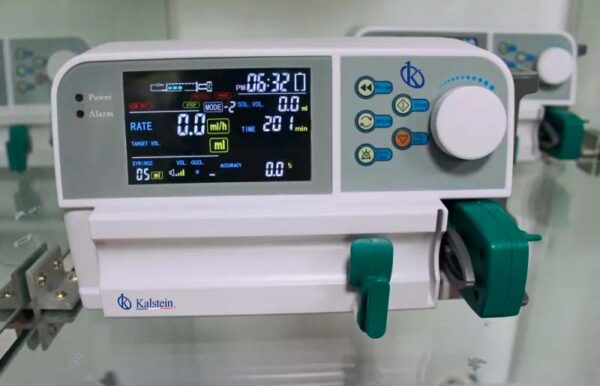

Syringe Pump YR05165

Manufacturer: Kalstein

Description

  • 4.3 inches large LCD screen, with different colors show.
  • With LCD backlight, can use in various lighting conditions.
  • Time display, convenience for show and time memory.
  • Simultaneous display: Time, Battery, Injection State, Mode, Speed, Injection volume and time, Syringe size, Alarm sound,Block,Accuracy, Body weight, Durg, Dose and Liquid amount.
  • Remote control function, can adjust speed, time, volume and drug amonut directly, easier operation, save doctor and nurse’s time.
  • Advanced technology, mainly based on Linux system, more safe and steady. All technical are designed by ourselves, further update is available.
  • Multi injection modes: V mode, T mode, and body weight mode.
  • Alarm: including all abnormal conditions alarm system, with visible, audible and details show on the screen.
Technical Description
Model YR05165
Rate range 50ml syringe: 0.1~1800ml/h (0.1~999.9ml/h step:0.1ml/h)
30ml syringe: 0.1~900ml/h (1000~1800ml/h step: 0.1ml/h)
20ml syringe: 0.1~600ml/h
10ml syringe: 0.1~300ml/h
5ml syringe: 0.1~150ml/h
Volume limit 0.1~1999.9ml (step: 0.1ml)
Accumulated volume 9999.9ml (step: 0.1ml)
Accuracy Within ± 2%
KVO Rate: 0.1~5ml/h (adjustable, step:0.1ml/h)
Fuse F1AL/250V(“F” indicate fast, low breaking, capacity) 2 pcs (installed inside pump)
Power Supply 110~220V, 50Hz, Built-in rechargeable battery, 11.1V, capacity≥2000mAh;
After charging 10 hours, it can work at 5ml/h (GB9706.27 average rate) about 4 hours.
Purge Rate 50ml syringe: 1800ml/h (Bolus rate: 1200ml/h)
30ml syringe: 900ml/h (Bolus rate: 600ml/h)
20ml syringe: 600ml/h (Bolus rate: 400ml/h)
10ml syringe: 300ml/h (Bolus rate: 200ml/h)
5ml syringe: 150ml/h (Bolus rate: 100ml/h)
Alarm Liquid volume nearlu alarm, Liquid injection
Finish Alarm, Doses injection finished alarm, occlusion alarm, syringe off alarm, syringe non-interlaced correctly alarm, low
battery, low battery alarm.
Power off alarms.
Occlusion
Threee levels for Occlusion: high, Middle, Low
Working surrounding Temperature: +5~+40°C
Humidiy: 20%~ 90%
Storage surrounding
Temperature: -30°C ~ +50°C
Humidity: ≤ 95%
Atmosphere Pressure 860hPa ~ 1060hPa
Safe Class
I type CF devices, Internal Battery, Intermittent
Load continues working
Size: 282mm(L) * 210mm(W) * 148mm(H)
Weight: 2.2kgs
Accessories Pump, Remote Controller, Power line, User manual, Guarantee card, Certificate

Additional information

Weight 4 kg
Dimensions 23 × 24 × 31 cm
