Thermal Cyclers YR06070

Manufacturer: Kalstein

Product Description

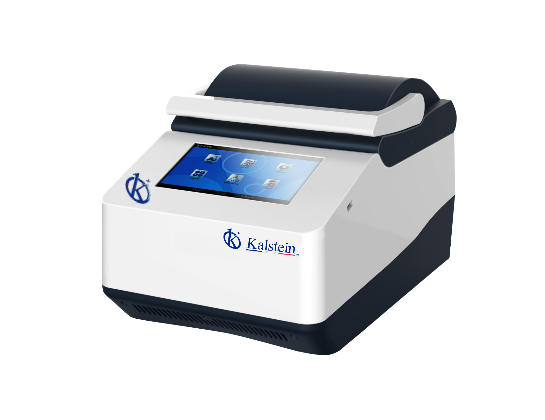

The YR06070 PCR thermal cycler is easy to operate thanks to its 7-inch color LCD touch screen. Taking advantage of its excellent thermal block, it offers you homogeneous and accurate temperatures, fast and precisely controlled ramp rates, and fast and reproducible PCR cycles. In addition, programming is remarkably simple and intuitive. Thanks to all these advantages, it is your ideal PCR instrument.

Product Features


7-inch touch screen operation:

With the 7-inch LCD touch screen, it can be operated quickly by simple one-touch commands. Compact design that takes up little space and is easy to move.

Temperature gradient control:

Block features remarkable gradient technology to ensure ramp rates are identical in both gradient and normal modes. The performance-optimized assay traverses a maximum range of 40℃ through 12 gradients.

Intuitive software design:

The software’s intuitive design and user-friendly interface make it easy even for first-time users. No specialized training is required.

Flexibility to share experiment protocols:

1000 experiment protocols can be saved. Protocols can also be easily shared between different ones via USB hard disk. Personal protocols can be saved on your USB flash drive to quickly set up your own experiment on any YR06070.

Power failure protection design:

The unique power-off protection function can save all set configurations after power off, and allow the experiment to continue when power on.

Technical Specifications
Model YR06070
Reaction volume 0-100μL
Thermo block Aluminum
Compatible Consumables 0.2mL single tube, 0.2mL 8 strip tubes, 0.2mL 96-well plate(skirted, semi-skirted, unskirted)
Temperature control range of the block 4℃-99℃
Temperature control mode Tube mode & Block mode
Heating technology of the block Peltier
Gradient block 12 row
Gradient temperature span 1℃-40℃
Gradient temperature range 30℃-99.9℃
Lid temperature range 40-110℃
Temperature uniformity ±0.2℃
Block temperature accuracy ±0.1℃
Heating rate ≥ 3.5℃/s
Cooling rate ≥2.5℃/s
Interfaces USB, Ethernet
Dimensions(W*D*H) 260mm*400mm*260mm
Weight 11Kg
Power supply AC 100-240V, 50-60Hz
Max. Power consumption 600VA
Running noise <55dB


Additional Information

Weight 14 kg
Dimensions 50 × 36 × 36 cm
