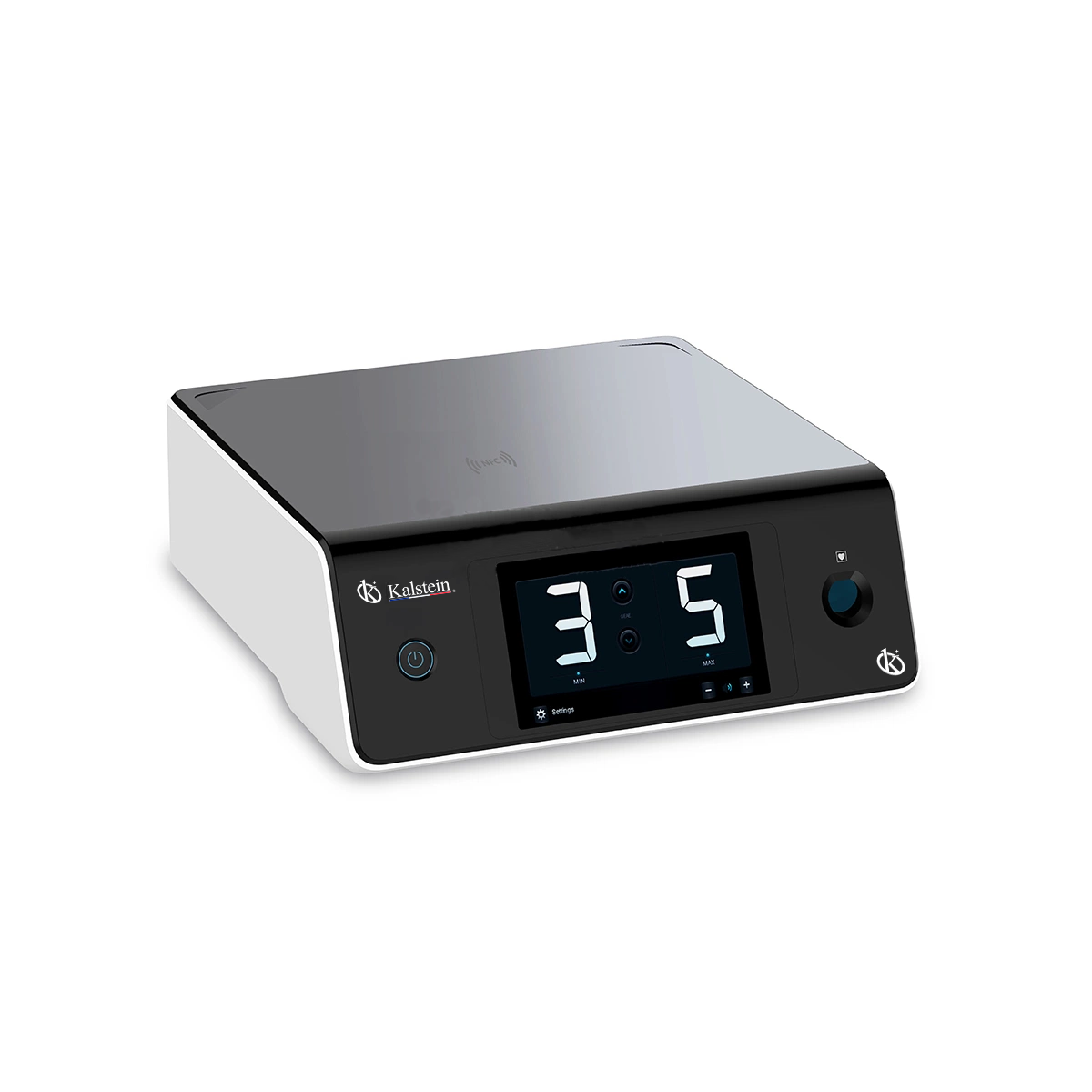

Veterinary Ultrasonic Scalpel YR06129

ManufacturerKalstein

Description

All blood vessels less than 3mm is safely sealed during operation, and the maximum is up to 5mm.

With two output modes: MAX mode and MIN mode.

With foot switch and manual switch control modes.

Adopting quad-core CPU control and current closed-loop control technology, output amplitude is stable.

Adopting constant current tissue adaptive control technology, tracking tissue changes and outputting constant current to ensure constant amplitude.

Transducer automatic detection functions ensure high-efficient, stable and safe output.

Full touch screen control, activate and automatically clear the error prompt.

Intelligent monitoring functions such as opening and closing of jaw tools, connection reliability, pressure overload alarm, temperature overload alarm, etc.

Technical Specifications
Model YR06129
Amplitude 20um, 40um, 60um, 80um, 100um
Current 180mA, 230mA, 280mA, 330mA, 380mA
Voltage AC 190~240V
Frequency 55.5KHz±1%
Maximum input current 3.15A
Input power 690VA
Maximum amplitude 100um±1%
Maximum output current 380mA±1%
Fuse T3.15A, L250VP
Size (L*W*H) 285mm*315mm*100mm

Additional information

Weight 13 kg
Dimensions 55 × 45 × 29 cm
