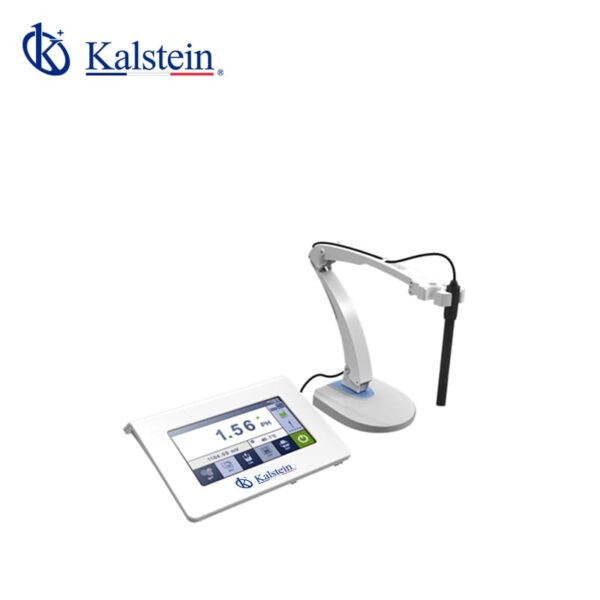

YR01823 Benchtop pH Meter

Manufacturer: Kalstein

Product Description

Precision benchtop pH meter, 1 to 5 points calibration, Automatic Temperature Compensation, setup menu contains 9 options, accuracy: 0.002pH.

pH Mode

• Precision benchtop pH meter is equipped with a large backlit LCD display.

• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.

• Automatic electrode diagnosis shows the pH slope and offset.

• Automatic temperature compensation ensures accurate readings over the entire range.

• Calibration due alarm prompts user to calibrate the meter regularly.

ORP Mode

• 1 point offset calibration allows adjusting the displayed value to a known standard.

• Relative and absolute millivolt modes ensure the reliable ORP measurements.

Other Features

• Auto-Read function senses and locks the measurement endpoint.

• Setup menu allows setting the pH buffer group, number of calibration points, resolution,

stability criteria, date and time, auto-power off, etc.

• Reset function automatically resumes all settings back to the factory defaults.

• Expanded memory stores or recalls up to 500 data sets.

• USB communication interface for data transfer and timed interval readings.

Model YR01823
pH
Range -2.000 to 20.000pH
Resolution 0.001, 0.01, 0.1pH, selectable
Accuracy ±0.002pH
Calibration Points 1 to 5 points
pH Buffer Options USA, NIST, DIN, 2 custom buffers
ORP
Range ±1999.9mV
Resolution 0.1, 1mV, selectable
Accuracy ±0.2mV
Calibration Points 1 point
Measurement Modes Relative or absolute mV
Temperature
Range 0 to 105°C/32 to 221°F
Resolution 0.1°C/0.1°F
Accuracy ±0.5°C/±0.9°F
Offset Calibration 1 point
Calibration Range Reading ±10°C
General Specifications
Temperature Compensation 0 to 100°C/32 to 212°F, manual or automatic
Stability Criteria Low or high
Calibration Due Alarm 1 to 31 days or off
Memory Stores up to 500 data sets
Output USB communication interface
Connector BNC, 3.5mm jack socket
Display Custom LCD (125×100mm)
Power DC5V, using AC adapter, 220V/50Hz
Dimensions 210(L)×188(W)×60(H)mm
Weight 1.5kg
Order Code Accessories
YR01823
E201-BNC pH electrode
TP-10K temperature probe
pH4.01/7.00/10.01 buffer sachets
USB cable
DC5V power adapter
YR01823-1
P11 glass pH electrode
TP-10K temperature probe
pH4.01/7.00/10.01 buffer sachets
USB cable
DC5V power adapter

Additional Information

Weight 1,5 kg
Dimensions 32 × 27 × 20 cm
Modelo

YR01823, YR01823-1
