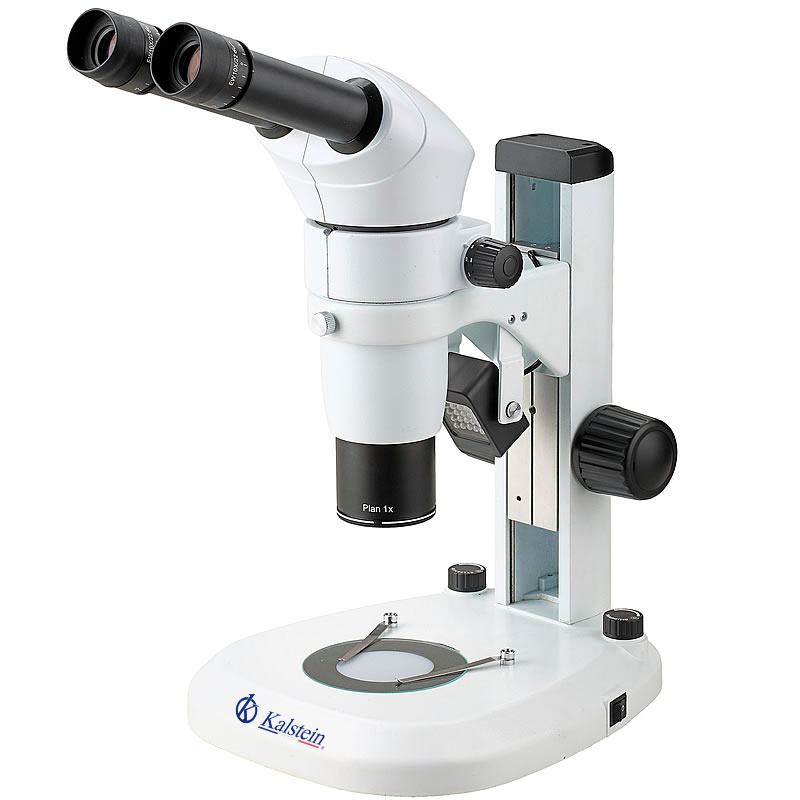

Zoom Stereo Microscope YR0246 // YR0248

ManufacturerKalstein

Description

  • Parallel Optical System, Module Design to Add Function Easily
  • Large Zoom Ratio Up to 1:10 With Tilting Head 0°-35° Viewing Angle Adjustable for User
  • Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
  • Complete Accessories Include Polarizing, Dark Field, Fluorescent Attachment
  • Plan Apochromatic Objective 0.5x Optional
Technical Specifications
Model YR0246 YR0247 YR0248
Optical System Parallel Optical System, Module Design to Add Function Easily

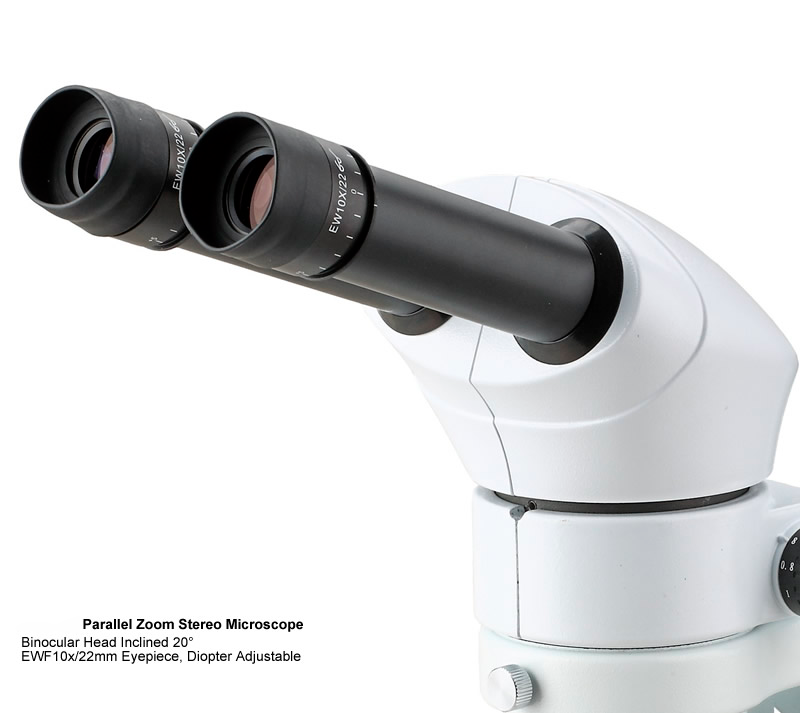

Head Binocular Head 20° Inclined
Titling Head 0°-35° Viewing Angle Adjustable for User o o o
Eyepiece Extra Wide Field Eyepiece EWF10x/22mm,Diopter Adjustable,Interpupillary 55-75mm
Zoom Body 0.8~5.0x, Zoom Ratio 1:6
0.8~6.4x, Zoom Ratio 1:8
0.8~8.0x, Zoom Ratio 1:10

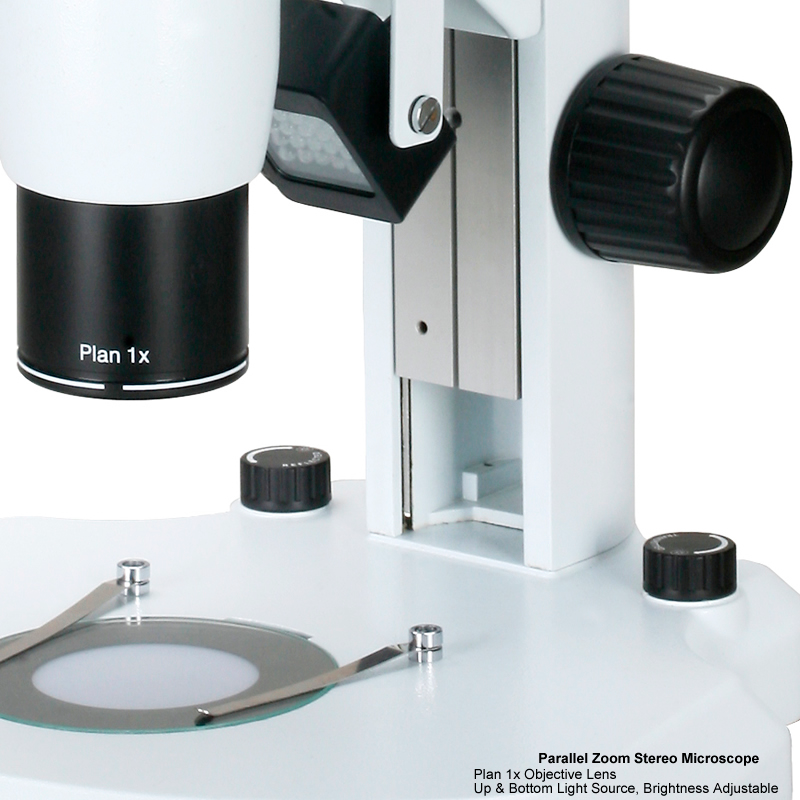

Auxiliary Lens Plan Achromatic Lens 1.0x
Working Distance 78mm
Focusing Coarse Focusing Konb, Range 105mm
Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm , Focusing Mount Inner Dia. 76mm
Illumination Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
Model Cata. No.
Head Titling Head 0°-35° Viewing Angle Adjustable for User YR0248-op1
Model Change to A23.1005
Eyepiece WF15x/16mm YR0248-op2
WF20x/12mm YR0248-op3
WF30x YR0248-op4
Auxiliary Lens Plan Apochromatic Lens 0.5x YR0248-op5
Plan Achromatic Lens 1.0x YR0248-op6
Plan Achromatic Lens 2.0x YR0248-op7
Achromatic Lens 0.3x YR0248-op8
Achromatic Lens 0.5x YR0248-op9

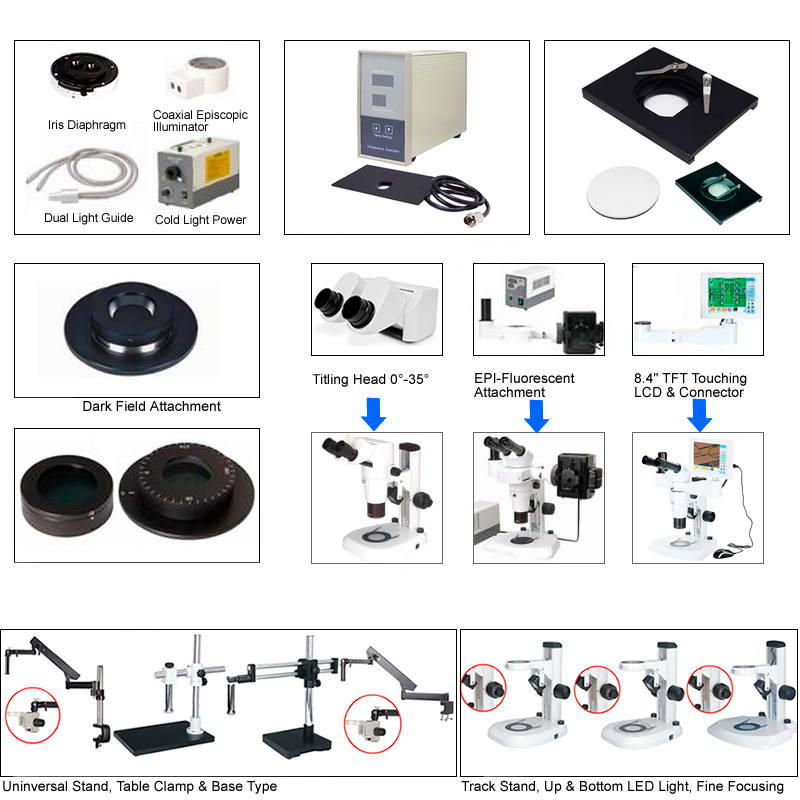

Illumination Coaxial Illumination Set: YR0248-op4
–Cold Light Power Supplier,
–Dual Light Guide,
–Coaxial Episcopic Illuminator,
–Iris Diaphragm
Iris Diaphragm YR0248-op5

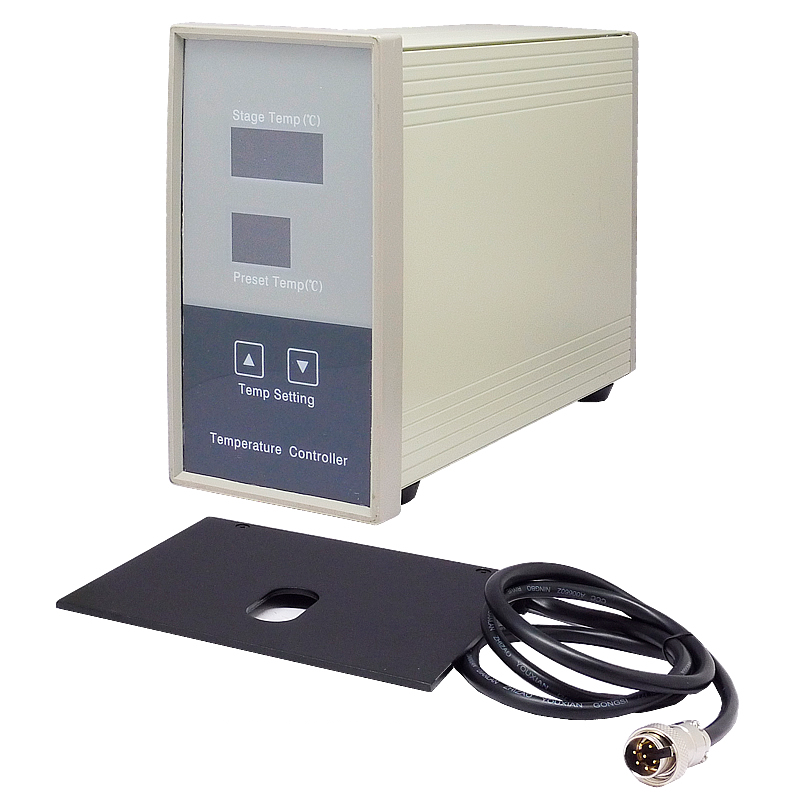

Working Stage Temperature Control Stage YR0248-op6

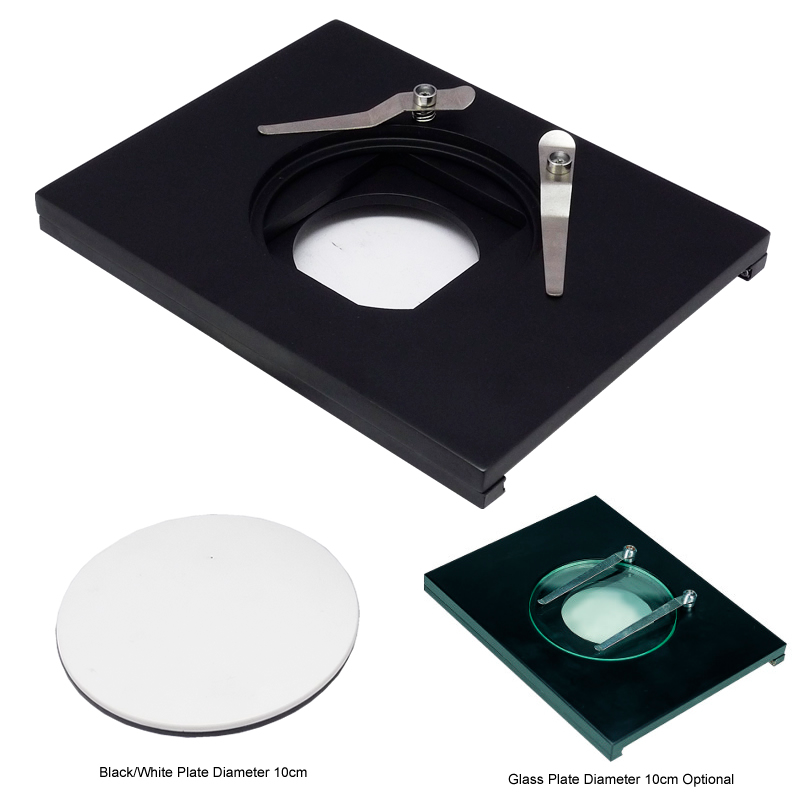

Movable Working Stage YR0248-op7
StandClick to See Universal Table Stand YR0248-op8
YR0248-op9
Track Stand, Transmit & Reflect Light Source YR0248-op10
With Coarse & Fine Focusing Optional, Model -F, Like A54.1019-F YR0248-op11
YR0248-op12
YR0248-op13
YR0248-op14

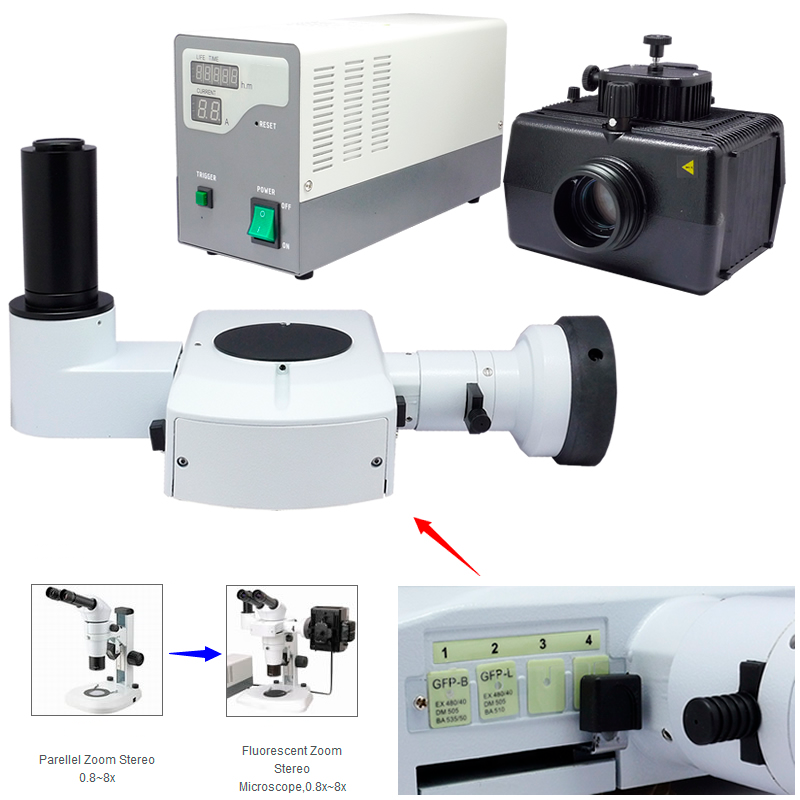

Fluorescent EPI-Fluorescent Attachment For Stereo Microscope YR0248-op15
Dark Field Dark Field Attachment For Stereo Microscope YR0248-op16
Polarizing Simple Polarizing Attachment For Stereo Microscope YR0248-op17
LCD Monitor 8.4″TFT Touch Screen LCD Monitor & Connector YR0248-op18

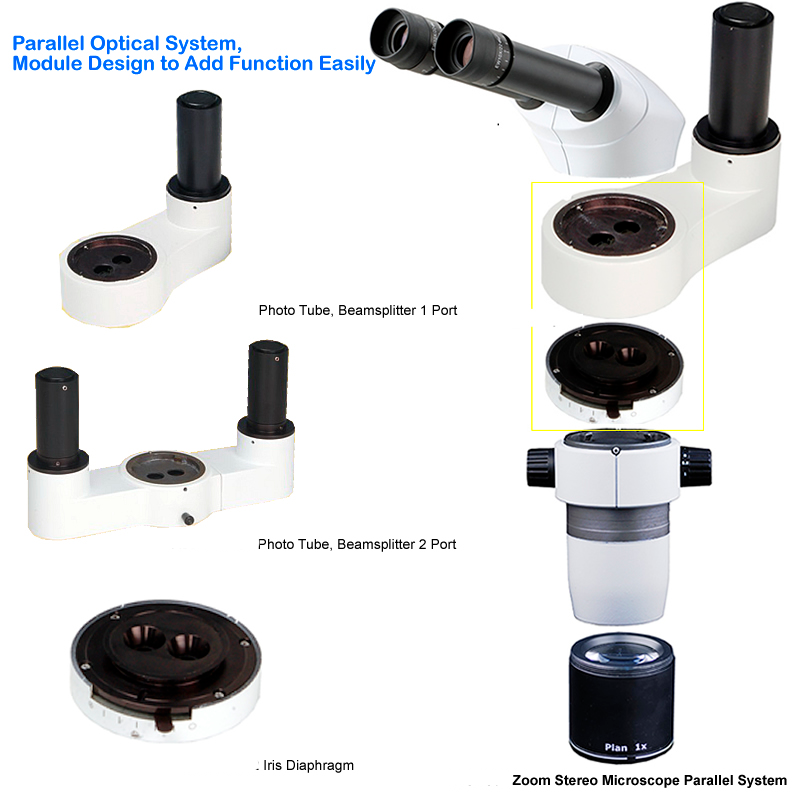

Adapter Photo Tube, Beamsplitter 1 Port YR0248-op19
Photo Tube, Beamsplitter 2 Port YR0248-op20
Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera YR0248-op21
C-mount 0.5x YR0248-op22
C-mount 1.0x YR0248-op23

Additional information

Weight 9,5 kg
Dimensions 36,6 × 31,1 × 65,3 cm
Model

YR0246, YR0247, YR0248
