Description
Suitable for various animal surgical scenarios, widely used in pet hospitals, animal clinics, scientific research institutions, animal laboratories, animal husbandry schools, wildlife rescue stations, training institutions, agricultural identification stations, etc.
Turbo-driven design, no need of high-pressure air source, just an oxygen concentrator to make it work
Features
- Ventilation parameters are calculated automatically by setting animal’s weight only
- Light and easy to move, save animal hospital space
- With breathing mode VCV, PCV, SPONT, etc. to meet different clinical requirements
- With SPONT mode, auto ventilation while animal have no spontaneous breathing
Technical Specifications

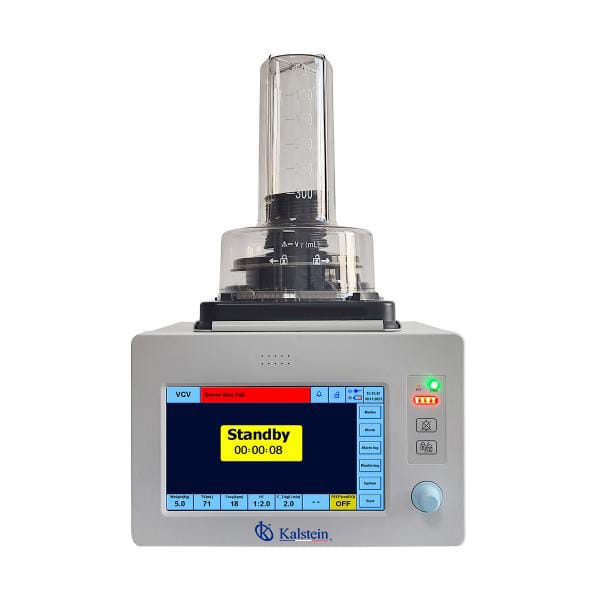

| Model | YR06104 |
| Tidal volume (TV) | 20-1500ml |
| Breathing rate (Freq) | 1-150bpm |
| Spontaneous breathing rate (Freq_Spont) | 0-150bpm |
| Ratio of inhalation and exhalation (I:E) | 9.9:1-1:9 adjustable |
| Hold time | 0-50% |
| Flow trigger sensitivity (F_Tring) | 0.5-20L/min, OFF |
| Pressure Trigger Sensitivity (P_Tring) | -1-20cmH2O, OFF |
| End-expiratory pressure | 3-20cmH2O, OFF |
| SIMV frequency (Fre_SIMV) | 2-60bpm |
| Inspiratory time (T_Insp) | 0.1-12s |
| Pressure support (PS) | 0-60cmH2O |
| Inspiratory pressure (T_Insp) | 0-60cmH2O |
| Tidal volume of expiratory | 0-2500ml |
| Tidal volume of inspiratory | 0-2500ml |
| Minute Ventilation (MV) | Display range: 0-99L/min Use range: 0-25L/min |
| Spontaneous minute ventilation (MV_Spont) | Display range: 0-99L/min Use range: 0-25L/min |
| Peak pressure (Ppeak) | 0-80cmH2O |
| Platform pressure (Pplat) | 0-80cmH2O |
| Mean pressure (Pmean) | 0-80cmH2O |
| Inhaled oxygen concentration (FiO2) | 15-100% |
| End-expiratory pressure (PEEP) | 0-20cmH2O |
| Driving gas pressure (Press_Drive) | 0-900kpa |
| Paw-T waveform | Pressure monitoring range: 0~120cmH2O; X-axis: 0~10s |
| Flow-T waveform | Y-axis:-1800~180L/min X-axis: 0~10s |
| V_T waveform | Z-axis:0~2000L/min X-axis:0~10s |
