PCR Thermal Cyclers
PCR thermal cyclers are essential instruments in molecular biology laboratories, facilitating the amplification of DNA and RNA. These devices play a critical role in research and diagnostic applications, providing precise temperature control for denaturation, annealing, and extension phases of PCR.
When selecting a PCR thermal cycler, it is crucial to consider factors such as throughput, temperature uniformity, and user-friendly interfaces. By investing in high-quality thermal cyclers, laboratories can ensure reliable results and enhance their research capabilities.
What you should know before selecting a pcr thermal cyclers and making an investment
Key factors to consider
When choosing a PCR thermal cycler, important factors include the sample capacity, heating and cooling rates, and the types of PCR protocols supported. Advanced features such as gradient functionality and real-time monitoring can also enhance experimental flexibility and accuracy.
It is advisable to evaluate the manufacturer's support, warranty, and service options, as these aspects can significantly impact long-term usability and reliability of the equipment in a laboratory setting.
Market price range
The price range for PCR thermal cyclers varies significantly depending on features and specifications. Entry-level models may start around several thousand dollars, while advanced systems with extensive capabilities can exceed tens of thousands.
Understanding your laboratory's specific requirements will help in selecting a model that offers the best balance between features and budget, ensuring that you invest wisely without compromising on quality.
Value for money
Investing in a PCR thermal cycler should be assessed in terms of its long-term value rather than just the initial price. High-quality systems may have a higher upfront cost, but their reliability and performance can lead to better results and reduced costs over time.
Additionally, consider the operational costs, such as energy consumption and maintenance, which can impact the overall value of the thermal cycler in a laboratory environment.
Expected lifespan based on use and maintenance
The lifespan of PCR thermal cyclers can vary widely based on usage frequency and maintenance practices. Regular preventive maintenance and proper handling can extend the operational life of the equipment, ensuring that it continues to perform optimally.
Choosing a model with a solid warranty and support can also provide peace of mind, knowing that any potential issues can be addressed promptly and effectively, safeguarding your investment.
PCR THERMAL CYCLERS KALSTEIN
Discover pcr thermal cyclers for your laboratory
Explore our range of high-quality PCR thermal cyclers designed to meet the diverse needs of modern laboratories. Each model is engineered for precision, reliability, and user-friendliness, ensuring optimal performance in your molecular biology applications.
Real-Time PCR YR06689 // YR06691
The YR06689 // YR06691 family represents excellence in real-time PCR systems, specifically designed to meet the experimental requirements of high-leve
View productReal-Time Quantitative PCR System YR06248 – YR06249
The Real-Time Quantitative PCR System YR06248 – YR06249 is a highly advanced tool designed for precise and sensitive PCR analysis. It features cutting
View productThermal Cyclers YR01871
The Termocycler YR01871 is an advanced automated nucleic acid extraction system designed to provide high-precision and efficient results for a wide ra
View productOur best-selling pcr thermal cyclers
Real-Time PCR YR06689 // YR06691
Design and Technology (or Functionality)
The YR06689 // YR06691 systems integrate patented technologies that ensure consistent and precise results:- Superior Scanning System: It utilizes a high-brightness, long-life, maintenance-free LED light source with detection via photodiodes (PDs). By performing the scan from the top, interference is minimized and the signal is maximized.
- Peltier Thermal Control: Reaches heating rates of up to 6.1 °C/s, which drastically reduces the total time of PCR protocols.
- Operational Flexibility: Dual control mode allows the equipment to be operated autonomously via its 10.4-inch touch screen or through a direct PC connection.
- Experiment Protection: The automatic resumption function after power failures ensures that valuable data and samples are not lost in the event of a supply failure.
- Advanced Multiplexing: Capability to detect up to 6 different targets in a single well (on E and T models), optimizing reagent use and time.
Frequently Asked Questions (FAQ)
- What is the main difference between the model YR06689, YR06690, and YR06691? The difference lies primarily in the fluorescence channels. The YR06689 and YR06691 models feature 6 channels (ideal for complex clinical diagnostics and FRET), while the YR06690 offers 4 channels, covering the most common PCR applications.
- Which consumables can I use? They are compatible with standard 0.2 ml 96-well plates, 8-tube strips, and individual tubes (transparent, frosted, or white).
- How are result reports managed? The software includes reserved templates and allows for the creation of customized experiment reports that can be exported or printed directly following quantification or melting curve analysis.
Advantages and Disadvantages (Pros and Cons)
Advantages:- Scanning Speed: Only 7 seconds for a full plate reading.
- Thermal Stability: Exceptional temperature uniformity of ±0.1 °C ensures reproducible results between wells.
- Autonomy: Large internal storage capacity for up to 1000 results without needing a PC connection.
- Versatility: Supports applications for absolute and relative quantification, SNP analysis, and melting curve analysis.
- Bench Space: With a width of 555 mm for some models, it requires considerable workspace compared to portable units.
- Energy Consumption: Requires 900 VA; therefore, the use of a stabilized UPS is highly recommended.
Field Use and Recommendations
These units are ideal for third-level hospitals, Centers for Disease Control (CDC), and pharmaceutical laboratories. They are the ultimate tool for detecting infectious pathogens, cancer biomarker research, and food safety testing. Practical Tip: To ensure optical precision, always use high-quality optical consumables and ensure there is no condensation on the tube caps before starting the thermal cycle.Technical Specifications
| Parameter | characteristics | ||
| Model | YR06689 | YR06690 | YR06691 |
| Sample Throughput | ene-96 | ene-96 | ene-96 |
| Fluorescence Channels | 6 | 6 | 4 |
| Scanning Time | 7 s | 7 s | 7 s |
| Light Source | LED (Top scanning) | LED (Top scanning) | LED (Top scanning) |
| Detector | Photodiode (PD) | Photodiode (PD) | Photodiode (PD) |
| Heating Method | Peltier | Peltier | Peltier |
| Heating Rate | >6.1 C/s | >6.1 C/s | >6.1 C/s |
| Cooling Rate | >5.0 C/s | >5.0 C/s | >5.0 C/s |
| Temperature Uniformity | ±0.1 C | ±0.1 C | ±0.1 C |
| Temperature Accuracy | ≤0.1 C | ≤0.1 C | ≤0.1 C |
| Gradient Range | 1 C - 40 C | 1 C - 40 C | 1 C - 40 C |
| Control Screen | 10.4" Touch Screen | 10.4" Touch Screen | 10.4" Touch Screen |
| Internal Storage | 1000 results | 1000 results | 1000 results |
| PC Operating System | Win 7/10/11 | Win 7/10/11 | Win 7/10/11 |
| Power Consumption | 900 VA | 900 VA | 900 VA |
| Net Weight (kg) | 30 kg | 30 kg | 30 kg |
| Dimensions (LxWxH) | 55,5x47,5x48,4 cm | 55,5x47,5x48,4 cm | 35,5x47,5x48,4 cm |
| Consumables | 0.2ml Plate/8-tube strip | 0.2ml Plate/8-tube strip | 0.2ml Plate/8-tube strip |
Detailed analysis of pcr thermal cyclers for an effective and safe choice

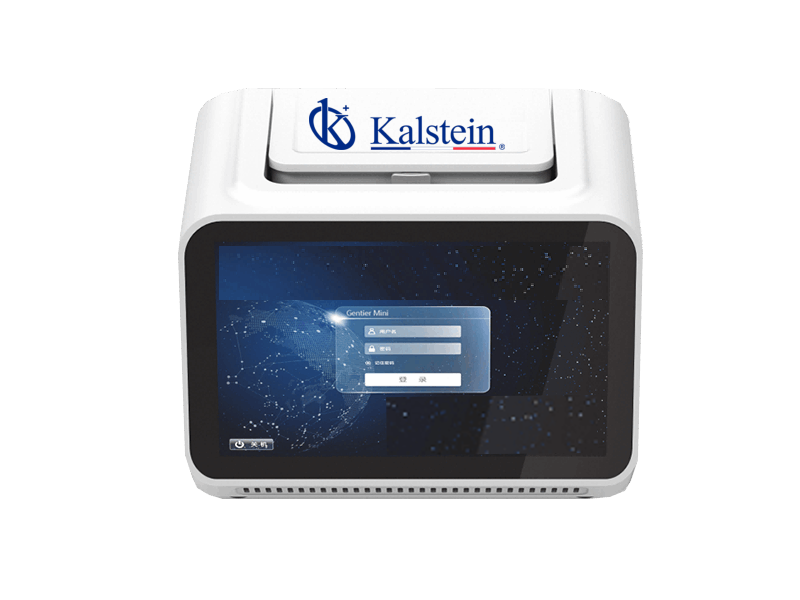

Revolutionizing Laboratory Work: A Deep Dive into Kalstein PCR Thermal Cyclers
PCR Thermal Cyclers from Kalstein When it comes to cutting-edge laboratory technology, Kalstein remains a name synonymous with quality and innovation. One of their standout offerings is undoubtedly the PCR Thermal Cycler line. Designed with precision and convenience in mind, these devices enhance the efficiency of polymerase chain reactions, which are pivotal in molecular biology labs worldwide.
High-Precision Genetic Amplification with PCR Thermal Cyclers
PCR thermal cyclers are essential instruments in molecular biology laboratories for carrying out the polymerase chain reaction (PCR), a technique that has revolutionized genetics, biomedicine, and scientific research. With these devices, it is possible to amplify DNA sequences precisely and quickly, allowing for everything from pathogen detection to the identification of genetic mutations. In this article, we will delve into the details of PCR thermal cyclers, their technical features, and how Kalstein models stand out in the market.
PCR Thermocyclers for Speed in DNA Amplification for Diagnostic Laboratories
Kalstein’s PCR thermocyclers are essential for laboratories specializing in molecular biology and genetics, where precision and speed are required for DNA amplification.

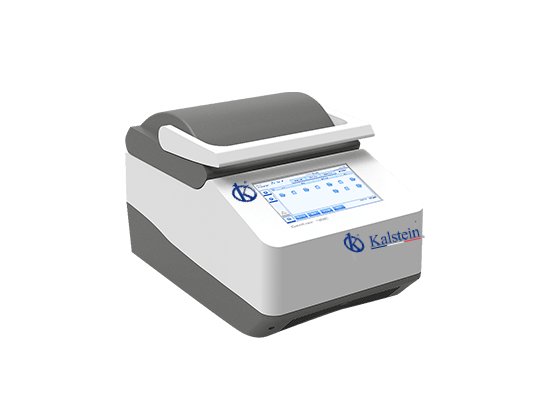

High-Efficiency PCR Thermocyclers for DNA Amplification
The polymerase chain reaction (PCR) technique is fundamental in molecular biology for amplifying DNA fragments. PCR thermocyclers are essential equipment in this process, as they allow precise and controlled replication of DNA in research, diagnostic, and development laboratories. In this article, we will explore PCR thermocyclers in detail, focusing on Kalstein brand models, their technical features, the benefits they offer, and their comparison with other leading brands on the market.
pcr thermal cyclers offer catalog
Guides about pcr thermal cyclers
Complete guides to choose pcr thermal cyclers

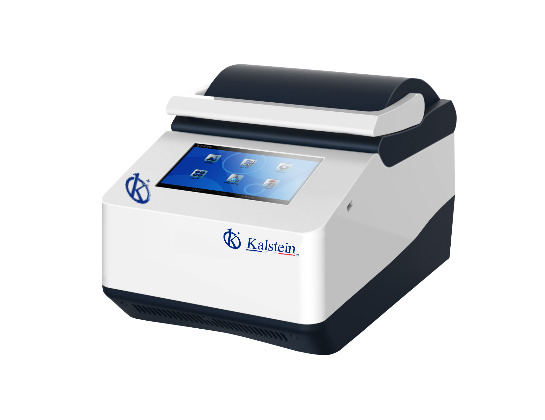

Improving Accuracy in Experiments with PCR Thermocyclers
In scientific disciplines like genetics, having accurate results is fundamental. These results are achieved through the use of highly specialized equipment, such as PCR thermocyclers. These devices play an essential role in molecular resear
Leer más

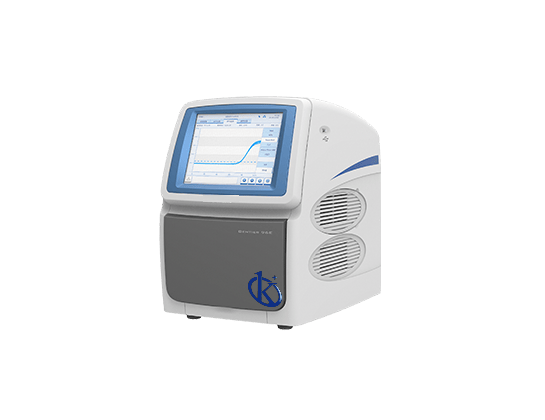

PCR Thermocyclers: The Indispensable Advance for Genetic Research
The PCR Thermocycler (Polymerase Chain Reaction) is essential in any genetic laboratory since it plays a critical role in amplifying DNA sequences. The terms "purchase," "sale," "manufacturer," and "price" are usual in acquiring this equipm
Leer más

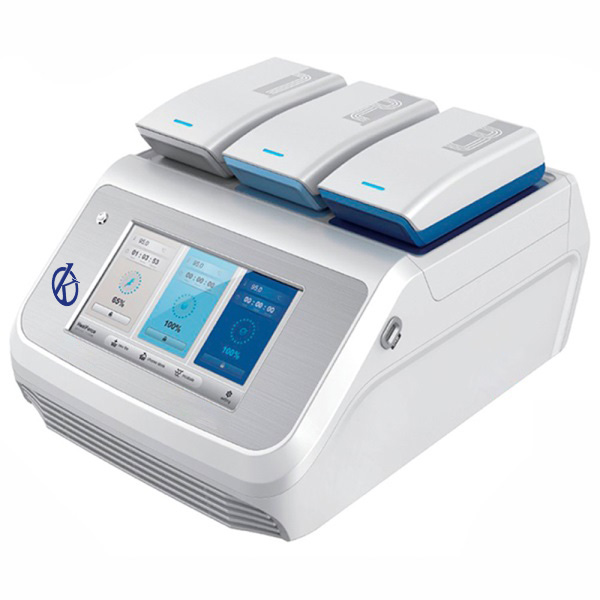

PCR thermocycler: characteristics and uses
A thermocycler is a laboratory equipment also called a thermal sequencer. This equipment allows to obtain the amplification of DNA molecules by PCR (Polymerase Chain Reaction) technique, through cyclical changes of temperatures that generat
Leer másCutting-Edge Thermal Cyclers: Kalstein YR06070 vs Bio-Rad T100
In the realm of modern molecular biology, thermal cyclers have become indispensable tools, facilitating the amplification of DNA sequences through the polymerase chain reaction (PCR). Today, we delve into the nuances of two prominent therma
Leer másFrequently asked questions about PCR Thermal Cyclers
How to know the prices of PCR Thermal Cyclers?
To know the price of PCR Thermal Cyclers, please send us an email with your request through the contact form AQUI.
What are the delivery times for PCR Thermal Cyclers?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of PCR Thermal Cyclers?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for PCR Thermal Cyclers?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for PCR Thermal Cyclers?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
